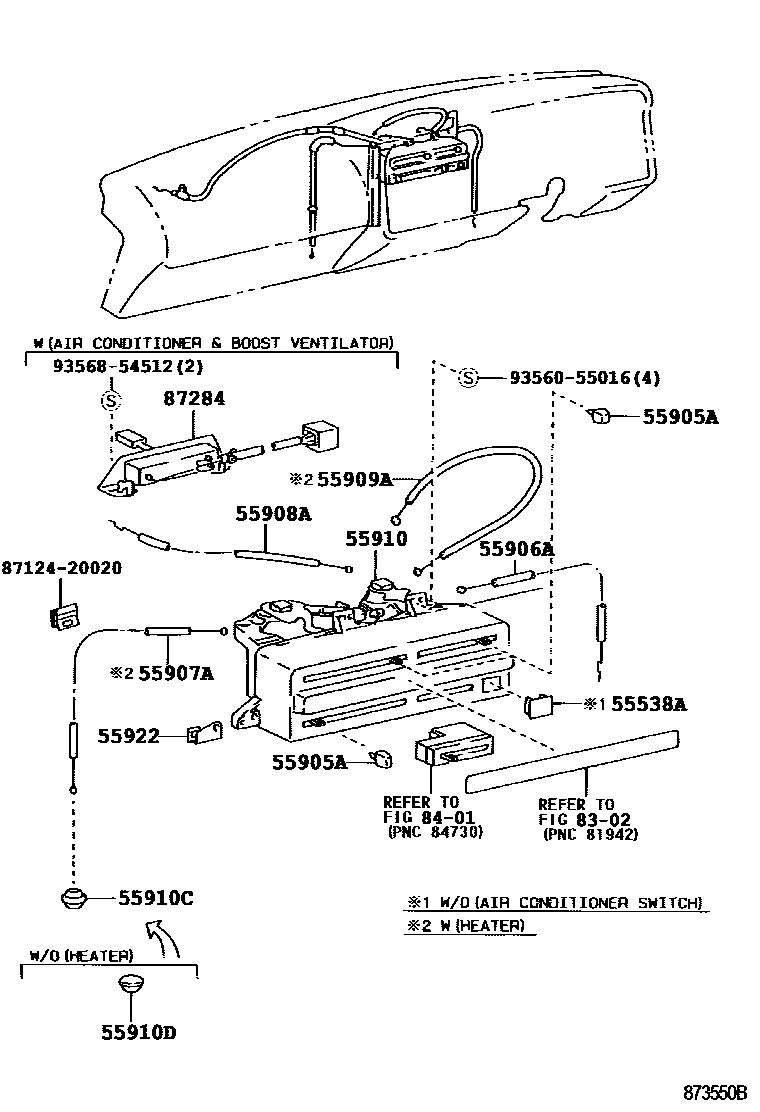

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1FRONT CONTROL 0002 1REAR CONTROL 0003 1REAR CONTROL 0004 1FRONT DUCT-W(HEATER) & W(B/V)0005 1FRONT DUCT-W(HEATER) & W(B/V)0006 1FRONT DUCT-W/O(HEATER) & W/O(0007 1FRONT DUCT-W/O(HEATER) & W/O(0008 1REAR HEATER DUCT 0009 1REAR COOLER DUCT(DEALER OPT) 0011 1REAR COOLER DUCT(DEALER OPT) 0012 1REAR COOLER DUCT(MAKER OPT) 0013 1REAR COOLER DUCT 0014 1REAR COOLER DUCT

55538ACOVER, COOLER SWITCH HOLE

main55538-22060iRZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH113..4D..STD..EFI;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..GL,STD199411-200108

55905AKNOB, HEATER CONTROL

main55905-22260×2iLH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD198908-199411

BLOWER & TEMP

main55905-22280×2iRZH103..RHD..EFI;RZH105,115..STD..CIS;RZH113..4D..STD..EFI;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184..(03S,10S,15S)..GL;LH10#,11#,125,166,176,RZH102,104,112,114,125,135,153199603-200108

MODE,FRS/REC

main55905-95J04×2iLH102,104,105,11#,RZH10#,11#..LHD198908-199603

BLOWER & TEMP

main55905-95J05×2iLH102,104,105,11#,RZH10#,11#..LHD198908-199603

MODE,FRS/REC

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-26010iLH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD198911-199411

main55906-95J03iLH102,104,105,11#,154,164,166,17#,RZH10#,11#,155..LHD199907-200508

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-26090iLH112,113,172..RHD..SRF..STD;LH102,103,114,115,125,184,RZH102,103,104,11#,125..RHD199508-199907

main55907-26170iRZH112..4D..06S199907-200108

main55907-95J08iRZH105,115..STD..CIS;RZH103,105,115..LHD..CBR;LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD198908-200008

main55907-95J09iLH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD198908-199411

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-26040iLH103,11#,125,172,184,RZH102,103,104,11#,125,135,153..RHD199608-199907

main55908-26050iLH102,104,105,11#,166,174,176,RZH10#,11#..LHD199808-199907

main55908-26080iLH102,104,105,11#,166,17#,RZH10#,11#..LHD; RZH102..03S199907-200007

main55908-26100iRZH112..4D..06S199907-200208

main55908-26110iLH102,104,105,11#,154,164,166,17#,RZH10#,11#,155..LHD200007-200508

main55908-95J01iLH102,103,11#,125,RZH102,103,104,11#,125..RHD199411-199608

main55908-95J02iLH102,104,105,11#,RZH10#,11#..LHD198908-199808

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-95J01iLH102,103,11#,125,RZH102,103,104,112,113,114,125..RHD199411-199508

main55909-95J02iLH174..LHD..STD;LH102,104,105,11#,164,166,172,176,RZH10#,11#,155..LHD199907-200508

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-26050iLH102,103,11#,125,RZH102,103,104,112,113,114,125..RHD199502-199508

W(HEATER)

main55910-26080iRZH103..03S..GEN200108

W(HEATER)

main55910-26090iLH103..4D..GEN;RZH103..03S..GEN; LH172..06S..GL199907-200011

main55910-26100iRZH102..03S199907-200008

W(HEATER)

main55910-26110iRZH102..03S199907-200008

main55910-95J09iLH102,103,11#,125,RZH102,103,104,112,113,114,125..RHD199411-199502

W(HEATER)

main55910-95J11iLH102,103,11#,125,RZH102,104,112,114..RHD..GEN199411-199508

main55910-95J12iLH102,104,105,11#,174,RZH10#,11#..LHD..(GL,SGL,STD)..(GCC,GEN)198908-199907

main55910-95J23iLH102,104,105,11#,166,176,RZH10#,11#..LHD198908-199907

W(HEATER)

55910CGROMMET(FOR HEATER CONTROL CABLE)

main90480-13013iRZH112..LHD;LH172..GL..DEFI;RZH112..RHD..SP;LH172,174..(03S,06S,15S)..STD;LH10#,11#,125,16#,176,184,RZH10#,113,114,115,125,155199907

55910DPLUG, HOLE(FOR HEATER CONTROL CABLE HOLE)

main90950-01112iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;RZH113..LHD..STD;LH10#,11#,RZH104,105,112,114,115..(GL,STD)..(GCC,GEN)198908-199411

55922BRACKET, HEATER CONTROL BASE

main55922-95J00iRZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD198908-200008

main55922-95J01iRZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN;LH102,103,11#,125,RZH102,103,104,112,114,115,125,135,153..RHD199411-200108

8302INDICATOR

→ Go to FIG 83-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

87284RESISTOR SUB-ASSY, VARIABLE

main88032-22100iLH103..06S;RZH113..RHD..GEN;LH113,RZH103..RHD..03S..GEN; LH113..06S;LH103..03S..GEN;LH112,114,115,RZH102,104,112,114..RHD; LH172,RZH103..STD..GEN199808-199907

DEALER OPTION; W(DUAL AIR CONDITIONER W/HEATER)

main88032-22110iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

W/O HEATER

main88032-95J03iRZH102..GL;LH104,105,114,115,125,166,17#,RZH103,104,105,114,115..4D..SG..5F; RZH125;LH125..4FC199808-199907

W(DUAL AIR CONDITIONER W/O HEATER)

8712420020CLAMP, HEATER

main87124-20020

9356055016

main93560-55016

9356854512

main93568-54512

16 parts on this diagram · 13 diagrams in section
