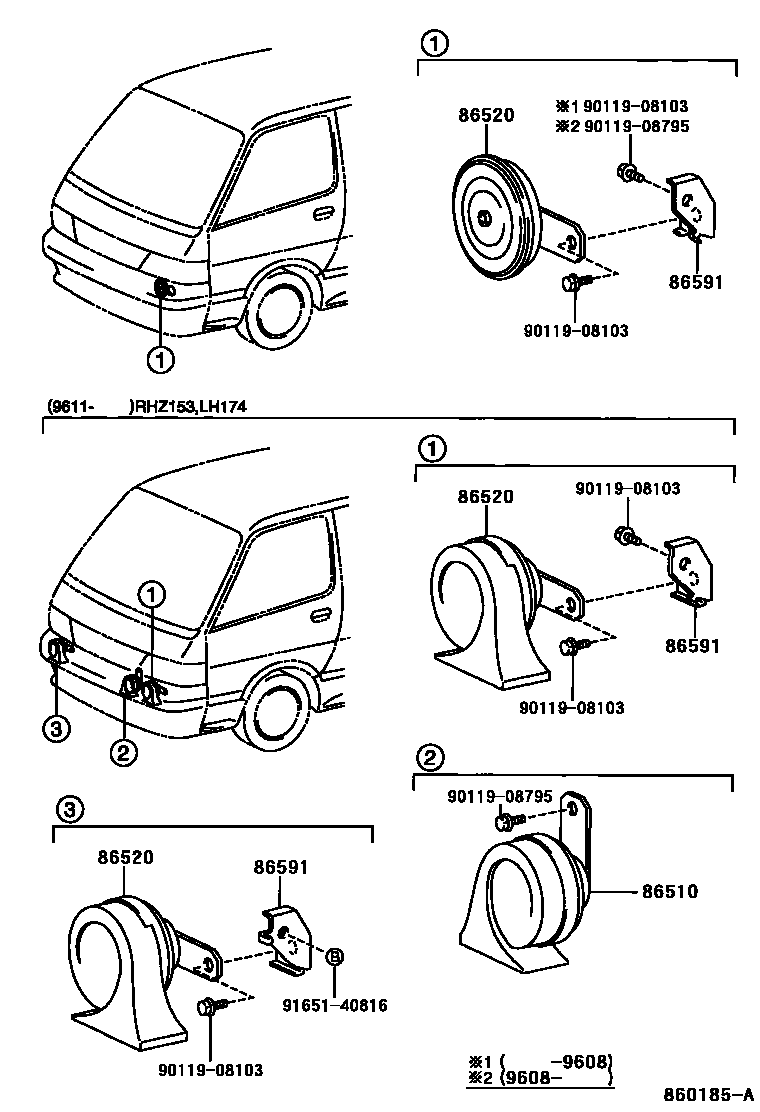

HORN

0001 1 0002 1

86510HORN ASSY, HIGH PITCHED

main86510-26050iLH174,RZH153199611-199907

main86510-26080iLH154,RZH15#..03S,10S,11S199907-200208

DOUBLE HORN

main86510-26100iRZH155..CIS200208-200408

DOUBLE HORN

86520HORN ASSY, LOW PITCHED

main86520-12220iRZH102..RHD;RZH104,112..4F;RZH102..LHD..4F;LH10#,11#,125,RZH103,113,114,125198908-199108

MARUKO

main86520-12640iRZH102..RHD;RZH104,112..4F;RZH102..LHD..4F;LH10#,11#,125,RZH103,113,114,125198908-199108

DENSO

main86520-12660iLH112,RZH113..DX;LH104,112,114,RZH104,112,114..CIS199411-199808

MARUKO

main86520-12670iLH113,115,RZH105,113,115..GCC; LH115,RZH103,104,112,114..LHD..(SGL,STD)..GEN199608-199808

DENSO; MIDDLE EAST SPEC,DENSO

main86520-12680iLH105,113,RZH105,113,115..GCC;LH115,RZH103,104,112,114..LHD..(GCC,GEN)199308-199608

CHINA SPEC & W(NOISE FILTER),DENSO

main86520-13010iLH113,125,RZH102,103,104,112,114..(DX,SGL,STD)..(ARL,GEN);LH10#,112,114,115,RZH113,115,125..(03S,06S,12S,14S,15S)..(ARL,GEN)199510-199808

DENSO

main86520-26020iLH174,RZH153199611-199907

DENSO

main86520-26050iLH105,113,115,166,176,RZH105,113,115..CIS,GCC; RZH114..LHD..15S;RZH115..STD..GEN;LH102,104,11#,RZH102,104,105,112..LHD..(03S,06S,12S,15S)..GEN199808-199907

DENSO; NIGERIA SPEC,DENSO

main86520-26060iLH102,113,125,RZH103,104,105,112,114,135..GL199608-199808

DENSO

main86520-26070iRZH115..GEN..EFI;RZH104,105,114..GL;LH113,RZH102..LHD..STD..(CIS,GEN);LH102,105,112,115,RZH103,113,155..LHD..(06S,09S,12S,15S)..(CIS,GEN)199907-200508

main86520-26120iLH154,174,RZH115,15#..03S,10S,11S199907-200208

DOUBLE HORN,DENSO

main86520-26140iRZH103..03S..GEN200108

DENSO

main86520-26160iLH154,RZH15#..03S,10S,11S200208-200501

DOUBLE HORN,DENSO

main86520-95J13iRZH103,104,112,114..LHD..SG..GEN199508-199608

86591BRACKET, HORN

main86591-26020iRZH153199611-199907

main86591-26030iLH174199808-199907

9011908103

main90119-08103

9011908795

main90119-08795

9165140816

main91651-40816

6 parts on this diagram · 2 diagrams in section
