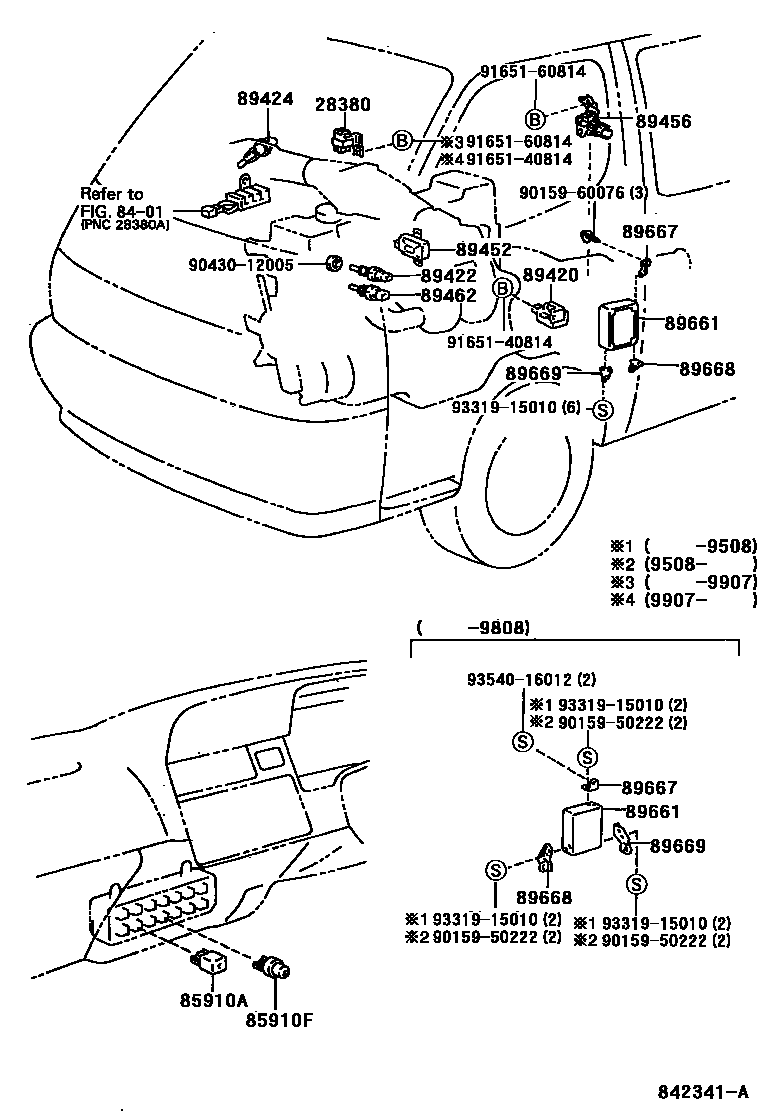

ELECTRONIC FUEL INJECTION SYSTEM

28380RELAY ASSY, FUEL PUMP

main28380-75010i1RZE..RZH102,112199508-199703

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-12010iRZH102,112,113..EFI199405-199608

main90987-02012iRZH103,105,113,115,125,135,15#..EFI199608-200508

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iRZH113..EFI199405-199608

main90987-02012iRZH103,105,113,115,125,135,15#..EFI199608-200508

89420SENSOR ASSY, VACUUM

main89420-26030iRZH102,103,112,113,135,153..EFI199405-199808

sub89420-26070

main89420-26070iRZH105,115..STD..CIS;RZH103,125,135,153..RHD;RZH113..4D..STD..(ARL,GEN)199808-200508

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iRZH103,105,113,115,125,135,15#..EFI199405-200508

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iRZH103,105,113,115,125,135,15#..EFI199405-200508

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12060iRZH102,103,112,113,135,153..EFI199405-199808

main89452-22090iRZH105,115..STD..CIS;RZH103,125,135,153..RHD;RZH113..4D..STD..(ARL,GEN)199808-200508

89456RESISTOR, VARIABLE

main89450-26030iRZH103,113,125..5F..ARL199808-200501

89462SWITCH, START INJECTOR TIME

main89462-20030iRZH113..EFI199405-199508

89661COMPUTER, ENGINE CONTROL

main89661-26080iRZH113..STD..EFI199408-199508

main89661-26260iRZH113..DX199405-199508

main89661-26370iRZH102,112..EFI199508-199703

main89661-26380iRZH113..LHD..EFI199508-199808

main89661-26420iRZH103,113,135,153..RHD..EFI199611-199808

main89661-26590iRZH113..06S..EFI199808-199907

HONG KONG SPEC

main89661-26590iRZH103,105,115,135,153..4D..(CIS,GEN)..EFI199808-199907

THAILAND SPEC

main89661-26591iRZH113..4D..06S199907-200501

THAILAND SPEC

main89661-26591iRZH113..4D..06S199907-200501

HONG KONG SPEC

main89661-26591iRZH113..DX;RZH113..5D..03S..EFI;RZH113..4D..GCC..EFI;RZH113..LHD..06S..EFI;RZH103,105,115,135,15#..(03S,09S,10S,11S,12S,15S)..(CIS,GCC,GEN)..EFI199907-200508

main89661-26600iRZH113..5F..ARL;RZH113..06S..EFI;RZH103,125..5F..STD199808-200501

NEW ZEALAND SPEC

main89661-26610iRZH103,113,125..4FC199808-199907

main89661-26620iRZH103,113..RHD..06S;RZH113..4D..03S..GEN199808-200501

main89661-26660iRZH103,113,125..4FC199907-200501

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-26010iRZH102,103,112,113,135,153..EFI199405-199808

main89667-26070iRZH103,105,113,115,125,135,15#..EFI199808-200508

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-26010iRZH102,103,112,113,135,153..EFI199405-199808

main89668-26070iRZH105,115..STD..CIS;RZH103,125,135,153..RHD;RZH113..4D..STD..(ARL,GEN)199808-200508

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-26010iRZH102,103,112,113,135,153..EFI199405-199808

main89669-26050iRZH105,115..STD..CIS;RZH103,125,135,153..RHD;RZH113..4D..STD..(ARL,GEN)199808-200508

9015950222

main90159-50222

9015960076

main90159-60076

9043012005

main90430-12005

9165140814

main91651-40814

9165160814

main91651-60814

9331915010

main93319-15010

9354016012

main93540-16012

21 parts on this diagram · 1 diagram in section
