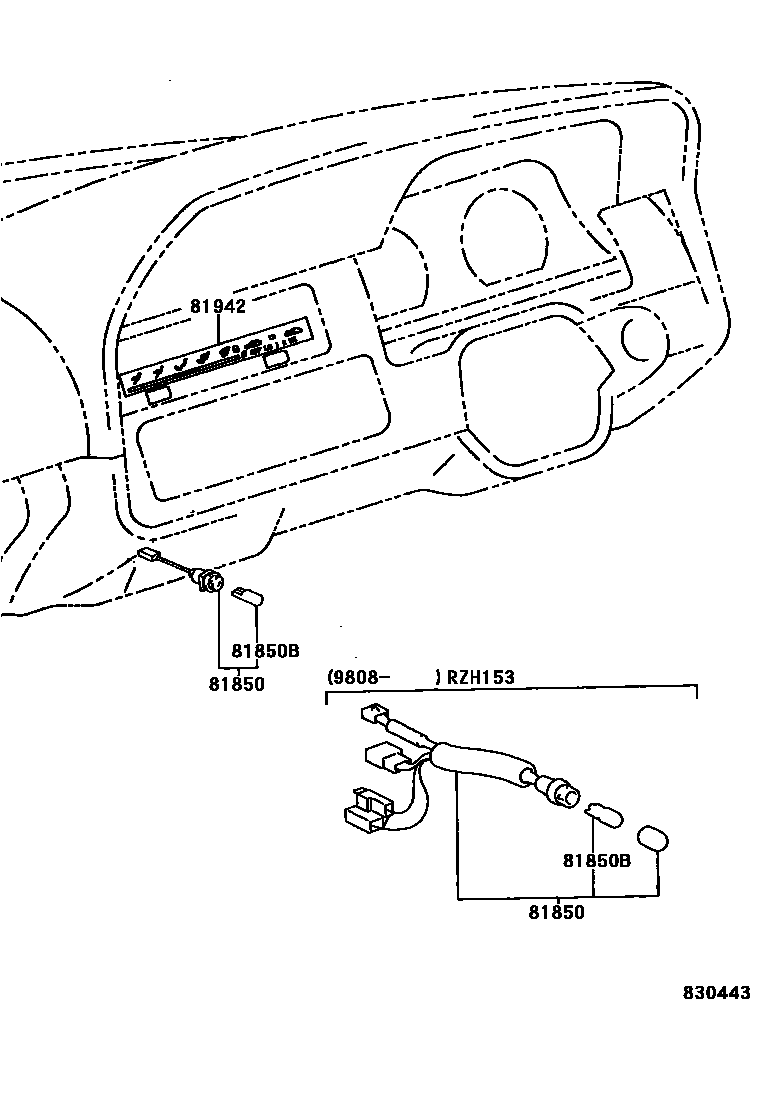

INDICATOR
81850LAMP ASSY, INDICATOR
81850BBULB, INDICATOR LAMP
main90981-11014iRZH115..GL,SGL;LH154,174,RZH102,103,113,114,135,15#..(SMRF,SRF)..(DX,GL)199907-200508
14V 1.4W
81942SHEET, HEATER CONTROL NAME
W(HEATER)
W(BOOST VENTILATOR)
W(BOOST VENTILATOR)
W(AIR CONDITIONER & BOOST VENTILATOR)
W(AIR CONDITIONER & BOOST VENTILATOR)
W(HEATER)
W(BOOST VENTILATOR)
W(HEATER)
W(AIR CONDITIONER & BOOST VENTILATOR)
W(AIR CONDITIONER & BOOST VENTILATOR)
W(BOOST VENTILATOR)
main81942-26100iLH174,RZH113..LHD..(03S,06S,10S);LH102,104,11#,RZH10#,112,114,115..LHD..(GCC,GEN)..(CBR,DSL)199808-200008
W(BOOST VENTILATOR)
main81942-26110iRZH113..LHD;LH102,104,11#,RZH10#,112,114,115..LHD..(GCC,GEN)..(CBR,DSL)199808-200008
W(AIR CONDITIONER & HEATER)
main81942-26120iLH172,174,RZH113..GCC..(DSL,EFI);RZH103,105,115..LHD..(GCC,GEN)..EFI; LH172,174,RZH113..LHD..GEN;LH102,104,11#,154,RZH102,104,105,11#..LHD..(GCC,GEN)..(CBR,DSL)199907-200508
W(AIR CONDITIONER & BOOST VENTILATOR); W(AIR CONDITIONER)
W(HEATER)
3 parts on this diagram · 1 diagram in section
