FRONT TURN SIGNAL LAMP

0001 1HIGH GRADE PACKAGE 0002 1HIGH GRADE PACKAGE 0004 1 0005 1W(SCULAPTURE HEADLAMP)

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-26040iLH103,113,125,RZH103,113,125..ARL199205-199207

main81510-26041iRZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125..DX,STD199907

main81510-26070iLH112..GL;LH125..GEN199411-199608

main81510-26110iLH113,125,172,184,RZH135,153..GL199608-199907

main81510-26120iLH102,174,RZH10#,112,114,115..GL199608-199907

main81510-95J16iLH10#,11#,RZH10#,11#..GEN198908-199207

main81510-95J17iLH103,113,125,RZH103,113,125..ARL198908-199205

main81510-95J18iLH112..RHD..SRF..03S198908-199308

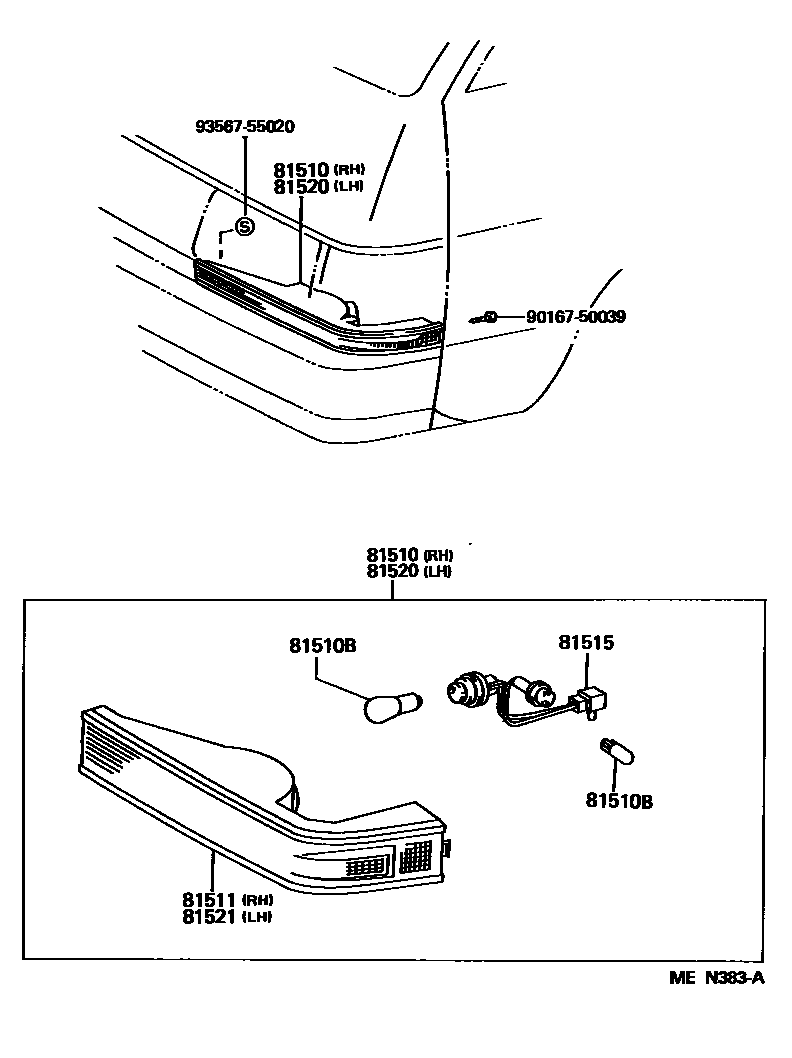

HIGH GRADE PACKAGE,REFER TO ILLUSTRATION

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13043×2iLH102,113,125,172,174,184,RZH10#,112,114,115,135,153..GL199705-199907

12V 21W

main99132-11210×2iRZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125..DX,STD199907

12V 21W

main99132-12050×2iLH102,113,125,172,174,184,RZH10#,112,114,115,135,153..GL199608-199907

12V 5W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-26040iLH125..ARL;LH10#,11#,RZH10#,11#,125..DX,SGL,STD199411-199808

main81511-26041iRZH112..4D..06S199907-200208

main81511-26070iLH112..GL;LH125..GEN199411-199608

main81511-26110iLH113,125,172,184,RZH135,153..GL199608-199907

main81511-26120iLH102,174,RZH10#,112,114,115..GL199608-199907

main81511-95J16iLH10#,11#,RZH10#,11#..GEN198908-199207

main81511-95J17iLH103,113,125,RZH103,113,125..ARL198908-199205

main81511-95J18iLH112..RHD..SRF..03S198908-199308

HIGH GRADE PACKAGE,REFER TO ILLUSTRATION

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81515-26110×2iLH113,125,172,184,RZH135,153..GL199608-199907

main81515-26120×2iRZH115..STD..GEN199808-199907

W(SCULAPTURE HEADLAMP)

main81515-95J16×2iLH10#,11#,RZH10#,11#..GEN198908-199207

main81515-95J17×2iLH10#,11#,125,RZH10#,11#,125..DX,STD199207-199411

main81515-95J19×2iLH112..RHD..SRF..03S198908-199308

HIGH GRADE PACKAGE,REFER TO ILLUSTRATION

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-26040iLH125..ARL;LH10#,11#,RZH10#,11#,125..DX,SGL,STD199411-199808

main81520-26041iRZH112..4D..06S199907-200208

main81520-26070iLH112..GL;LH125..GEN199411-199608

main81520-26110iLH113,125,172,184,RZH135,153..GL199608-199907

main81520-26120iRZH115..STD..GEN199808-199907

W(SCULAPTURE HEADLAMP)

main81520-95J16iLH10#,11#,RZH10#,11#..GEN198908-199207

main81520-95J17iLH103,113,125,RZH103,113,125..ARL198908-199205

main81520-95J18iLH112..RHD..SRF..03S198908-199308

HIGH GRADE PACKAGE,REFER TO ILLUSTRATION

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-26040iLH10#,11#,125,RZH10#,11#,125..DX,STD199207-199411

main81521-26041iRZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125..DX,STD199907

main81521-26070iLH112..GL;LH125..GEN199411-199608

main81521-26110iLH113,125,172,184,RZH135,153..GL199608-199907

main81521-26120iLH102,174,RZH10#,112,114,115..GL199608-199907

main81521-95J16iLH10#,11#,RZH10#,11#..GEN198908-199207

main81521-95J17iLH103,113,125,RZH103,113,125..ARL198908-199205

main81521-95J18iLH112..RHD..SRF..03S198908-199308

HIGH GRADE PACKAGE,REFER TO ILLUSTRATION

9016750039

main90167-50039

9356755020

main93567-55020

8 parts on this diagram · 4 diagrams in section
