ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-26010-C0iLH125..ARL;LH10#,11#,RZH10#,11#,125199308-200208

BLACK,TRIM1#

main74102-26010-C0iLH154..10S200008-200501

BLACK,TRIM4#

main74102-95J01-03iLH10#,11#,125,RZH10#,11#,125198908-199308

GRAY,TRIM1#

sub74102-95J01

main74111-22150iRZH153199808-200501

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-95J02iLH102,104,112,114,RZH102,104,112,114..LHD198908-199301

sub74104-95J04

main74104-95J03iLH10#,11#,125,RZH10#,11#,125..RHD..STD198908-199301

sub74104-95J05

main74104-95J04iRZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD199301-200508

main74104-95J05iLH102,103,11#,125,RZH102,103,104,11#,125,135,153..RHD198908-200208

main74127-22030iRZH153199808-200501

74105ARECEPTACLE SUB-ASSY, REAR ASH

main74105-10010iRZH102200008-200408

main74105-10010-33iLH10#,11#,125,RZH10#,11#,125..4D..SG198908-199308

GRAY,TRIM1#

sub74105-10010

main74105-10010-B0iLH102,RZH102,103..DX,GL,SGL199308-200501

BLUISH GRAY,TRIM1#

sub74105-10010

main74130-14020-B1iLH112,RZH113..DX199405-199508

BLUISH GRAY,TRIM1#

sub74130-14020

sub74130-95401

74109ABOX SUB-ASSY, ASH RECEPTACLE

main74109-32010-B3iRZH153199808-200501

BLUISH GRAY,TRIM1#

sub74109-20080

sub74109-32010

main74109-32010-E5iRZH153199907-200501

ANTELOPE,TRIM4#

sub74109-20080

sub74109-32010

74130RECEPTACLE ASSY, REAR ASH

main74130-26010-B0iRZH155..CIS200008-200501

BLUISH GRAY,TRIM1#

sub74130-26010

main74130-26010-E0iLH154..10S200008-200501

ANTELOPE,TRIM4#

sub74130-26010

74130BRECEPTACLE ASSY, REAR ASH

main74130-95J00-01iLH114,115,125,RZH114,125198908-199308

BLACK,TRIM1#

sub74130-95J00

sub74130-90C00

main74130-95J00-20iLH114,115,125,174,176,184,RZH114,115,125..14S,15S199308-199907

BLACK,TRIM1#

sub74130-95J00

sub74130-90C00

74130CRECEPTACLE ASSY, REAR ASH

main74130-16020-33iRZH103..GL198908-199108

GRAY,TRIM1#

sub74130-16020

main74130-16020-B0iLH174,RZH115..10S199808-200501

BLUISH GRAY,TRIM1#

sub74130-16020

main74130-16020-B0iLH102..GL199801-199807

W(FRONT SEPARATE SEAT),BLUISH GRAY,TRIM1#

sub74130-16020

main74130-16020-E1iLH154..10S200008-200501

ANTELOPE,TRIM4#

sub74130-16020

74130DRECEPTACLE ASSY, REAR ASH

main74130-95J00-01iRZH102,103,112..5D..06S198908-199308

BLACK,TRIM1#

sub74130-95J00

sub74130-90C00

main74130-95J00-20iLH103,112,RZH103,112,113..5D..06S199308-200508

BLACK,TRIM1#

sub74130-95J00

sub74130-90C00

74135ARETAINER, REAR ASH RECEPTACLE, NO.1

main74135-10030iLH102,104,105,11#,125,166,172,176,184,RZH102,104,105,11#,125..4D..(06S,12S,14S,15S)198908-200501

main74135-26010iRZH153199808-200501

TYPE A:REFER TO ILLUSTRATION

74135BRETAINER, REAR ASH RECEPTACLE, NO.2

mainC634295B00iRZH135199611-200501

74137RETAINER, REAR ASH RECEPTACLE, INNER RH

main74137-10030iLH174,RZH135198908-200501

74137BRETAINER, REAR ASH RECEPTACLE, INNER

main74137-12010iRZH153199808-200501

74145PLATE, REAR ASH RECEPTACLE

main74145-90B00iLH125..ARL;LH114,115,RZH114,115,125198908-200602

74145APLATE, REAR ASH RECEPTACLE

main74145-90B00iLH103,112,RZH102,103,112,113..5D..06S198908-200508

74239AHOLDER, REAR ASH RECEPTACLE

main74239-22020iLH102..GL199801-199807

W(FRONT SEPARATE SEAT)

main74239-22020iLH174,RZH103..05S,10S198908-200501

9326915010

main93269-15010

9353054025

main93530-54025

9356015014

main93560-15014

9356855012

main93568-55012

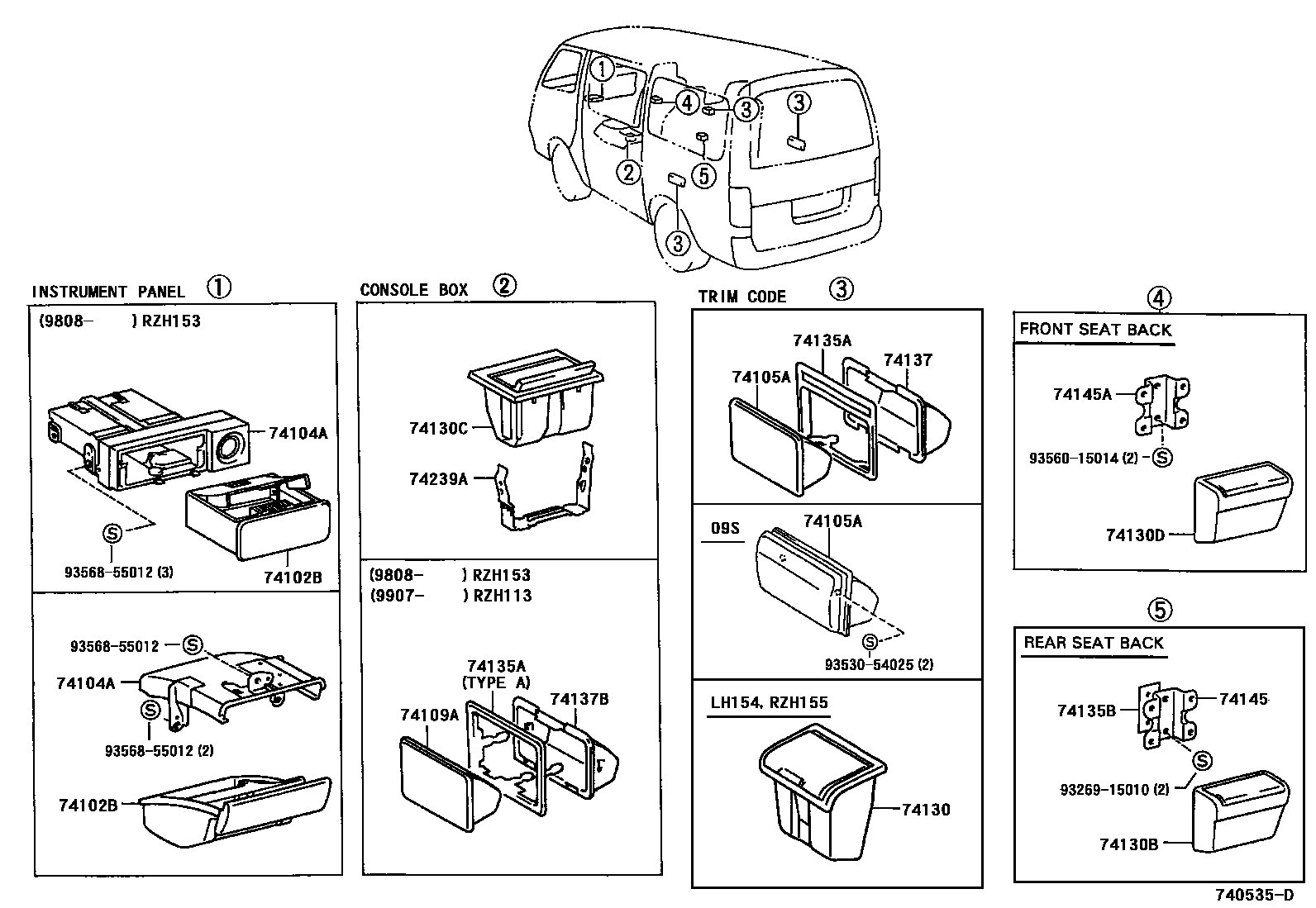

19 parts on this diagram · 1 diagram in section
