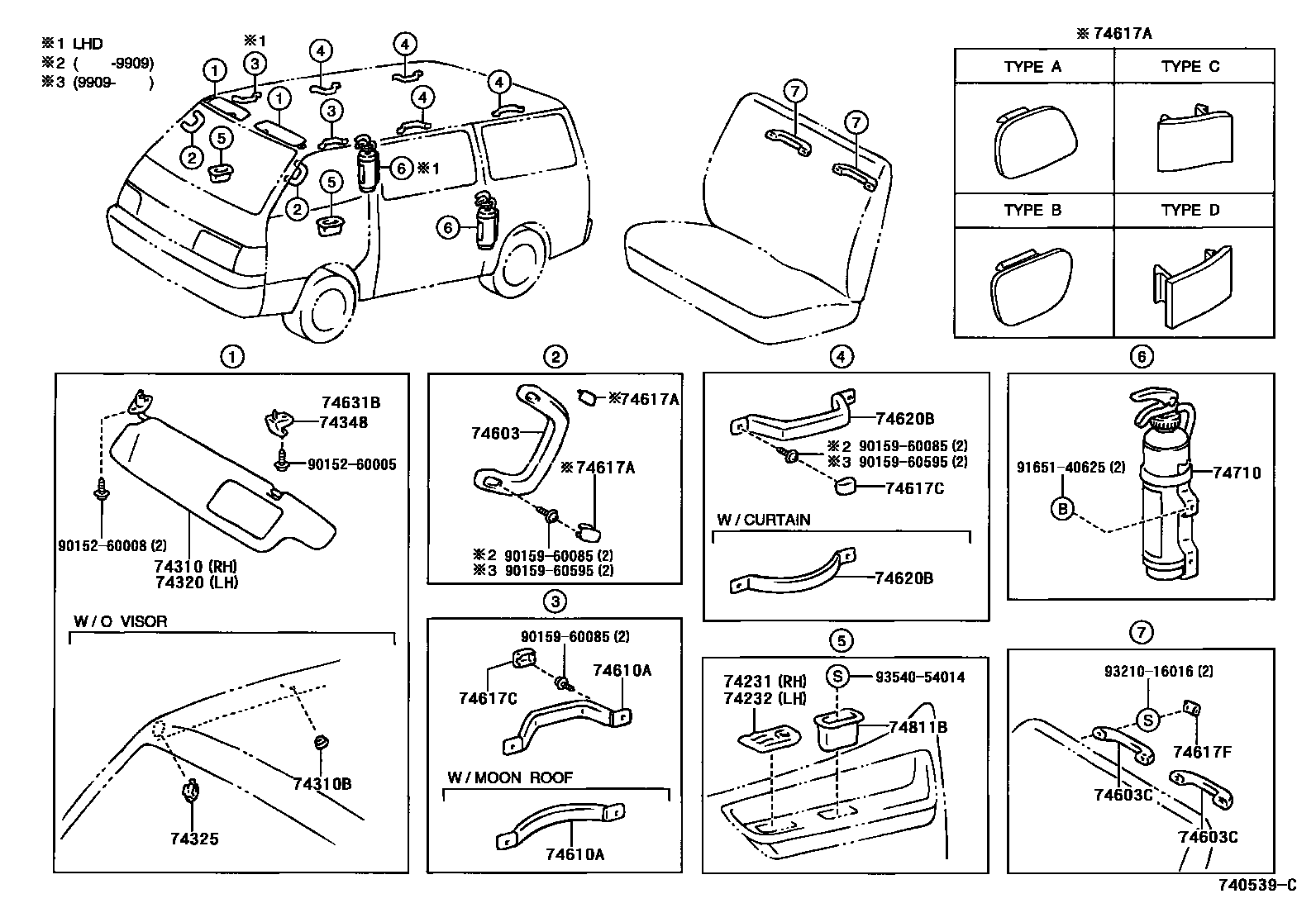

ARMREST & VISOR
74231PANEL, FRONT ARMREST BASE, UPPER RH
BLUISH GRAY,TRIM1#
main74231-26220-B0iRZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(CBR,DSL)199808-200008
BLUISH GRAY,TRIM1#
ANTELOPE,TRIM4#
main74231-26230-B0iLH172..5D..06S;LH162..4FC..GEN;LH103,113,RZH103,113..RHD..06S; RZH135199907-200501
BLUISH GRAY,TRIM1#; W(POWER DOOR LOCK),BLUISH GRAY,TRIM1#
ANTELOPE,TRIM4#
main74231-26240-B0iLH162..4FC;LH172..06S;LH172..ARL;LH172..HRF;LH172..03S..GL;RZH112..RHD..SP;LH172..RHD..5D..03S;LH162,174..RHD..(03S,15S)..5F;LH103,11#,125,184,RZH103,104,105,113,114,125..RHD199907
BLUISH GRAY,TRIM1#
HONG KONG SPEC; STONE GRAIN
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-26060-B0iRZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(CBR,DSL)199808-200008
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
ANTELOPE,TRIM4#
BLUISH GRAY,TRIM1#; W(POWER DOOR LOCK),BLUISH GRAY,TRIM1#
W(POWER DOOR LOCK),ANTELOPE,TRIM4#
HONG KONG SPEC; STONE GRAIN
BLUISH GRAY,TRIM1#
74310VISOR ASSY, RH
PHILIPPINES SPEC,MI.GRAY,TRIM1#
LT. BLUISH GRAY,TRIM1#
LT. BLUISH GRAY,TRIM1#
LT. BLUISH GRAY,TRIM1#
LIGHT GRAY,TRIM1#
LT. BLUISH GRAY,TRIM1#
LIGHT GRAY,TRIM1#
main74310-26361-B2iRZH102,114,115..03S,06S,09S,15S;LH10#,11#,125,166,172,176,184,RZH103,104,105,112,113..(03S,06S,12S,15S)..(CIS,GCC,GEN)199608-199907
LT. BLUISH GRAY,TRIM1#
LT. BLUISH GRAY,TRIM1#
LT. BLUISH GRAY,TRIM1#
W(*80,DRIVER SIDE ONLY),LT. BLUISH GRAY,TRIM1#
NEW ZEALAND SPEC & W(*80,DRIVER SIDE ONLY),LT. BLUISH GRAY,TRIM1#
main74310-26820-B0iLH103,113,125,162,172,184,RZH103,113,125..ARL; LH172..5D..06S;LH103,113,162,RZH103,113..RHD..06S199907-200501
LT. BLUISH GRAY,TRIM1#; NEW ZEALAND SPEC,LT. BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
LT. BLUISH GRAY,TRIM1#
LT. BL. GRAY,TRIM1#
LT. ANTELOPE,TRIM4#
main74310-2F060-B0iLH162,RZH103..06S..5F;LH172,RZH113..4D..06S..STD..(DSL,EFI); LH162..4FC;LH162..5F..ARL;LH172,RZH113..RHD..5D..06S;LH172,184,RZH103,113,125..ARL200008-200501
NEW ZEALAND & W(*80,DRIVER SIDE & PASSENGER SIDE),LT. BLUISH GRAY,TRIM1#; W(*80,DRIVER SIDE & PASSENGER SIDE),LT. BLUISH GRAY,TRIM1#
LI. GRAY,TRIM1#
LIGHT GRAY,TRIM11
W(MAP HOLDER),IVORY,TRIM1#
LI. GRAY,TRIM1#
IVORY,TRIM1#
IVORY,TRIM1#
W(DAY & NIGHT MIRROR),IVORY,TRIM1#
LIGHT GRAY,TRIM1#
HIGH GRADE PACKAGE,LIGHT GRAY,TRIM1#
74310BPLUG, HOLE (FOR VISOR)
LT. BLUISH GRAY,TRIM1#
main90467-06178-B0×2iLH103,113,162,RZH103,113..06S..GEN; LH172..06S..GL;LH172,174..HRF;LH172,174..CIS,GCC;LH172,RZH113..RHD..5D;LH103,113,162,164,RZH103,113..SG..STD..(DSL,EFI); RZH113..LHD;LH172..03S..GL;LH172..LHD..5D..GEN;RZH113..RHD..4D..03S..GEN;LH172,174..SRF..4D..STD..GEN;LH103,113,162,RZH103,115..(03S,15S)..(CIS,GCC,GEN);LH102,104,105,112,114,115,166,176,RZH102,104,105,112,114..03S,06S,12S,15S199907-200009
LT.BLUISH GRAY,TRIM1#; NEW ZEALAND SPEC & W(*80,DRIVER SIDE ONLY),LT.BLUISH GRAY,TRIM1#; W(*80,DRIVER SIDE),LT.BLUISH GRAY,TRIM1#
74320VISOR ASSY, LH
PHILIPPINES SPEC,MI.GRAY,TRIM1#
LT. BLUISH GRAY,TRIM1#
LT. BLUISH GRAY,TRIM1#
LT. BLUISH GRAY,TRIM1#
LT. BLUISH GRAY,TRIM1#
main74320-26211-B3iLH103,113,125,162,172,184,RZH103,113,125..ARL; LH172..5D..06S;LH103,113,162,RZH103,113..RHD..06S199907-200501
LT. BLUISH GRAY,TRIM1#; NEW ZEALAND SPEC,LT. BLUISH GRAY,TRIM1#
LIGHT GRAY,TRIM1#
main74320-26221-B2iRZH102,114,115..03S,06S,09S,15S;LH10#,11#,125,172,184,RZH103,104,105,112,113..(03S,06S,12S,15S)..(CIS,GCC,GEN)199608-199907
LT. BLUISH GRAY,TRIM1#
LT. BLUISH GRAY,TRIM1#
LT. BLUISH GRAY,TRIM1#
W(*80,DRIVER SIDE & PASSENGER SIDE),LT. BLUISH GRAY,TRIM1#
LT. BLUISH GRAY,TRIM1#
W(*80,DRIVER SIDE ONLY),LT. BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
LT. BLUISH GRAY,TRIM1#
W(SRS AIR BAG,DRIVER SIDE & SRS AIR BAG,PASSENGER SIDE),LT. BLUISH GRAY,TRIM1#
W(SRS AIR BAG,DRIVER SIDE),LT. BLUISH GRAY,TRIM1#
LT. BLUISH GRAY,TRIM1#
LT. BL. GRAY,TRIM1#
LT. ANTELOPE,TRIM4#
W(SRS AIR BAG,DRIVER SIDE),LT. BLUISH GRAY,TRIM1#
W(SRS AIR BAG,DRIVER SIDE),LT. BLUISH GRAY,TRIM1#
W(SRS AIR BAG,DRIVER SIDE),LT. BL. GRAY,TRIM1#
W(SRS AIR BAG,DRIVER SIDE),LT. BLUISH GRAY,TRIM1#
LI. GRAY,TRIM1#
W(MAP HOLDER),IVORY,TRIM1#
LIGHT GRAY,TRIM11
LI. GRAY,TRIM1#
IVORY,TRIM1#
IVORY,TRIM1#
W(DAY & NIGHT MIRROR),IVORY,TRIM1#
LIGHT GRAY,TRIM1#
EXCELLENT PACKAGE,LIGHT GRAY,TRIM1#
74325COVER, VISOR BRACKET
LT. BLUISH GRAY,TRIM1#
IVORY,TRIM1#
LI. GRAY,TRIM1#
main74325-95J00-B1iRZH115..15S;LH10#,11#,16#,17#,RZH10#,112,113,114..(03S,06S,12S,15S)..(CIS,GCC,GEN)199907-200009
LT.BLUISH GRAY,TRIM1#
74348HOLDER, VISOR
IVORY,TRIM1#
LIGHT GRAY,TRIM1#
GRAY,TRIM1#
LT.BLUISH GRAY,TRIM1#; W/O(VISOR, PASSENGER SIDE),LT.BLUISH GRAY,TRIM1#
LT.GRAY,TRIM1#
ORCHID,TRIM4#
74603GRIP SUB-ASSY, ASSIST, FRONT
GRAY,TRIM1#
LT.GRAY,TRIM12
SHADOW GRAY,TRIM1#
ORCHID,TRIM4#
LIGHT GRAY,TRIM1#
GRAY,TRIM1#
74603CGRIP SUB-ASSY, ASSIST
GRAY,TRIM1#
BLUISH GRAY,TRIM1#
GRAY,TRIM16
LT.BLUISH GRAY,TRIM16
74610AGRIP SUB-ASSY, ASSIST
IVORY,TRIM1#
LIGHT GRAY,TRIM1#
main74610-20040-B0iLH184,RZH104,105,114,115..GL,STD;LH104,105,114,115,125,164,166,174,176,RZH125..STD199907-200602
GRAY,TRIM16
main74610-20040-B1iLH104,114,115,125,RZH104,105,114,115,125; RZH103;LH102,103,112,113,RZH102,112,113,135,153..GL,STD199608-199808
LT.BLUISH GRAY,TRIM1#; LT.BLUISH GRAY,TRIM13
LI. GRAY,TRIM1#
ORCHID,TRIM4#
LI. GRAY,TRIM1#
W(MOON ROOF),LIGHT GRAY,TRIM1#
74617APLUG, ASSIST GRIP
TYPE C:REFER TO ILLUSTRATION,GRAY,TRIM1#
SHADOW GRAY,TRIM1#,TYPE C; TYPE C:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM1#
ORCHID,TRIM4#,TYPE C
TYPE D:REFER TO ILLUSTRATION,GRAY,TRIM1#
main74617-26020-B5×2iRZH112..5D;LH154,RZH112..03S,11S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125,135,155199907-200602
SHADOW GRAY,TRIM1#,TYPE D
ORCHID,TRIM4#,TYPE D
TYPE A:REFER TO ILLUSTRATION,LIGHT GRAY,TRIM1#
TYPE A:REFER TO ILLUSTRATION,GRAY,TRIM1#
TYPE B:REFER TO ILLUSTRATION,LIGHT GRAY,TRIM1#
TYPE B:REFER TO ILLUSTRATION,GRAY,TRIM1#
74617CPLUG, ASSIST GRIP
main74617-16010-38×6iLH10#,112,113,RZH10#,112,113..SG..STD; LH102,103,112,113,RZH102,103,112,113..03S; LH114,115,125,RZH114,125198908-199308
IVORY,TRIM1#
LIGHT GRAY,TRIM1#; W(MOON ROOF),LIGHT GRAY,TRIM1#
GRAY,TRIM16
main74617-16010-B7×12iLH104,105,114,164,166,RZH104,105..10S,12S; LH125,184,RZH125..ARL; LH154,RZH135,155..11S,12S199907-200501
LT.BLUISH GRAY,TRIM1#; LT.BLUISH GRAY,TRIM16; W/O(REAR SEAT),LT.BLUISH GRAY,TRIM16
main74617-16010-B8×2iLH10#,112,113,RZH10#,112,113..SG..STD; LH102,103,112,113,RZH102,103,112,113..03S199308-199608
LI. GRAY,TRIM1#
ORCHID,TRIM4#
74617FPLUG, ASSIST GRIP
GRAY,TRIM1#
BLUISH GRAY,TRIM1#
main74617-16010-B2×12iRZH105..STD;LH104,105,166,RZH104,114..12S; RZH115..STD;LH114,115,125,176,184,RZH114,125..14S,15S199808-199907
GRAY,TRIM1#
LT.BLUISH GRAY,TRIM16
ORCHID,TRIM4#
74620BGRIP ASSY, ASSIST, REAR
IVORY,TRIM1#
LIGHT GRAY,TRIM1#
GRAY,TRIM1#
LT.BLUISH GRAY,TRIM1#
LI. GRAY,TRIM1#
ORCHID,TRIM4#
LI. GRAY,TRIM1#
LT.BLUISH GRAY,TRIM1#
74631BHOOK, COAT
LT. BLUISH GRAY,TRIM1#
LT.ANTELOPE,TRIM4#
74710EXTINGUISHER ASSY
74811BHANDLE, DOOR PULL
GRAY,TRIM1#
BLUISH GRAY,TRIM1#
main74811-95J04-B0×2iRZH102,153..GL;LH172,174,RZH103,114,115,135..4D..(06S,09S,10S,12S)199808-199907
BLUISH GRAY,TRIM1#
ANTELOPE,TRIM4#
9015260005
main90152-60005
9015260008
main90152-60008
9015960085
main90159-60085
9015960595
main90159-60595
9165140625
main91651-40625
9321016016
main93210-16016
9354054014
main93540-54014
24 parts on this diagram · 1 diagram in section
