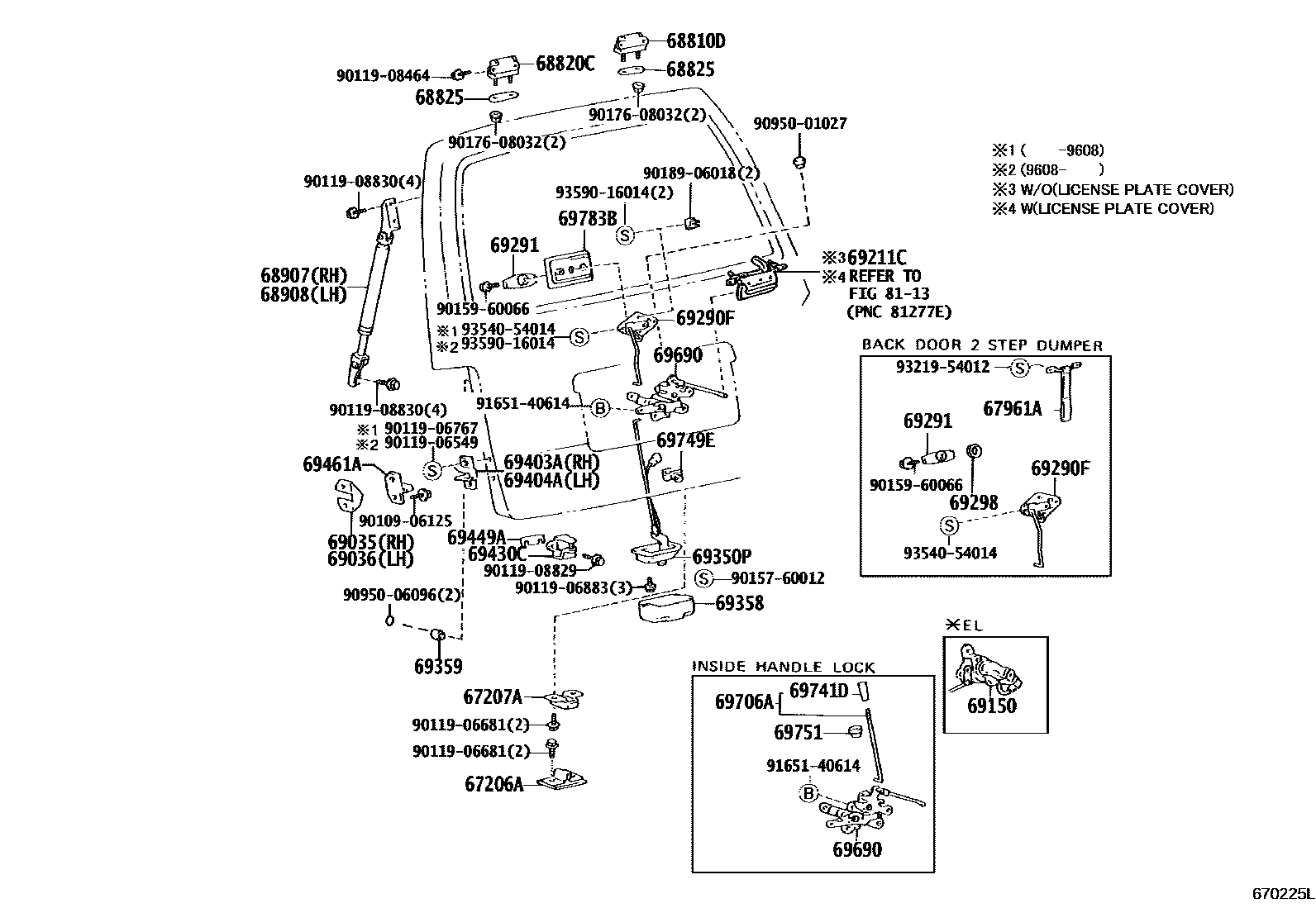

BACK DOOR LOCK & HINGE
67206ABRACKET SUB-ASSY, BACK DOOR STOPPER
67207ASTOPPER SUB-ASSY, BACK DOOR, RH
68810DHINGE ASSY, BACK DOOR, RH
main68810-95J02iRZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..198908-200208
68820CHINGE ASSY, BACK DOOR, LH
main68820-95J02iRZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..198908-200208
68825PLATE, BACK DOOR HINGE
68907STAY SUB-ASSY, BACK DOOR DAMPER, RH
sub68907-26600
main68907-26160iRZH113..EFI;RZH103,113..ARL,GCC;LH10#,11#,RZH102,104,105,112,114,115..SRF..(DX,STD)..(ARL,GCC,GEN)199506-199807
sub68907-26510
main68907-26170iRZH113..LHD..EFI;RZH103..(SGL,STD)..CBR;LH112,RZH113..SRF..(CBR,DSL);LH10#,113,114,115,RZH102,104,105,112,114,115..SRF..(DX,STD)199506-199807
W(REAR WIPER)
sub68907-26520
W(REAR WINDOW DEFOGGER)
sub68907-26520
W(2 STEP BACK DOOR DAMPER)
sub68907-26530
main68907-26190iRZH102..LHD;RZH103..STD..EFI;LH102,112..LHD..06S;LH103,RZH112,113..06S..(DSL,EFI);LH103,113,RZH113..4D..03S..STD..GEN199508-199807
W(REAR WINDOW DEFOGGER & 2 STEP BACK DOOR DAMPER)
sub68907-26540
sub68907-26560
W(2 STEP BACK DOOR DAMPER)
W(REAR WINDOW DEFOGGER)
COLD SPEC
NEW ZEALAND SPEC
main68907-26520iRZH113..CBR;LH103,RZH113..03S..(DSL,EFI);LH102,104,11#,125,RZH10#,112,114,115..SMRF,SRF199807-199907
COLD SPEC
main68907-26520iRZH113..CBR;LH103,RZH113..03S..(DSL,EFI);LH102,104,11#,125,RZH10#,112,114,115..SMRF,SRF199807-199907
COLD AREA & NEW ZEALAND SPEC
NEW ZEALAND SPEC & W(REAR WINDOW DEFOGGER)
W(2 STEP BACK DOOR DAMPER)
main68907-26540iLH113..STD..GEN;LH102,103,112,RZH102,103,112,113..(03S,06S)..(GL,STD)..GEN199807-199808
COLD SPEC & W(2 STEP BSCK DOOR DAMPER)
COLD SPEC
W(REAR WINDOW DEFOGGER)
HANDICAB & COLD AREA SPEC
W(REAR WINDOW DEFOGGER & 2 STEP BACK DOOR DAMPER)
W(2 STEP BACK DOOR DAMPER)
W(REAR WINDOW DEFOGGER & 2 STEP BACK DOOR DAMPER)
main68907-95J13iRZH113..EFI;RZH113..ARL,GCC;RZH102..5D..03S;RZH102..LHD..06S;RZH102,103..4D..STD;LH10#,11#,RZH104,105,112,114,115..SRF..(DX,STD)..(ARL,GCC,GEN)198908-199506
sub68907-26160
COLD SPEC OR W(REAR WINDOW WIPER)
sub68907-26170
COLD SPEC & W(REAR WINDOW WIPER)
sub68907-95J14
main68907-95J16iRZH113..EFI;RZH113..ARL,GCC;RZH102..5D..03S;RZH102..LHD..06S;RZH102,103..4D..STD;LH102,103,112,113,RZH112..SRF..(DX,STD)..(ARL,GCC,GEN)198908-199506
W(2 STEP BACK DOOR DAMPER)
sub68907-26180
COLD SPEC & W(2 STEP BSCK DOOR DAMPER) OR W(REAR WIPER & 2 STEP BACK DOOR DAMPER)
sub68907-26190
COLD SPEC & W(REAR WIPER & 2 STEP BACK DOOR DAMPER)
sub68907-95J17
sub68907-26230
W(REAR WIPER & 2 STEP BACK DOOR DAMPER)
68908STAY SUB-ASSY, BACK DOOR DAMPER, LH
sub68908-26600
sub68908-26510
main68908-26170iRZH113..LHD..EFI;RZH103..(SGL,STD)..CBR;LH112,RZH113..SRF..(CBR,DSL);LH10#,113,114,115,RZH102,104,105,112,114,115..SRF..(DX,STD)199506-199807
W(REAR WIPER)
sub68908-26520
W(REAR WINDOW DEFOGGER)
sub68908-26520
W(2 STEP BACK DOOR DAMPER)
sub68908-26530
W(REAR WINDOW DEFOGGER & 2 STEP BACK DOOR DAMPER)
sub68908-26540
main68908-26190iRZH102..LHD;RZH103..STD..EFI;LH102,112..LHD..06S;LH103,RZH112,113..06S..(DSL,EFI);LH103,113,RZH113..4D..03S..STD..GEN199608-199807
COLD SPEC & W(2 STEP BSCK DOOR DAMPER)
sub68908-26540
sub68908-26560
W(2 STEP BACK DOOR DAMPER)
main68908-26480iLH172..5D;RZH113..RHD..06S;LH162,RZH103,104..06S,12S;RZH115..SRF..15S..(GCC,GEN);RZH112,113..RHD..4D..SP..GEN;LH172..SRF..4D..03S..STD..GEN;LH102,103,104,11#,RZH102199808-200602
W(REAR WINDOW DEFOGGER)
COLD SPEC
NEW ZEALAND SPEC
NEW ZEALAND SPEC & W(REAR WINDOW DEFOGGER)
COLD SPEC
COLD AREA & NEW ZEALAND SPEC
W(2 STEP BACK DOOR DAMPER)
main68908-26540iLH113..STD..GEN;LH102,103,112,RZH102,103,112,113..(03S,06S)..(GL,STD)..GEN199807-199808
COLD SPEC & W(2 STEP BSCK DOOR DAMPER)
W(REAR WINDOW DEFOGGER)
COLD SPEC
HANDICAB & COLD AREA SPEC
W(REAR WINDOW DEFOGGER & 2 STEP BACK DOOR DAMPER)
main68908-26760iRZH112..LHD;LH172..5D..GEN;RZH112..RHD..SP;LH162,RZH103,113..RHD..06S;LH102,103,112,113,RZH102..STD..GEN;LH172,RZH113..SRF..4D..03S..STD..GEN199808-200602
W(2 STEP BACK DOOR DAMPER)
W(REAR WINDOW DEFOGGER & 2 STEP BACK DOOR DAMPER)
main68908-95J13iRZH113..EFI;RZH113..ARL,GCC;RZH102..5D..03S;RZH102..LHD..06S;RZH102,103..4D..STD;LH10#,11#,RZH104,105,112,114,115..SRF..(DX,STD)..(ARL,GCC,GEN)198908-199506
sub68908-26160
COLD SPEC OR W(REAR WINDOW WIPER)
sub68908-26170
COLD SPEC & W(REAR WINDOW WIPER)
sub68908-95J14
main68908-95J16iRZH113..EFI;RZH113..ARL,GCC;RZH102..5D..03S;RZH102..LHD..06S;RZH102,103..4D..STD;LH102,103,112,113,RZH112..SRF..(DX,STD)..(ARL,GCC,GEN)198908-199506
W(2 STEP BACK DOOR DAMPER)
sub68908-26180
COLD SPEC & W(2 STEP BSCK DOOR DAMPER) OR W(REAR WIPER & 2 STEP BACK DOOR DAMPER)
sub68908-26190
COLD SPEC & W(REAR WIPER & 2 STEP BACK DOOR DAMPER)
sub68908-95J17
sub68908-26230
W(REAR WIPER & 2 STEP BACK DOOR DAMPER)
69150ACTUATOR ASSY, BACK DOOR LOCK
main69150-95J00iRZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..198908-200501
69211CHANDLE, BACK DOOR OUTSIDE
69290FHANDLE ASSY, BACK DOOR INSIDE
main69290-95J01iLH125,RZH125;RZH105,115..STD..CIS;RZH103..RHD..GEN..EFI;LH172,174..(03S,10S)..GL;LH172..RHD..SRF..4D..STD..GEN;RZH103,105,113,115..(GCC,GEN)..CBR;RZH113..4D..(03S,0198908-200208
69298COVER, BACK DOOR INSIDE HANDLE
main69298-95J00iLH125,RZH125;RZH103..RHD..GEN;LH10#,11#,RZH102,104,105,11#..CIS,GCC,GEN198908-200208
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
sub69350-37020
main69350-95J02iRZH113..CBR;RZH113..4D..STD..EFI;LH172..RHD..SRF..4D..STD..GEN;LH102,103,112,113,RZH102,103,112..STD..(ARL,GCC,GEN)198908-200108
W(STEP TYPE REAR BUMPER)
W(DOUBLE SWING BACK DOOR)
69358PROTECTOR, BACK DOOR LOCK
69359CUSHION, BACK DOOR LOCK
69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH
SEVERE USAGE PACKAGE
sub69403-26050
main69403-26050iRZH113..4D..STD..EFI;LH172,184..(03S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN;RZH104,105,11#..STD..(ARL,GCC,GEN)..CBR;LH102,103,104,11#,125,RZH102,103,125,135,153..(0199608-200602
sub69403-26050
69430CSTRIKER ASSY, BACK DOOR LOCK
W(STEP TYPE REAR BUMPER)
69449ASHIM, BACK DOOR LOCK STRIKER
main69449-95J00iRZH113..LHD;RZH113..RHD..4D..STD;LH172..RHD..SRF..4D..STD..GEN;LH102,103,112,113,RZH102,103,112..SRF..STD198908-200501
W(DOUBLE SWING BACK DOOR)
69461STOPPER, BACK DOOR SIDE MALE, RH
W(DOUBLE SWING BACK DOOR)
69461ASTOPPER, BACK DOOR SIDE MALE
SEVERE USAGE PACKAGE
main69461-26050iRZH104,105,112,114..STD..(GCC,GEN);LH10#,11#,125,RZH102,103,113,115,125,135,153..(03S,06S,12S,14S,15S)..(ARL,GCC,GEN)199608-199711
sub69461-26060
sub69461-26030
69690CONTROL ASSY, BACK DOOR REMOTE
sub69690-95J04
main69690-95J04iRZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#199112-200208
W(INSIDE HANDLE)
69706AROD SUB-ASSY, BACK DOOR LOCK REMOTE CONTROL
69741DKNOB, DOOR LOCK CONTROL(FOR BACK DOOR)
69749ECLAMP, BACK DOOR LOCK LINK
69751HOLDER, DOOR LOCK CONTROL KNOB
8113
9010906125
main90109-06125
9011906549
main90119-06549
9011906681
main90119-06681
9011906767
main90119-06767
9011906883
main90119-06883
9011908464
main90119-08464
9011908829
main90119-08829
9011908830
main90119-08830
9015760012
main90157-60012
9015960066
main90159-60066
9017608032
main90176-08032
9018906018
main90189-06018
9095001027
main90950-01027
9095006096
main90950-06096
9165140614
main91651-40614
9321954012
main93219-54012
9354054014
main93540-54014
9359016014
main93590-16014
49 parts on this diagram · 2 diagrams in section
