E
EPC Data

CONSOLE BOX & BRACKET

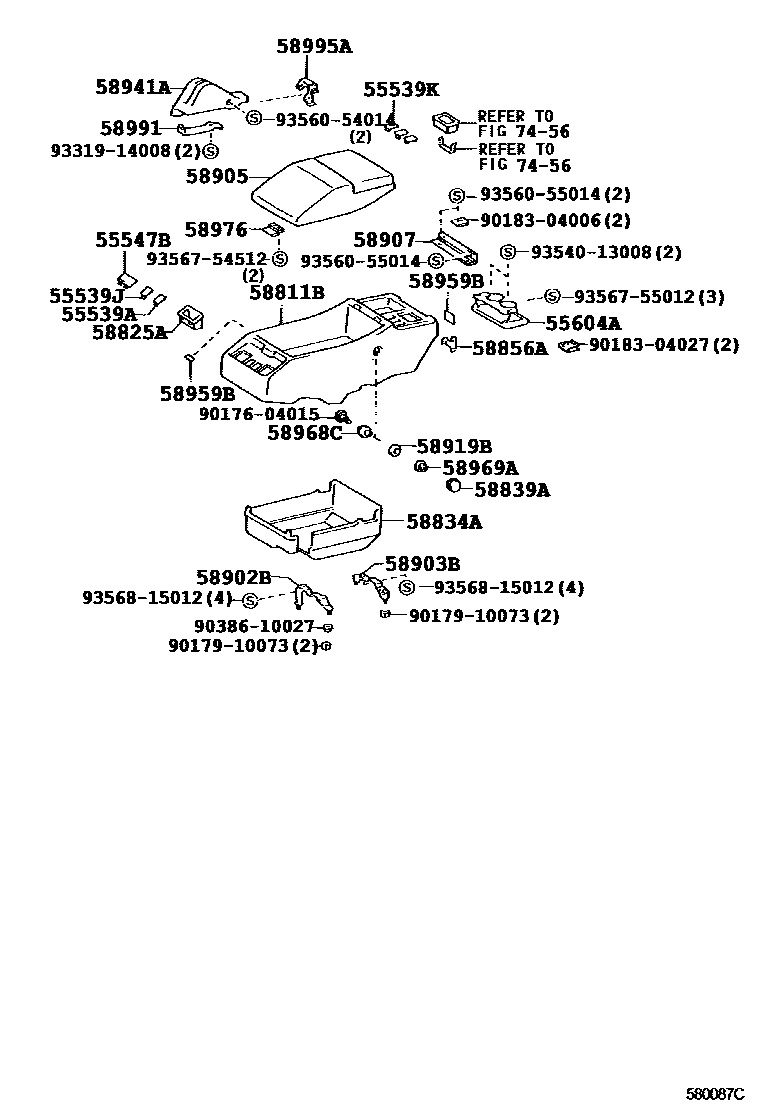

Parts diagram
55539ACOVER, SPARE SWITCH HOLE
main55539-32010-11i198908-199108
BLACK,TRIM1#
sub55539-32010
sub55539-32030
main55539-32010-C0i199808-200501
BLACK,TRIM1#
sub55539-32010
sub55539-32030
main55539-32010-C0i199801-199807
W(FRONT SEPARATE SEAT),BLACK,TRIM1#
sub55539-32010
sub55539-32030
main55539-32010-C0i200008-200501
BLACK,TRIM4#
sub55539-32010
sub55539-32030
55539JCOVER, SPARE SWITCH HOLE
main55539-32010-11i198908-199108
BLACK,TRIM1#
sub55539-32010
sub55539-32030
55539KCOVER, SPARE SWITCH HOLE
main55539-20030-23i198908-199108
GRAY,TRIM1#
sub55539-32010
sub55539-20030
main55539-20030-B1i199801-199807
W(FRONT SEPARATE SEAT),BLUISH GRAY,TRIM1#
sub55539-32010
sub55539-20030
main55539-20030-B1i199808-200501
BLUISH GRAY,TRIM1#
sub55539-32010
sub55539-20030
main55539-20030-E2i200008-200501
ANTELOPE,TRIM4#
sub55539-32010
sub55539-20030
55547BCOVER, REMOTE CONTROL MIRROR HOLE
main55547-95J00i198908-199108
main55547-95J00-C0i199808-200501
BLACK,TRIM1#
sub55547-95J00
main55547-95J00-C0i199801-199807
W(FRONT SEPARATE SEAT),BLACK,TRIM1#
sub55547-95J00
main55547-95J00-C0i200008-200501
BLACK,TRIM4#
sub55547-95J00
55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP
main55604-26040i199808-200501
main55604-95J00-03i198908-199108
GRAY,TRIM1#
sub55604-95J01
sub55604-95J00
main55604-95J00-B0i199808-200501
BLUISH GRAY,TRIM1#
sub55604-95J01
sub55604-95J00
main55604-95J00-B0i199801-199807
W(FRONT SEPARATE SEAT),BLUISH GRAY,TRIM1#
sub55604-95J01
sub55604-95J00
main55604-95J00-E0i200008-200501
ANTELOPE,TRIM4#
sub55604-95J01
sub55604-95J00
58811BBOX, CONSOLE
main58811-26040-B0i199808-200501
BLUISH GRAY,TRIM1#
main58811-26040-E0i199907-200501
ANTELOPE,TRIM4#
main58811-95J04-03i198908-199308
GRAY,TRIM1#
sub58811-95J04
main58811-95J04-B0i199308-200211
BLUISH GRAY,TRIM1#
sub58811-95J04
main58811-95J05-03i198908-199108
GRAY,TRIM1#
sub58811-95J05
main58811-95J05-B0i199808-200501
BLUISH GRAY,TRIM1#
sub58811-95J05
main58811-95J05-B0i199801-199807
W(FRONT SEPARATE SEAT),BLUISH GRAY,TRIM1#
sub58811-95J05
main58811-95J05-E0i200008-200501
ANTELOPE,TRIM4#
sub58811-95J05
58825APOCKET, CONSOLE BOX
main55440-26050i199808-200501
main58825-95J00i198908-200501
main58825-95J00i199801-199807
W(FRONT SEPARATE SEAT)
58834ACOVER, CONSOLE, LOWER
main58834-26010i199006-200501
main58834-26010i199801-199807
W(FRONT SEPARATE SEAT)
main58834-26050-B0i199808-200501
BLUISH GRAY,TRIM1#
sub58834-26050
main58834-26050-E0i199907-200501
ANTELOPE,TRIM4#
sub58834-26050
main58834-95J00i198908-199006
58839ACOVER, CONSOLE BOX HOLE
main58839-95J00i199801-199807
W(FRONT SEPARATE SEAT),TRIM1#
main58839-95J00-03i198908-199108
GRAY,TRIM1#
sub58839-95J00
main58839-95J00-B0i199808-200501
BLUISH GRAY,TRIM1#
sub58839-95J00
main58839-95J00-E0i199907-200501
ANTELOPE,TRIM4#
sub58839-95J00
58856AHOLDER, CONSOLE BOX
main58856-95J05i198908-200501
main58856-95J05i199801-199807
W(FRONT SEPARATE SEAT)
58902BBRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.1
main58902-26010i199808-200501
main58902-95J03i198908-200501
main58902-95J03i199801-199807
W(FRONT SEPARATE SEAT)
58903BBRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.2
main58903-26020i199808-200501
main58903-95J02i199801-199807
W(FRONT SEPARATE SEAT)
main58903-95J02i198908-200501
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-26090-B0i199808-200501
BLUISH GRAY,TRIM1#
sub58905-26090
main58905-26090-E1i199907-200501
ANTELOPE,TRIM4#
sub58905-26090
main58905-26130-B0i199808-200008
BLUISH GRAY,TRIM1#
main58905-26190-E0i200008-200501
ANTELOPE,TRIM4#
main58905-95J03-03i198908-199108
GRAY,TRIM1#
sub58905-95J03
main58905-95J03-03i199801-199807
W(FRONT SEPARATE SEAT),GRAY
sub58905-95J03
main58905-95J03-B0i200008-200501
BLUISH GRAY,TRIM1#
sub58905-95J03
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58907-95J04-03i198908-199108
GRAY,TRIM1#
sub58907-95J04
main58907-95J04-B0i199801-199807
W(FRONT SEPARATE SEAT),BLUISH GRAY,TRIM1#
sub58907-95J04
main58907-95J04-B0i199808-200501
BLUISH GRAY,TRIM1#
sub58907-95J04
main58907-95J04-E0i200008-200501
ANTELOPE,TRIM4#
sub58907-95J04
58919BPLATE, CONSOLE BOX
main58919-32030i199801-199807
W(FRONT SEPARATE SEAT)
main58919-32030i198908-200501
main58919-95J01-03i198908-199308
GRAY,TRIM1#
sub58919-95J01
main58919-95J01-B0i199308-200211
BLUISH GRAY,TRIM1#
sub58919-95J01
58941ACOVER, PARKING BRAKE HOLE
main58904-26020-B0i199611-200501
BLUISH GRAY,TRIM1#
sub58904-26020
main58904-26020-E0i199907-200501
ANTELOPE,TRIM4#
sub58904-26020
main58904-95J02-03i198908-199308
GRAY,TRIM1#
sub58904-95J02
main58904-95J02-B0i199308-200208
BLUISH GRAY,TRIM1#
sub58904-95J02
58959BCUSHION, CONSOLE COMPARTMENT DOOR
main58959-26010i199001-200501
FRONT
main58959-95J00i198908-199001
main58959-95J00i199010-200501
REAR
58968CSHIM, CONSOLE COMPARTMENT DOOR STOPPER
main58968-26010i199808-200501
main58968-32020i198908-200501
main58968-32020i199801-199807
W(FRONT SEPARATE SEAT)
58969ARETAINER, CONSOLE COMPARTMENT DOOR STOPPER
main58969-20010i198908-200501
main58969-20010i199801-199807
W(FRONT SEPARATE SEAT)
58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK
main58976-20020i199801-199807
W(FRONT SEPARATE SEAT)
main58976-20020i199808-200501
main58976-22020i198908-199108
58991BRACKET, CONSOLE BOX MOUNTING, UPPER
main58991-95J03i198908-200208
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
main58995-95J02i198908-200208
7456
9017604015
main90176-04015
9017910073
main90179-10073
9018304006
main90183-04006
9018304027
main90183-04027
9038610027
main90386-10027
9331914008
main93319-14008
9354013008
main93540-13008
9356054014
main93560-54014
9356055014
main93560-55014
9356754512
main93567-54512
9356755012
main93567-55012
9356815012
main93568-15012

35 parts on this diagram · 6 diagrams in section
