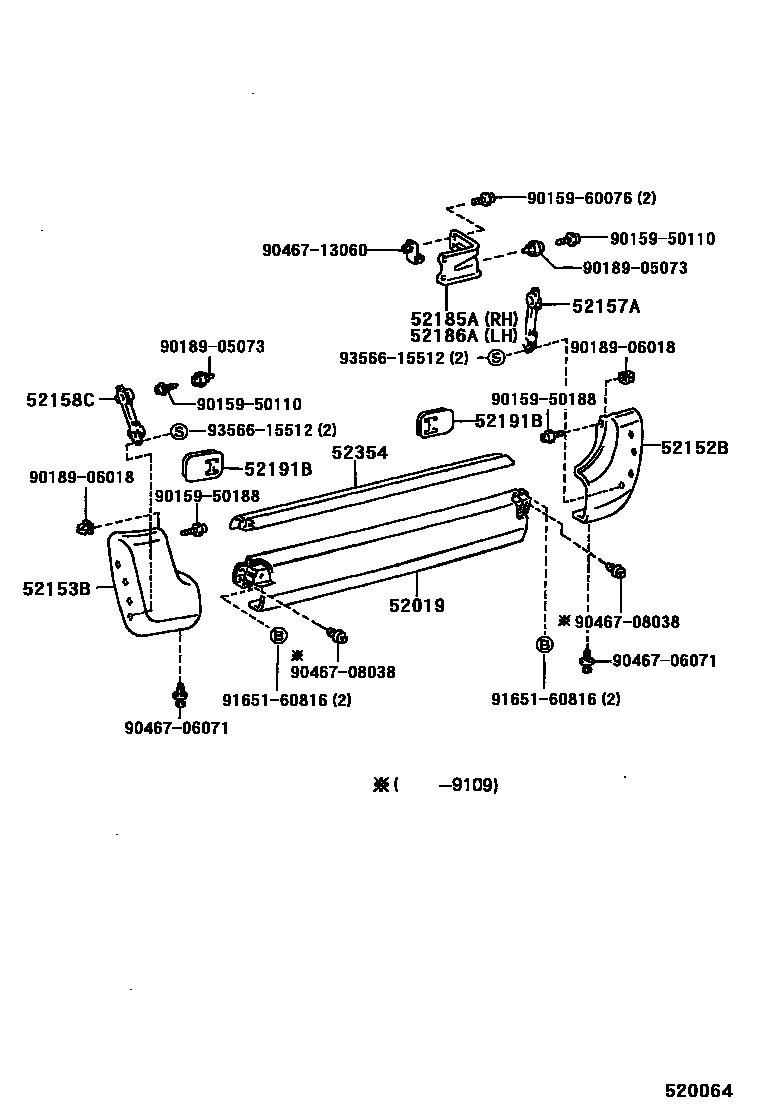

REAR BUMPER & BUMPER STAY

0001 1 0002 1W(STEP) 0003 1EXCELLENT PACKAGE 0004 1 0005 1EXCEPT CIS(SEVERE USAGE PACKA0006 1W(STEP)

52019BAR SUB-ASSY, REAR BUMPER

main52019-95J31iRZH113..LHD..EFI199608-199907

52152BEXTENSION, REAR BUMPER, RH

main52165-95J01iLH10#,11#,125,RZH10#,11#,125..STD198908-199308

main52165-95J02iLH113,RZH113..03S199001-199308

W(DOUBLE SWING BACK DOOR)

52153BEXTENSION, REAR BUMPER, LH

main52166-95J01iRZH113..STD..EFI;LH102,103,104,11#,RZH102,104,112,114..STD..(CIS,GEN)199308-199508

main52166-95J02iLH113,RZH113..03S199001-199308

W(DOUBLE SWING BACK DOOR)

52157ASUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-95J00iRZH103..03S..GEN200108

main52157-95J01iRZH113..LHD..EFI199508-199907

W(DOUBLE SWING BACK DOOR)

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-95J00iRZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#199907

main52158-95J01iRZH113..LHD..EFI199508-199907

W(DOUBLE SWING BACK DOOR)

52185ABRACKET, REAR BUMPER SIDE, RH

main52185-95J02iRZH113..LHD..03S..GEN199907-200501

52186ABRACKET, REAR BUMPER SIDE, LH

main52186-95J02iLH113,RZH113..03S199001-199308

52191BGROMMET, REAR BUMPER STAY

main52191-95J00×2iLH162..4FC;RZH112..4D..06S199907-200108

52354SHUTTER, REAR CROSS TO BUMPER

main52353-26010iRZH103..GL;LH112..RHD..SRF..03S199011-199012

RH

main52353-26020iRZH103..03S..GEN200108-200201

RH

main52354-26010iRZH103..GL;LH112..RHD..SRF..03S199011-199012

LH

main52354-26020iRZH113..LHD;RZH105,115..CBR;RZH105,115..STD..CIS;RZH113..RHD..4D..STD;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);LH10#,11#,125,166,176,RZH102,103,104,112,114,125,135,153..03S,06S,10S,12S,14S,15S199808-200108

LH

main52354-26021×2iRZH112..5D;RZH112..03S;LH10#,11#,154,16#,17#,184,RZH10#,113,114,115,125,135,15#200201

main52354-95J02×2iLH102,103,112,113,RZH102,103,112,113198908-199010

W(STEP TYPE REAR BUMPER)

main52354-95J03iLH10#,11#,RZH102,103,104,11#..(SGL,STD)..(CIS,GEN)199508-199608

main52354-95J04iRZH103..GL;LH112..RHD..SRF..03S198908-199011

9015950110

main90159-50110

9015950188

main90159-50188

9015960076

main90159-60076

9018905073

main90189-05073

9018906018

main90189-06018

9046706071

main90467-06071

9046708038

main90467-08038

9046713060

main90467-13060

9165160816

main91651-60816

9356615512

main93566-15512

19 parts on this diagram · 6 diagrams in section
