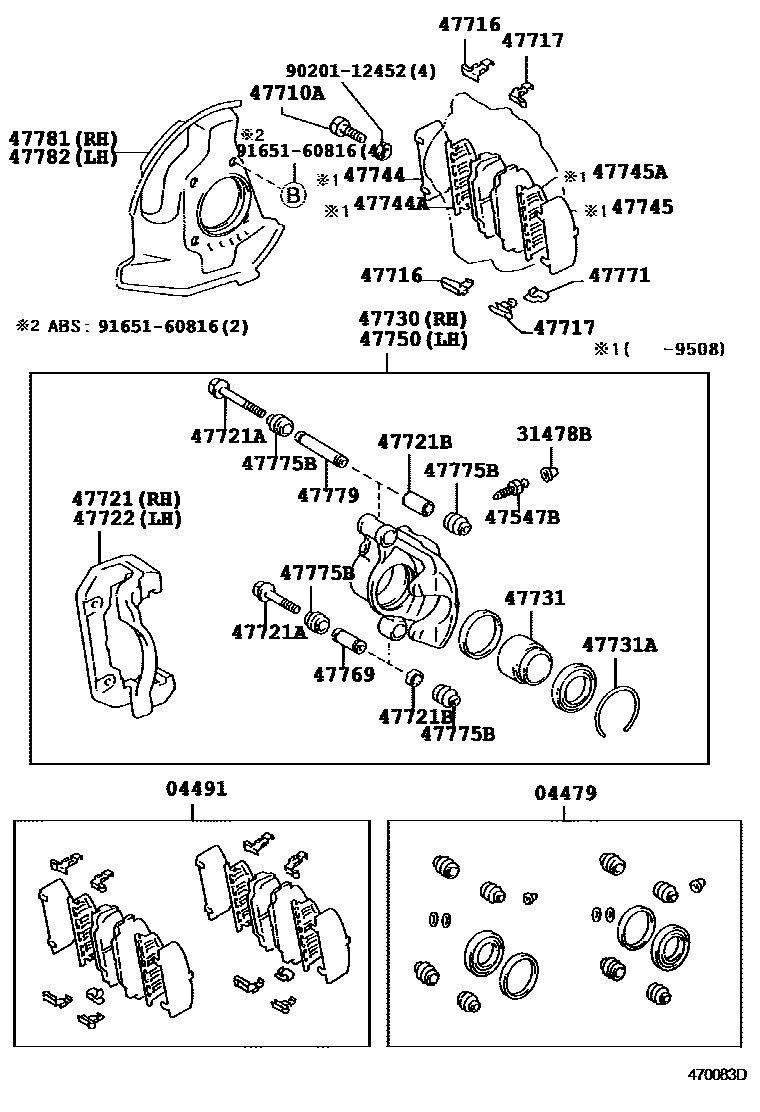

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0005 1W(15 INCHES DISC WHEEL) 0008 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-26040iRZH115..12S200208-200510

main04479-26060iRZH113..STD..(GCC,GEN);RZH103,135..(03S,12S)..GEN;LH125,RZH114,153..(03S,14S,15S)..5F;LH102,103,104,11#,RZH102,104,105,112,115..(03S,06S,12S,15S)..(ARL,GCC,GEN)..(C199907-199910

W(15 INCHES DISC WHEEL)

main04479-26061iRZH115..STD..GEN200108-200308

W(195/70R15C TIRE)

sub04478-26030

04491PAD KIT, DISC BRAKE, FRONT

main04491-26240iLH10#,11#,125,RZH10#,11#..(GL,STD)..(CIS,GCC,GEN)199308-199411

main04491-26250iLH104,114,RZH104,114..LHD..SRF199008-199110

W(FRONT DISC BRAKE)

main04491-26280iLH104,114,RZH104,114..LHD..SRF199110-199203

W(FRONT DISC BRAKE)

main04491-26310iLH103,113,125,RZH103,113,125..ARL199308-199505

main04491-26340iLH112,RZH113..DX199405-199411

sub04465-26160

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iRZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#199907

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010×2iRZH112..4D..06S199907-200208

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12132×4iRZH112..5D;RZH112..03S;LH10#,11#,125,154,162,164,172,174,184,RZH10#,113,114,115,125,135,15#199907

*12-1.25P-31X20

main90101-12149×4iLH166,176199808-199907

*12-1.25P-41X20

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-26040×4iLH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN199907

main47716-26050×4iRZH112..4D..06S199907-200208

W(15 INCHES DISC WHEEL)

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-26010×4iLH10#,11#,125,RZH10#,11#,125..GL,STD198908-199411

main47717-26020×4iRZH115..STD..GEN200108

W(15 INCHES DISC WHEEL)

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-26080iRZH103..03S..GEN200208

main47721-26100iLH10#,11#,125,RZH10#,11#,125199508-199510

W(15 INCHES DISC WHEEL)

main47721-26101iLH10#,11#,125,RZH10#,11#,125,135,153199510-199703

W(15 INCHES DISC WHEEL)

sub47721-26H00

sub47721-26H10

sub47721-26H20

sub47721-26H30

sub47721-26H40

main47721-26102iRZH115..STD..GEN200108-200309

W(15 INCHES DISC WHEEL)

main47721-26103iLH172..RHD..SRF..4D..03S..STD..GEN200309-200501

W(15 INCHES DISC WHEEL)

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-10014×2iLH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN199907

*10-1.25PX65.5-30

main90119-10249×2iRZH103..03S..GEN200208

*10-1.25PX95.5-30

main90119-10388×2iLH10#,11#,125,RZH10#,11#,125198908-198910

*10-1.25PX65.5-30

main90119-10389×2iLH10#,11#,125,RZH10#,11#,125198908-198910

*10-1.25PX95.5-30

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-16004×2iLH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN199907

SUB

main90387-16005×2iRZH103..03S..GEN200208

MAIN

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-26080iRZH103..03S..GEN200208

main47722-26030iLH10#,11#,125,RZH10#,11#,125199508-199510

W(15 INCHES DISC WHEEL)

main47722-26031iLH10#,11#,125,RZH10#,11#,125,135,153199510-199703

W(15 INCHES DISC WHEEL)

sub47722-26H00

sub47722-26H10

sub47722-26H20

sub47722-26H30

sub47722-26H40

main47722-26032iRZH115..STD..GEN200108-200309

W(15 INCHES DISC WHEEL)

main47722-26033iLH172..HRF;LH172..5D..GEN;LH172..ARL,GCC;LH172..GL..DSL;RZH112,115..SRF..STD;LH172,RZH115..LHD..4D..(03S,12S);LH172,174..4D..(06S,15S)..(GCC,GEN);LH10#,11#,162,176,200309

W(15 INCHES DISC WHEEL)

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-26060iRZH103..03S..GEN200208

main47730-26120iLH112,RZH113..DX199405-199411

main47730-26121iLH10#,11#,125,RZH10#,11#,125,135,153199510-199703

W(15 INCHES DISC WHEEL)

sub47730-26H00

sub47730-26H10

sub47730-26H20

main47730-26122iRZH115..STD..GEN200108

W(15 INCHES DISC WHEEL)

main47730-26132iLH166,176199907-200408

47731PISTON, FRONT DISC BRAKE

main47731-25010×2iRZH112..4D..06S199907-200208

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-76001×2iRZH112..4D..06S199907-200208

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-26060×2iLH10#,11#,125,RZH10#,11#..(GL,STD)..(CIS,GCC,GEN)199308-199411

main47745-26060×2iLH103,113,125,RZH103,113,125..ARL199308-199508

main47745-26080iLH112,RZH113..DX199405-199411

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47744-26070×2iLH103,113,125,RZH103,113,125..ARL199308-199508

main47744-26090iLH112,RZH113..DX199405-199411

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47744-26060×2iLH112,RZH104,112,114..GL,STD;LH10#,113,114,115,RZH102,103,105,113,115..STD..(GCC,GEN)199411-199508

main47745-26060×2iLH103,113,125,RZH103,113,125..ARL199308-199508

main47745-26080iLH112,RZH113..DX199405-199411

47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)

main47744-26070×2iLH104,114,RZH104,114..LHD..SRF199111-199304

main47744-26090iLH112,RZH113..DX199405-199411

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-26060iRZH103..03S..GEN200208

main47750-26120iLH10#,11#,125,RZH10#,11#,125199508-199510

W(15 INCHES DISC WHEEL)

main47750-26121iLH10#,11#,125,RZH10#,11#,125,135,153199510-199703

W(15 INCHES DISC WHEEL)

sub47750-26H00

sub47750-26H10

sub47750-26H20

main47750-26122iRZH103..RHD..EFI;RZH115..STD..CBR;RZH113..4D..STD..EFI;RZH105,115..STD..CIS;LH172..RHD..SRF..4D..STD..GEN;LH172,174,184..(03S,10S,15S)..GL;RZH103,105,113,115..(03S,199703-200108

W(15 INCHES DISC WHEEL)

main47750-26132iLH166,176199907-200408

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-40010×2iRZH103..03S..GEN200208

main47769-50010×2iRZH115..STD..GEN200108

W(15 INCHES DISC WHEEL)

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-26030iRZH115..STD..GEN200108

W(15 INCHES DISC WHEEL)

main47771-35010×2iRZH103..03S..GEN200208

47775BBOOT, BUSH DUST, NO.1

main47775-26020×8iLH174..STD..(GCC,GEN);RZH112,115..LHD..(06S,15S);LH184,RZH105,112..03S,12S,14S;LH102,103,104,11#,125,162,172,RZH102,103,104,113,114,125..ARL,GCC,GEN199907

main47775-30070×4iLH103..4D..GEN;RZH102,103..03S..GEN199910

W(195/70R15C TIRE)

main47775-50010×4iRZH115..CBR;RZH115..CIS;RZH115..12S;LH10#,11#,125,16#,17#,184,RZH10#,112,113,114,125,135,153199907-199910

W(15 INCHES DISC WHEEL)

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-40010×2iLH10#,11#,125,RZH10#,11#,125..GL,STD198908-199411

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-26010iRZH115..STD..GEN200108

W(15 INCHES DISC WHEEL)

main47703-26040iLH172..5F..ARL;LH162,184,RZH103,113,125..ARL200108-200501

W(ABS & 15 INCHES DISC WHEEL)

main47781-26070iRZH115..15S;LH184,RZH105..12S,14S;LH174..STD..(GCC,GEN);LH102,103,104,11#,125,162,172,RZH102,103,104,112,113,114,125..ARL,GCC,GEN199907

main47781-26110iLH166,176199808-199907

sub91611-60812

main47781-26111iLH166,176200001-200408

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-26010iLH112,RZH113..DX199405-199411

main47704-26040iLH113,115,RZH105,113,115..GCC199808-199907

W(ABS)

main47782-26070iRZH103..03S..GEN200208

main47782-26110iLH166,176199808-199907

sub91611-60812

main47782-26111iLH166,176200001-200408

9020112452

main90201-12452

9165160816

main91651-60816
