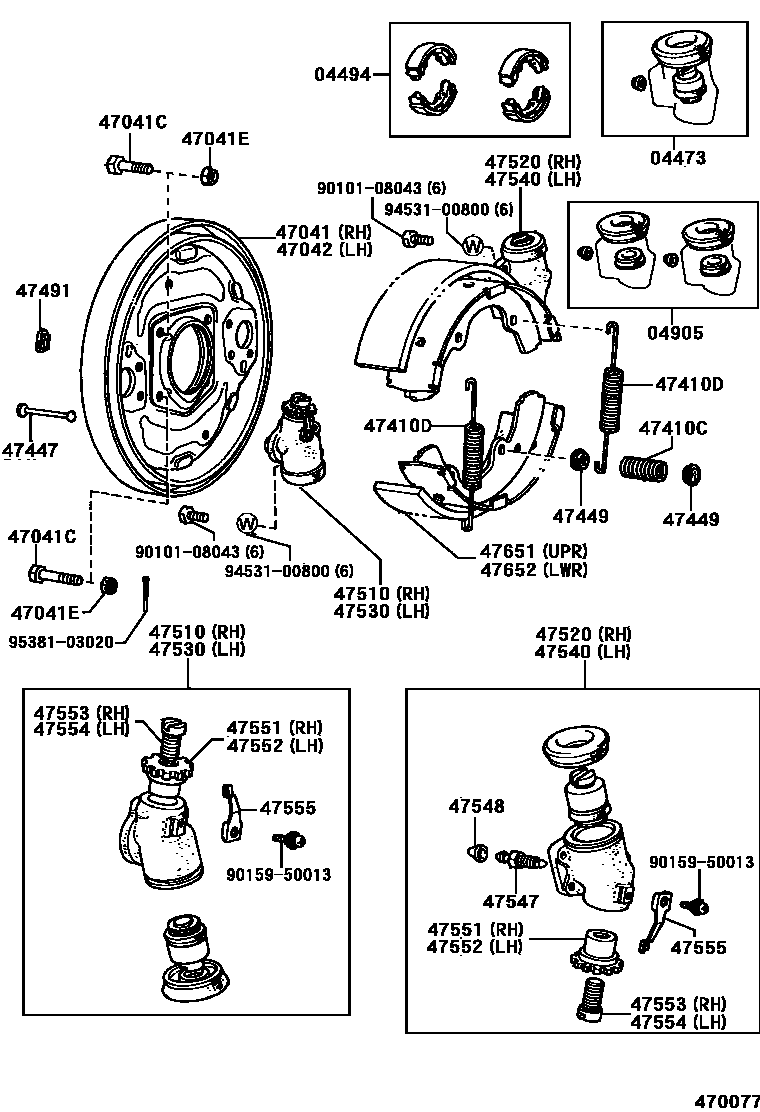

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04473CYLINDER KIT, FRONT WHEEL

main04473-26020×4iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

04494SHOE KIT, FRONT BRAKE

main04494-30031iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

sub04494-26060

04905CUP KIT, FRONT WHEEL CYLINDER

main04905-35050iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-26050iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

47041CBOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)

main90101-12060×4iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

*12-1.25PX38-23

47041ENUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)

main90179-12029×4iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47042-26050iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

main90501-20756×4iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

47410DSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-23005×4iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47447-22010×4iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

47449CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47449-30020×8iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-36010×4iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

sub47491-36020

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47520-26030iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47510-26060iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47540-26030iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47530-26060iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-20030×2iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010×2iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47551-26030×2iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47552-26030×2iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47553-26020×2iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47554-26020×2iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

main47555-26030×4iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

47651LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER)

main47651-30080×2iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

47652LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER)

main47651-30080×2iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

9010108043

main90101-08043

9015950013

main90159-50013

9453100800

main94531-00800

9538103020

main95381-03020

29 parts on this diagram · 1 diagram in section
