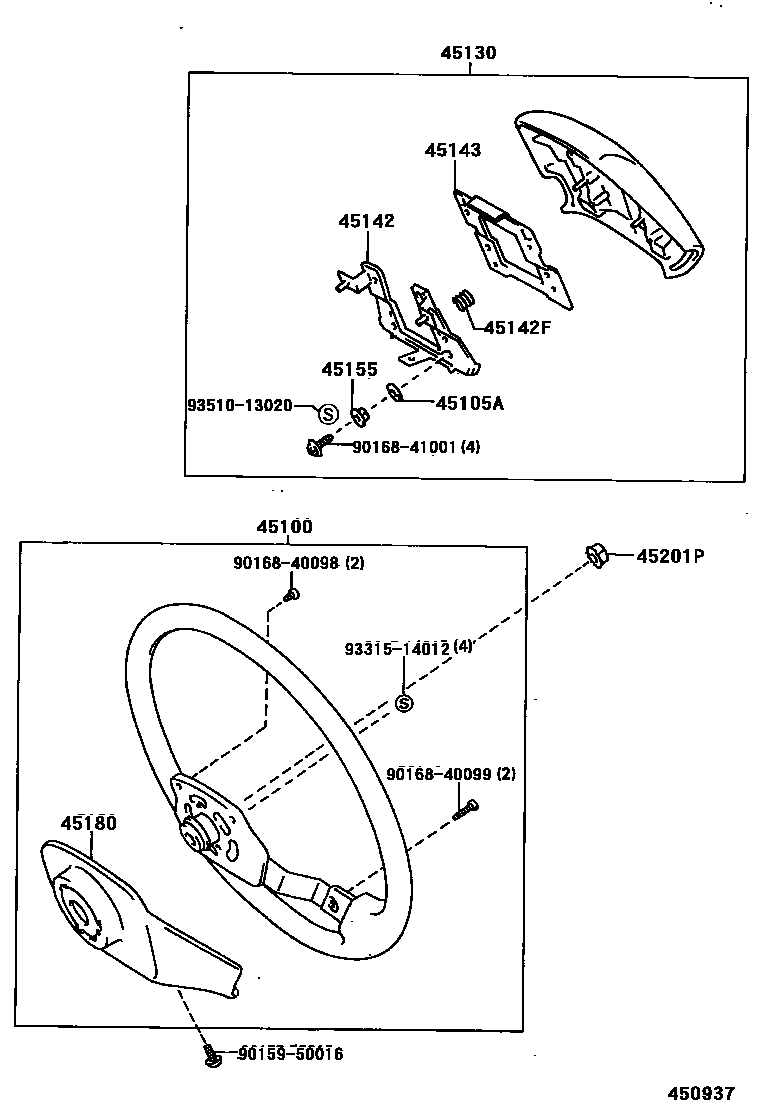

STEERING WHEEL

0001 12-SPOKE(PP:POLYPROPYLENE) 0002 12-SPOKE(PP:POLYPROPYLENE) 0003 12-SPOKE(URETHANE) 0004 12-SPOKE 0005 12-SPOKE(URETHANE) 0006 12-SPOKE(URETHANE),W(*80)

45100WHEEL ASSY, STEERING

main45100-26140-03iLH10#,11#,125,RZH10#,11#,125..STD198908-199308

2SPOKE,POLYPROPYLENE,GRAY,TRIM1#

main45100-26140-B0iRZH155..GEN199907-200501

2SPOKE,POLYPROPYLENE,BLUISH GRAY,TRIM1#

main45100-26150-03iLH10#,11#,125,RZH10#,11#,125198908-199308

2-SPOKE,URETHANE,GRAY,TRIM1#

main45100-26150-B0iLH10#,11#,125,RZH10#,11#,125,135,153199408-199808

2-SPOKE,URETHANE,BLUISH GRAY,TRIM1#

main45100-26220-B0iRZH103..03S..GEN200108

2-SPOKE,URETHANE,BLUISH GRAY,TRIM1#

main45100-26220-E0iLH154,RZH153..03S,10S199907-200501

2-SPOKE,URETHANE,ANTELOPE,TRIM4#

main45100-26230-B0iRZH112..4D..06S199907-200211

2SPOKE,POLYPROPYLENE,BLUISH GRAY,TRIM1#

main45100-26250-B0iLH162..4FC..GEN;RZH113..RHD..06S;RZH113,115..GCC..EFI;LH103,172,RZH103..5D..06S199907-200508

2-SPOKE,URETHANE,W(*80,DRIVER SIDE),BLUISH GRAY,TRIM1#

main45100-26250-E1iRZH153200008-200501

2-SPOKE,URETHANE,W(AIR BAG),ANTELOPE,TRIM4#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-12200iRZH103..03S..GEN200208

main45105-26040iLH103,113,125,RZH103,113,125..STD..ARL198908-199308

main45105-26050iRZH103..SGL;RZH103..RHD..CBR;RZH113..LHD..EFI;LH112,RZH113..CBR,DSL;LH10#,113,114,115,125,RZH102,104,105,112,114,115,125..DX,STD198908-199808

W(URETHANE STEERING WHEEL)

main45105-26100iRZH103..03S..GEN200108

W(URETHANE STEERING WHEEL)

45105ACUSHION(FOR HORN BUTTON CONTACT PLATE)

main90540-08014×4iLH10#,11#,125,RZH10#,11#..(GL,STD)..(GCC,GEN)198908-199411

45130BUTTON ASSY, HORN

main45130-26140-03iLH10#,11#,RZH10#,11#..GEN198908-199308

GRAY,TRIM1#

main45130-26140-B0iLH104,RZH104..CIS199704-199705

UKRAINA SPEC,BLUISH GRAY

main45130-26150-03iLH103,113,125,RZH103,113,125..STD..ARL198908-199308

GRAY,TRIM1#

main45130-26150-B0iLH112,RZH113..DX;LH104,112,114,RZH104,112,114..CIS199403-199808

BLUISH GRAY,TRIM1#

main45130-26160-03iLH10#,11#,RZH102,104,11#..GEN198908-198910

W(URETHANE STEERING WHEEL),GRAY,TRIM1#

main45130-26161-03iLH10#,11#,RZH10#,11#..GEN198910-199205

W(URETHANE STEERING WHEEL),GRAY,TRIM1#

main45130-26181-B0iLH104,112,114,RZH104,112,114..CIS199308-199403

W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1#

main45130-26190-03iLH103,113,125,RZH103,113,125..ARL198908-198910

W(URETHANE STEERING WHEEL),GRAY,TRIM1#

main45130-26191-13iLH10#,11#,125,RZH10#,11#,125199205-199308

W(URETHANE STEERING WHEEL),GRAY,TRIM1#

main45130-26191-B0iRZH104..GL199611-199808

W(URETHANE TYPE STEERING WHEEL),BLUISH GRAY,TRIM1#

main45130-26210-B0iLH104,112,114,RZH104,112,114..CIS199308-199403

BLUISH GRAY,TRIM1#

main45130-26220-B0iRZH114..LHD..SRF..5F..GEN198908-199412

CHINA SPEC,BLUISH GRAY,TRIM1#

main45130-26240-B0iRZH115..(CIS,GCC)..EFI;RZH112,115..LHD..(06S,12S);LH154,RZH112,115..(03S,11S,15S)..(CBR,DSL);LH10#,11#,125,16#,17#,184,RZH10#,113,114,125,135,155199907

W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1#

main45130-26240-E1iLH154..10S200008-200501

ANTELOPE,TRIM4#

main45130-26260-B0iRZH103..03S..GEN200208

BLUISH GRAY,TRIM1#

main45130-26290-B0iLH103,113,115,125,RZH103,105,113,115,125..ARL,GCC199808-199907

W(AIR BAG),BLUISH GRAY,TRIM1#

main45130-26340-B0iLH125..4FC;RZH103,113..ARL;RZH113..4D..06S;RZH103,125..SG..STD;LH103,RZH105..SG..(CBR,DSL);LH113,115,RZH113,115..GCC..(CBR,DSL)199907-200508

W(*80,DRIVER SIDE),BLUISH GRAY,TRIM1#

main45130-26340-E0iRZH153200008-200501

ANTELOPE,TRIM4#

45142SEAT, HORN BUTTON CONTACT, NO.1

main45142-12090×2iLH10#,11#,125,RZH10#,11#,125198908-199308

main45142-26030iRZH115..STD..GEN..EFI199907

45142FSPRING(FOR HORN BUTTON CONTACT SEAT)

main90501-09106×4iLH10#,11#,125,RZH10#,11#..(GL,STD)..(GCC,GEN)198908-199411

45143SEAT, HORN BUTTON CONTACT, NO.2

main45143-26020iLH10#,11#,125,RZH10#,11#..(GL,STD)..(GCC,GEN)198908-199411

45155SPACER, HORN BUTTON CONTACT PLATE

main45155-12050×3iLH172..4FC;RZH114..12S199907-200208

W(URETHANE STEERING WHEEL)

main45155-22040×4iLH112,RZH113..(GL,STD)..(GCC,GEN);LH10#,113,114,115,RZH10#,112,114,115..(DX,STD)..(GCC,GEN)199411-199608

45180COVER SUB-ASSY, STEERING WHEEL

main45180-26010-03iLH114..HRF;LH114,115,RZH104,114..LHD;LH10#,112,113,RZH102,103,105,112,113,115..CIS,GCC,GEN199411-199508

GRAY,TRIM1#

main45180-26010-B0iRZH115..15S..GEN..EFI199907-200508

CHINA SPEC,BLUISH GRAY,TRIM1#

main45180-26020-03iLH10#,11#,125,RZH10#,11#,125198908-199508

W(URETHANE STEERING WHEEL),GRAY,TRIM1#

main45180-26020-B0iLH125..STD;LH125,RZH103..(SMRF,SRF)..(GL,SGL,STD);LH10#,11#,RZH102,104,105,11#,125,135,153199508-199808

W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1#

main45180-26030-B0iLH172..RHD;RZH115..STD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105,115..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,103,104,112,113,114,125,135,153..03199808-200008

W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1#

main45180-26030-E0iRZH153199907-200501

W(URETHANE STEERING WHEEL),ANTELOPE,TRIM4#

main45180-26040-B0iRZH104..LHD..STD;LH174,RZH115..STD..CIS;LH162,RZH103..STD..GEN;LH102,104,164,166,176,RZH105..(03S,12S,15S)..(DSL,EFI)199907-200408

BLUISH GRAY,TRIM1#

45201PNUT, STEERING WHEEL SET

main90179-12071iRZH112..4D..06S199907-200211

main90179-12086iLH10#,11#,125,RZH10#,11#,125198908-199304

9015950016

main90159-50016

9016840098

main90168-40098

9016840099

main90168-40099

9016841001

main90168-41001

9331514012

main93315-14012

9351013020

main93510-13020

16 parts on this diagram · 6 diagrams in section
