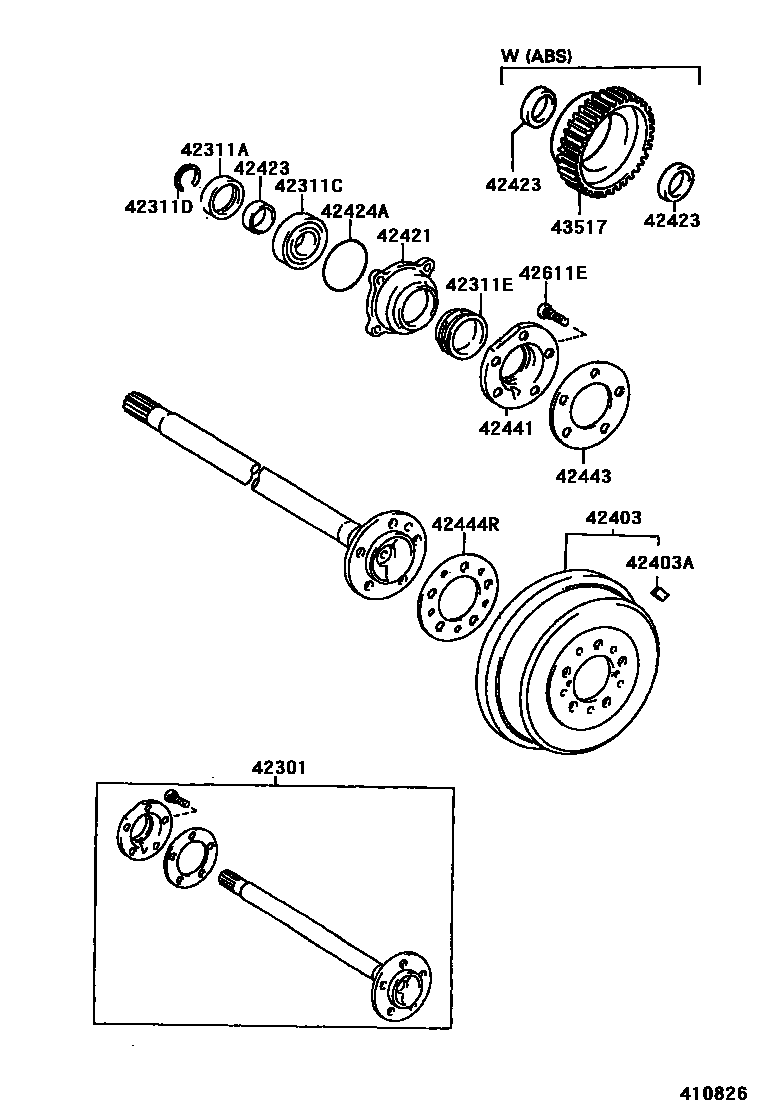

REAR AXLE SHAFT & HUB

42301SHAFT SUB-ASSY, REAR AXLE

main42301-26906×2iLH10#,11#,125,RZH10#,11#,125,135,153198908-199808

main42301-26908×2iLH166,176199907-200101

main42301-26913×2iLH113,115,RZH105,113,115..GCC199808-199907

W(ABS)

main42301-26939×2iLH10#,11#,154,162,164,172,174,184,RZH10#,11#,125,135,15#200101

main42301-26940×2iLH166,176200101-200408

main42301-26941×2iRZH155..GEN;LH172,174,RZH105,113,115..GCC200101-200501

W(ABS)

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90310-50001×2iLH10#,11#,125,RZH10#,11#,125,135,153198908-199808

main90310-50005×2iLH162,172..4FC;RZH103,113..GCC,GEN;LH184,RZH105,135,153..03S,12S,14S;LH104,11#,154,164,166,17#,RZH102,104,112,114,115,155..LHD200110-200205

42311CBEARING(FOR REAR AXLE SHAFT)

main90363-40020×2iLH10#,11#,125,RZH10#,11#,125198908-199808

main90363-40041×2iLH154,166,176,RZH135,15#199907-200101

main90363-40068×2iRZH112..4D..06S200101-200208

NACHI

main90363-40072×2iRZH112..5D;RZH112..03S;LH10#,11#,154,16#,17#,184,RZH10#,113,114,115,125,135,15#200101

KOYO

42311DRING, SNAP(FOR REAR AXLE SHAFT)

main90520-36045×2iLH115..RHD;LH115..CIS,GCC;LH10#,112,113,114,125,166,17#,184,RZH10#,11#,125,135,153199808-199907

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90313-48001×2iLH10#,11#,125,RZH10#,11#,125,135,153198908-199808

main90313-54001×2iRZH112..4D..06S200101-200208

42403DRUM SUB-ASSY, REAR BRAKE

main42431-26080×2iLH10#,11#,125,RZH10#,11#,125198908-199101

main42431-26081×2iRZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,RZH102,104,112,113,114..LHD199508-200008

main42431-26140×2iRZH114..RHD199608-199611

main42431-26141×2iRZH112..4D..06S199907-200208

main42431-26150×2iLH166,176199907-200408

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117iLH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15#199907

10G

main90937-01118iLH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15#199907

20G

main90937-01119iLH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15#199907

30G

main90937-01195iLH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15#199907

40G

main90937-01196iLH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15#199907

50G

main90937-01450iLH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153199308-199907

40G

main90937-01451iLH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153199308-199907

50G

42421CASE, REAR AXLE BEARING

main42421-35030×2iLH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15#199907-200101

main42421-35050×2iRZH112..4D..06S200101-200208

42423RETAINER, REAR AXLE BEARING, INNER

main42423-20010×4iLH113,115,RZH105,113,115..GCC; LH115..RHD;LH115..CIS,GCC;LH10#,112,113,114,125,166,17#,184,RZH10#,11#,125,135,153199808-199907

W(ABS)

42424ARING, O (FOR BEARING RETAINER SET)

main90301-88077×2iLH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15#199907

42441DEFLECTOR, BRAKE DRUM OIL

main42441-26010×2iRZH112..4D..06S199907-200208

main42441-35020×2iLH166,176199907-200408

42443GASKET, BRAKE DRUM OIL DEFLECTOR

main42443-30010×2iLH10#,11#,125,RZH10#,11#,125,135,153198908-199808

main42443-55020×2iLH166,176199907-200408

42444RGASKET, BRAKE DRUM (FOR REAR AXLE)

main42444-35050×2iLH166,176199808-199907

main42444-35070×2iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S198908

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02049×10iRZH112..4D..06S199907-200208

main90942-02052×12iLH166,176199907-200408

43517ROTOR, SKID CONTROL, REAR

main43517-35010×2iLH113,115,RZH105,113,115..GCC199808-199907

15 parts on this diagram · 1 diagram in section
