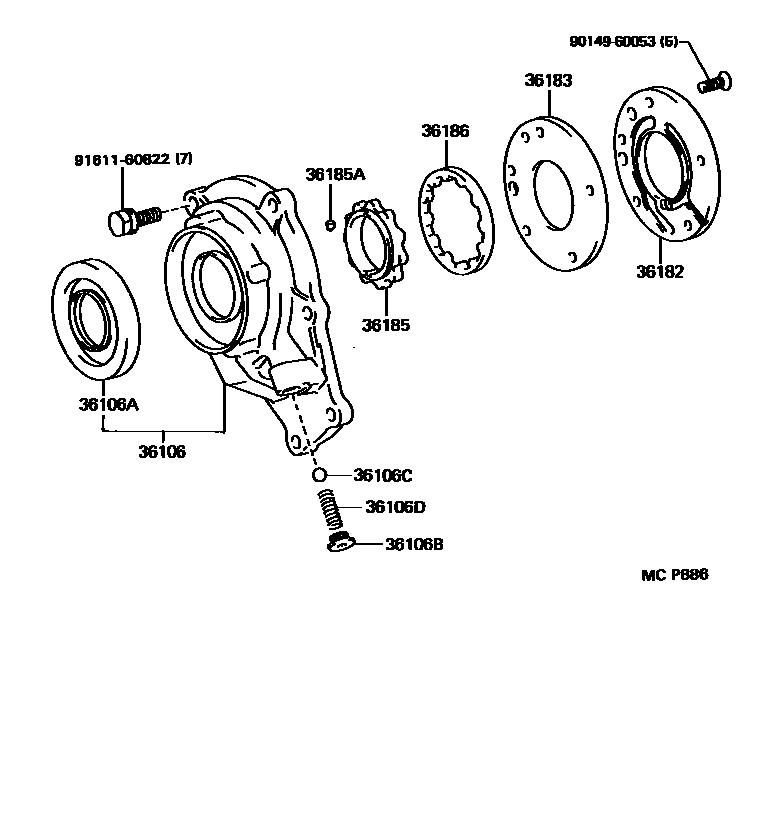

TRANSFER OIL PUMP

36106BODY SUB-ASSY, TRANSFER OIL PUMP

main36106-28050iLH166,176199808-199907

36106ASEAL, OIL (FOR TRANSFER OIL PUMP BODY)

main90316-40003iLH166,176199808-199907

main90316-40004iLH166,176200307-200408

36106BPLUG (FOR TRANSFER OIL PUMP BODY)

main90341-12014iLH166,176199808-199907

36106CBALL (FOR TRANSFER OIL PUMP BODY)

main90360-10003iLH166,176199808-199907

36106DSPRING, COMPRESSION (FOR TRANSFER OIL PUMP BODY)

main90501-09068iLH166,176199808-199907

36182COVER, TRANSFER OIL PUMP

main36182-28020iLH166,176199808-199907

36183PLATE, TRANSFER OIL PUMP

main36183-28020iLH166,176199808-199907

36185ROTOR, TRANSFER OIL PUMP DRIVE

main36185-25010iLH166,176199808-199907

36185APIN, STRAIGHT(FOR TRANSFER OIL PUMP DRIVE ROTOR)

main90250-05025×2iLH166,176199808-199907

36186ROTOR, TRANSFER OIL PUMP DRIVEN

main36186-25010iLH166,176199808-199907

9014960053

main90149-60053

9161160822

main91611-60822

12 parts on this diagram · 1 diagram in section
