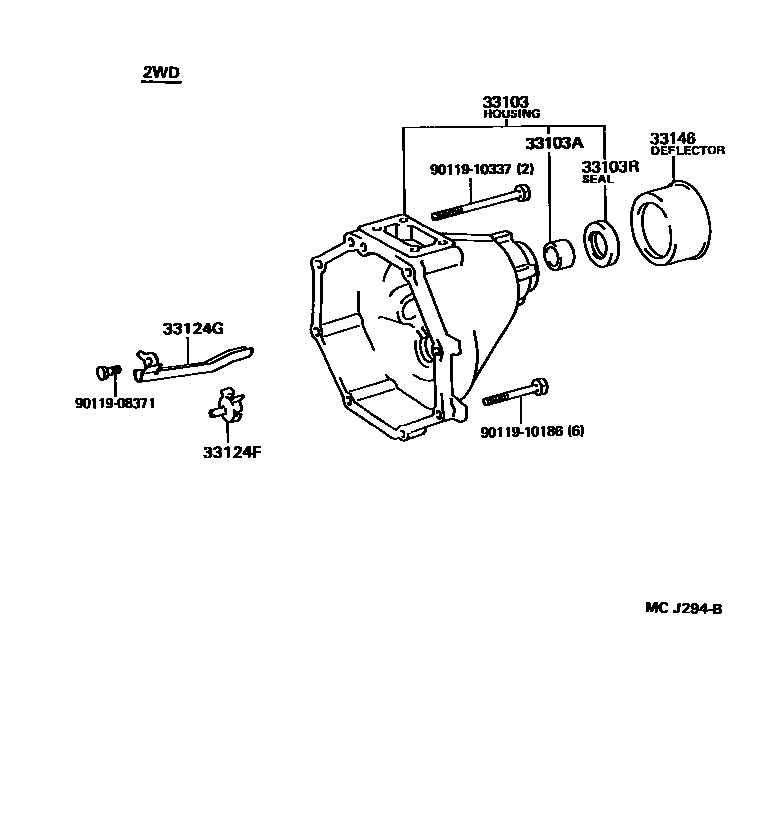

EXTENSION HOUSING (MTM)

0001 1G55 0002 1G52 0003 1G52,G55

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-0W010iRZH114..15S;RZH113..LHD..EFI;RZH115..STD..CBR;LH172,RZH125..RHD..5F;LH10#,11#,125,184,RZH102,104,112..CIS,GEN;RZH103,105,113,115..5F..STD..(ARL,CIS)..EFI;LH174,RZH103,105,113,115..(03S,06S,09S,10S,12S)..5F..(CBR,DSL)199805-200008

TAP:REFER TO ILLUSTRATION

main33103-28031iRZH103..03S..GEN200108-200111

REFER TO ILLUSTRATION

main33103-28041iLH10#,11#,125,RZH10#,11#,125,135,153..4F,5F198908-199806

REFER TO ILLUSTRATION

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-73120iRZH105..LHD..STD;RZH115..STD..CIS;RZH102,112,113,115..SRF..CBR;RZH113..4D..5F..STD..(ARL,GEN);LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,RZH103,104,114,125,135,153..(03S,06S,12S,14S,15S)..5F199907

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38032iRZH114..GL200111

33124FPIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)

main33124-36010iRZH114..GL200111

33124GPIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)

main33124-0L010iLH174..12S;LH114,RZH112,114..RHD..SG;LH172..RHD..SRF..4D..03S..STD..GEN200410

TAP:REFER TO ILLUSTRATION

main33124-28011iLH174,RZH112..SG..(03S,12S)199907-200410

REFER TO ILLUSTRATION

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iRZH103,113,125..5F..ARL200308-200508

main33146-30020iRZH102..03S;LH103..4D..GEN199907-200008

9011908371

main90119-08371

9011910186

main90119-10186

9011910337

main90119-10337

9 parts on this diagram · 3 diagrams in section
