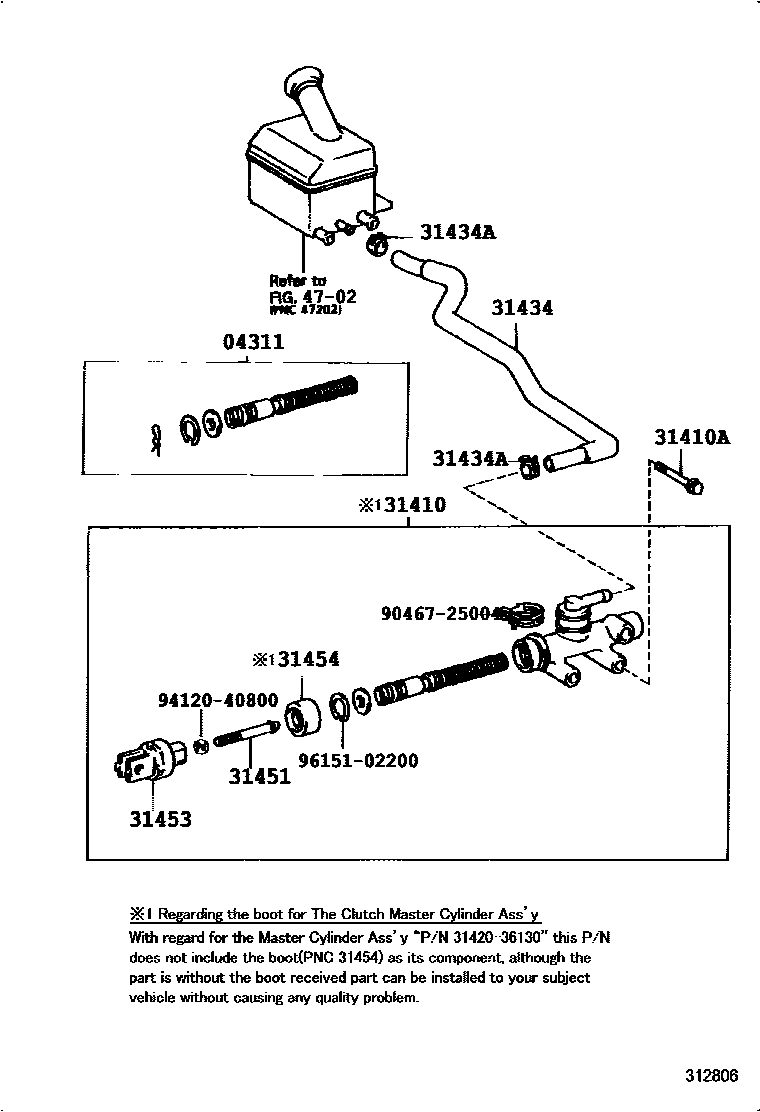

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-26050iRZH105,115..STD..CIS;RZH102,105,113,115..CBR;RZH113..4D..5F..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL199808-200208

main04311-28020iLH10#,11#,125,RZH10#,11#,125..5F199508-199606

main04311-36081iLH10#,11#,125,RZH10#,11#,125..4F,5F198908-199108

main04311-36082iRZH102..03S;LH10#,11#,125,RZH103,104,11#,125..5F199108-199308

main04311-36170iLH10#,11#,125,RZH10#,11#,125,135,153..5F199606-199808

31410CYLINDER ASSY, CLUTCH MASTER

main31420-26170iRZH103,112,113..5F;RZH102,104,114,125..03S,12S,14S,15S199108-199308

sub31420-37050

main31420-36130iLH10#,11#,125..5F198908-199308

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main91611-60865×2iRZH112..4D..06S199907-200208

main91612-60865×2iLH10#,11#,125,RZH10#,11#,125..5F199308-199608

31434TUBE, CLUTCH RESERVOIR

main31434-26190iRZH102,103,104,11#,125..RHD..(4F,5F)198908-199608

W(FRONT DISC BRAKE)

main31434-26200iRZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,125,RZH104,112,114..RHD..(4F,5F)198908-199308

main31434-26210iLH102,104,112,114,RZH102,104,112,114..LHD198908-199108

main31434-26240iLH103,11#,125,172,184..RHD..5F199608-200008

main31434-26250iRZH113..RHD..4D..5F..STD;RZH102,103,104,112,114,115,125,135,153..RHD..5F199608-200208

main31434-26260iLH102,104,105,11#,154,164,166,17#,RZH10#,11#,155..LHD199907-200508

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main90467-16002×2iRZH102;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..5F..STD199608-200208

sub96134-51500

main96132-30800×2iRZH112..4D;RZH102..03S;RZH114..HRF;RZH112..5D..03S;RZH104,114..RHD;LH10#,11#,125,RZH103,113,125..5F199108-199308

sub96132-51300

main96132-41300×2iLH10#,11#,125,RZH10#,11#,125..5F199308-199608

sub96132-51300

main96133-41500×2iRZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#..5F199907

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-35070iRZH10#,11#,125..4F,5F198908-199108

main31451-36040iRZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#..5F199907

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-35011iRZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#..5F199907-200310

main31404-35013iLH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15#..5F200310

main31404-36021iLH10#,11#,125..5F198908-199308

sub31404-36031

main31453-35010iRZH112..4D;RZH114..HRF;RZH112..5D..03S;RZH103,113,114..RHD..5F;RZH102,104,125..03S,12S,14S199108-199308

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iLH10#,11#,125,RZH10#,11#,125..4F,5F198908-199108

4702

9046725004

main90467-25004

9412040800

main94120-40800

9615102200

main96151-02200

12 parts on this diagram · 1 diagram in section
