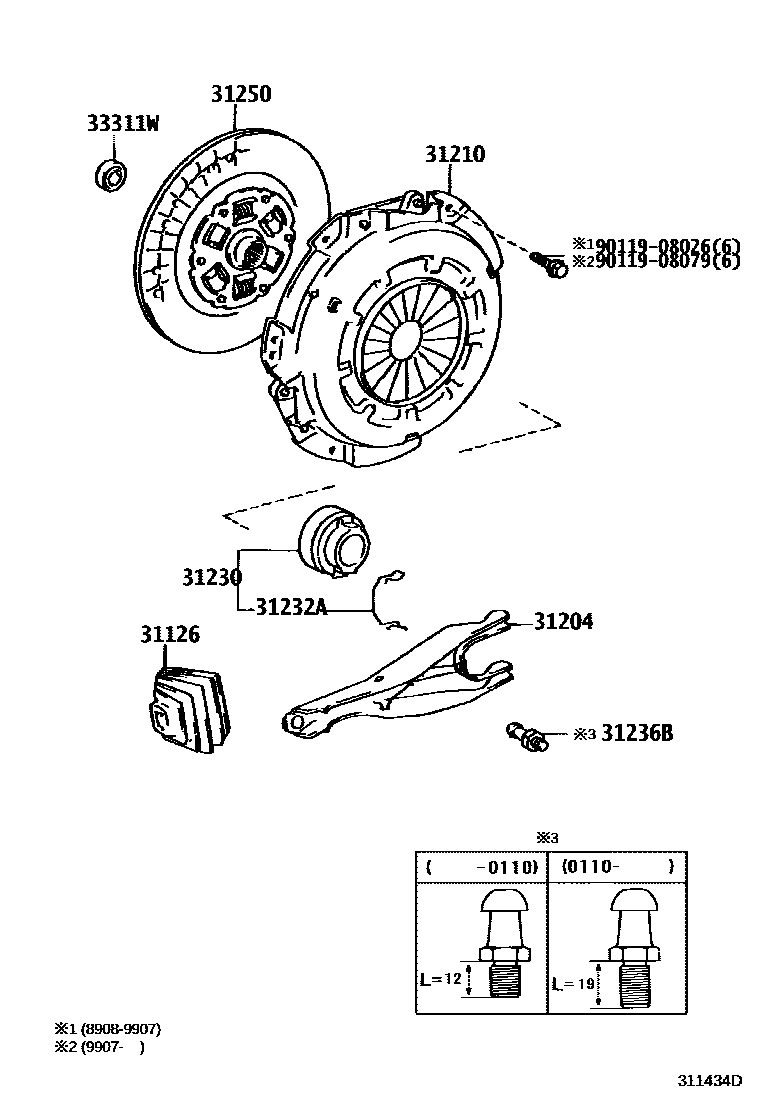

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iLH174..GL;LH172..RHD;LH10#,11#,125,166,176,184..5F198908-200008

main31126-26020iRZH114..15S;RZH10#,112,113,115,125,135,15#..5F199907

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iRZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F199907

31210COVER ASSY, CLUTCH

main31210-26110iRZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;RZH102,104,112,114,125,135,153..5F;RZH113..4D..5F..STD..(ARL,GEN)..EFI199508-200208

main31210-26120iRZH103..03S..GEN200308

main31210-26121iRZH11#200603

main31210-26150iRZH113..EFI199405-199508

main31210-26160iLH10#,11#,154,16#,17#,184..5F200407-200602

main31210-26161iLH114,17#200603

main31210-35090iLH102,104,112,114198908-199108

main31210-35100iLH10#,11#..GEN199108-199308

main31210-35121iLH174..GL;LH172..RHD;LH10#,11#,125,166,176,184..5F199508-200008

main31210-35122iLH10#,11#,154,16#,17#,184..5F200102-200407

31230BEARING ASSY, CLUTCH RELEASE

main31230-35060iLH103,105,113,115,125..5F198908-199308

main31230-35061iLH10#,11#,154,16#,17#,184..5F200302-200602

main31230-35070iLH104,112,114..CIS199308-199508

main31230-35090iRZH10#,11#,125,135,153..4F,5F198908-199907

31232ACLIP, RELEASE BEARING HUB

main31232-35020iLH174..12S;LH172..DEFI; RZH115..SGL;RZH114..15S..GL;RZH104,112..RHD..SG;LH172,RZH104..SG..GL..(CBR,DSL);LH103,113,115,RZH102,115..STD..(CIS,GEN)..(CBR,DSL);LH102,105,112,174,RZH105..LHD..(06S,10S,12S)..(CBR,DSL)199907

TYPE A:REFER ILLUST.; TYPE A:REFER TO ILLUSTRATION

main31232-35030iLH172..DEFI; LH172..HRF;LH172..5D..GEN;LH172..LHD..4D;LH172..ARL,GCC;LH172..GL..DSL;LH172,174..4D..(06S,15S)..DSL;LH10#,11#,154,16#,176,184..5F200302-200602

TYPE B:REFER ILLUST.

main31232-35040iRZH115;RZH114,125..(14S,15S)..5F;RZH10#,112,113,135,15#..(SMRF,SRF)..5F199907-200602

TYPE C:REFER ILLUST.

31236BSUPPORT, RELEASE FORK

main31236-26010iRZH105,135;RZH112..RHD..SP;RZH113..RHD..GEN;RZH113..5F..(ARL,GCC);RZH113..LHD..03S..GEN;LH10#,112,154,164,166,176,RZH102,104,112,115,155..LHD;LH114,162,172,174,184,RZH103,114,125,153..(03S,06S,10S,14S,15S)..5F; RZH112..4D..SG;RZH113..LHD..06S..GEN;LH112,174..RHD..(03S,06S,12S)200110-200602

main31236-30060iRZH102;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..5F..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,112,114,125,135,153..(03S,06S,09S,12S,14S,15S)..(4F,5F)198908-200110

31250DISC ASSY, CLUTCH

main31250-25130iLH10#,11#,125..5F..(ARL,GCC,GEN)199308-199508

main31250-25144iLH114,17#200501

main31250-26160iRZH103..5F..(GL,SGL,STD);RZH102,104,105,11#,125,135,153..4F,5F198908-199708

main31250-26180iLH10#,11#,125..5F199508-199612

main31250-26181iLH10#,11#,125,154,16#,17#,184..5F199907-200012

main31250-26182iLH10#,11#,154,16#,17#,184..5F200012-200412

main31250-26200iRZH10#,11#,125,135,15#..5F; RZH103..03S..GEN200308

main31250-35220iLH10#,11#..GEN198908-199308

main31250-35221iLH104,112,114..CIS199505-199508

main31250-35380iRZH10#,11#,125,135,153..5F199708-199901

main31250-35381iRZH112..4D..06S199907-200208

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLH103..4D..GEN200006-200008

main90363-12020iRZH112..5D;RZH112..03S;RZH10#,113,114,115,125,135,15#..5F200006-200602

9011908026

main90119-08026

9011908079

main90119-08079

10 parts on this diagram · 2 diagrams in section
