21015HOUSING SUB-ASSY, COIL

main21015-72030i199608-199704

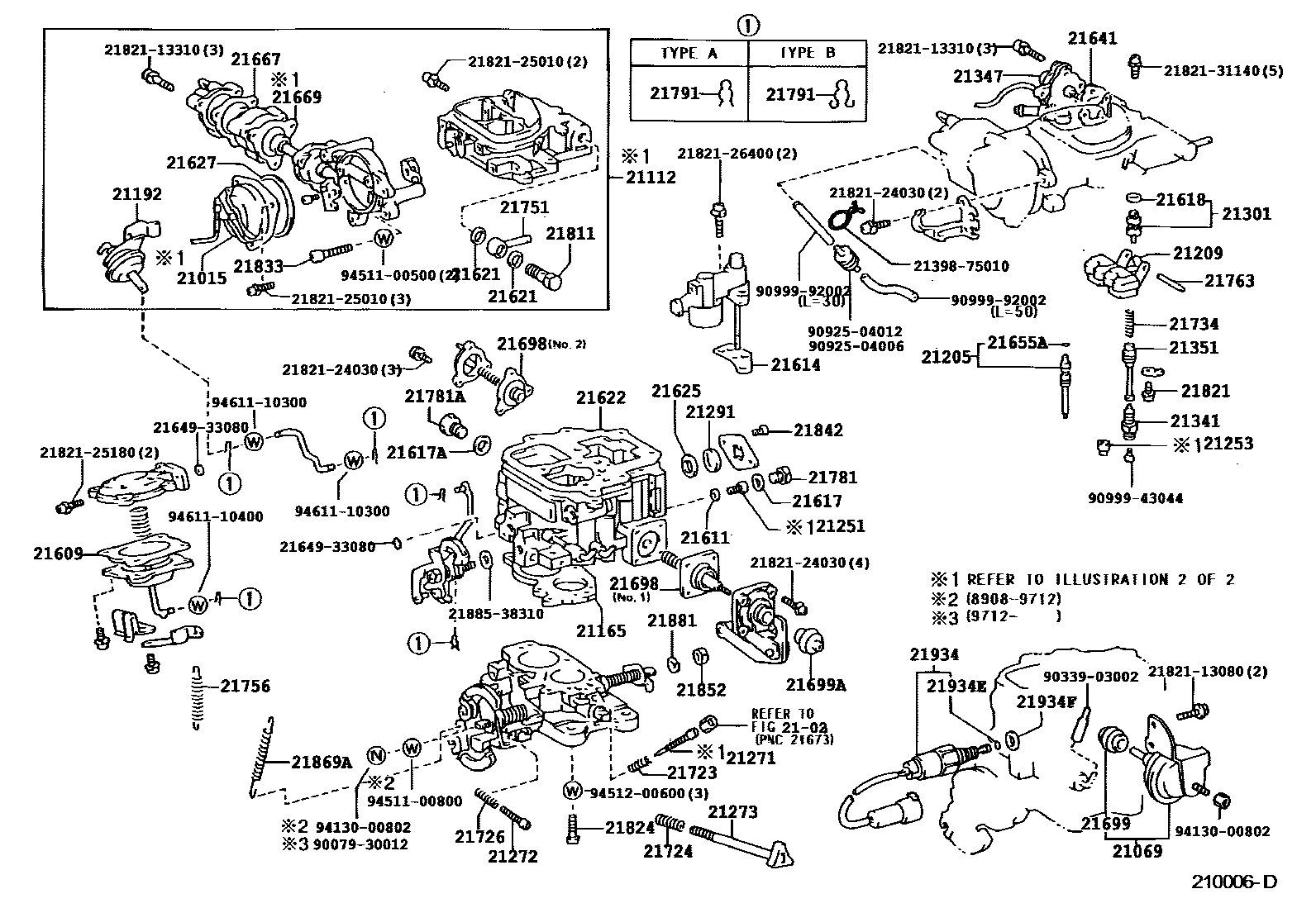

TYPE A:REFER TO ILLUSTRATION

sub21015-71010

main21015-75020i198908-200008

TYPE B:REFER TO ILLUSTRATION

2102

21069DASH POT SUB-ASSY

main21069-75010i199907-200208

21112HORN, AIR

main21112-75022i199907-200208

TYPE A:REFER TO ILLUSTRATION

main21112-75060i199907

TYPE B:REFER TO ILLUSTRATION

main21112-75070i199508-199907

TYPE C:REFER TO ILLUSTRATION

21165INSULATOR

main21165-72160i198908-199009

main21165-72200i199009-200008

21192BREAKER

main21192-73300i199907

21205JET SUB-ASSY, SLOW

main21205-35210i198908-200008

main21205-35410i199907-200208

main21205-72320i198908-199907

21209FLOAT SUB-ASSY

main21209-72160i198908-200008

21251JET, 1ST MAIN

main21251-13700i198908-199308

TYPE A:REFER TO ILLUSTRATION

main90999-41108i198908-199308

TYPE B:REFER TO ILLUSTRATION

main90999-41116i199608-199907

21253JET, 2ND MAIN

main21253-73250i198908-199308

TYPE A:REFER TO ILLUSTRATION

main21253-75020i199907

main21253-75040i199907-200501

21271SCREW, IDLE ADJUSTING

main21271-15230i198908-200008

TYPE B:REFER TO ILLUSTRATION

main21271-26440i199808-199907

TYPE A:REFER TO ILLUSTRATION

21272SCREW, 1ST IDLE ADJUSTING

main21272-71010i199907-200208

21273SCREW, THROTTLE ADJUSTING

main21273-75010i198908-200008

21291GLASS, LEVEL GAGE

main21291-34320i198908-200008

21301VALVE SUB-ASSY, NEEDLE

main21301-37040i198908-200008

21341VALVE, POWER

main21304-30010i198908-200008

21347VALVE, SOLENOID

main21347-73250i198908-199009

sub21347-73101

main21347-73251i199907

21351PISTON, POWER

main21351-37040i198908-199508

21609DIAPHRAGM SUB-ASSY

main21609-75010i198908-200008

21611GASKET, MAIN JET

main21611-22010i198908-200008

21614GASKET, VENTURI

main21614-72160i198908-199009

main21614-72200i199009-199508

21617GASKET, MAIN PASSAGE PLUG

main21617-30010i198908-200008

21617AGASKET, MAIN PASSAGE PLUG, NO.2

main21617-10010i198908-200008

21618GASKET, NEEDLE VALVE SEAT

main21618-14010i198908-199508

21621GASKET, UNION NIPPLE

main21633-24030×2i198908-200008

21622GASKET, AIR HORN

main21622-72200i199907-200208

main21622-73230i198908-199009

21625GASKET, LEVEL GAGE

main21655-60200i199907-200208

21627GASKET, COIL HOUSING

main21627-28150i198908-200008

21641GASKET(FOR THERMOSTATIC VALVE COVER)

main21641-35010i198908-199009

main21641-35510i199009-200008

21655ARING, O(FOR SLOW JET)

main21655-11040i198908-200008

21667DIAPHRAGM

main21667-72300i198908-199009

main21667-72301i199608-199704

main21667-75010i199308-199508

21669DIAPHRAGM

main21669-35510i199907-200108

TYPE A:REFER TO ILLUSTRATION

main21669-37040i198908-199009

TYPE A:REFER TO ILLUSTRATION

main21669-63010i198908-199009

TYPE B:REFER TO ILLUSTRATION

main21669-73370i199907-200208

TYPE B:REFER TO ILLUSTRATION

21698DIAPHRAGM

main21667-72050i198908-199009

NO.1

main21667-72080i198908-199009

NO.2

main21667-73330i199907-200208

NO.1

main21675-35510i199907-200208

NO.2

21699BOOT(FOR PUMP PLUNGER)

main21699-75010i199907

21699ABOOT(FOR ACCELERATION PUMP)

main21699-37040i198908-200008

21723SPRING, IDLE ADJUSTING

main21723-21030i198908-200008

21724SPRING, THROTTLE ADJUSTING

main21723-38330i198908-200008

21726SPRING, 1ST IDLE ADJUSTING

main21726-38310i199907-200208

21734SPRING, POWER PISTON

main21734-37040i198908-200008

main21734-71010i198908-199907

21751UNION, NIPPLE

main21894-71010i199907

21756SPRING, BACK(FOR THROTTLE SHAFT)

main21756-72160i198908-199108

main21756-75010i199108-200008

21763PIN, FLOAT LEVER

main21763-34320i198908-200008

21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)

main21781-15230i198908-200008

21781APLUG, MAIN PASSAGE, NO.2(FOR CARBURETOR JET)

main21781-72151i199907-200208

21791RING, SNAP, NO.1(FOR CARBURETOR LINK)

main21791-13010×5i199611-200008

main21791-13011×5i199208-199611

main21791-60010×3i198908-199208

TYPE A:REFER TO ILLUSTRATION

21811BOLT, UNION NIPPLE

main21811-11060i199907-200208

21821SCREW, 2ND THROTTLE VALVE SET

main21821-15060i198908-200008

21824SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET)

main21844-26400×3i198908-200008

21833SCREW, SET, NO.1(FOR CARBURETOR BODY SET)

main21833-33010×2i198908-200008

21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)

main21842-33010×2i198908-200008

21852NUT, THROTTLE LEVER SET

main21852-30010i198908-200008

21869ASPRING(FOR THROTTLE)

main21869-71110i198908-200008

21881WASHER, LOCK(FOR THROTTLE SHAFT)

main21881-60010i198908-200008

21934SOLENOID, THROTTLE VALVE

main21062-73250i198908-200008

21934ERING, O(FOR SOLENOID VALVE)

main21655-44101i198908-200008

21934FGASKET

main21649-38010i198908-200008

2139875010SUPPORT(FOR DASH POT)

main21398-75010

2164933080GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER)

main21649-33080

2182113080SCREW, 2ND THROTTLE VALVE SET

main21821-13080

2182113310SCREW, 2ND THROTTLE VALVE SET

main21821-13310

2182124030SCREW, 2ND THROTTLE VALVE SET

main21821-24030

2182125010SCREW, 2ND THROTTLE VALVE SET

main21821-25010

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180

2182126400SCREW, 2ND THROTTLE VALVE SET

main21821-26400

2182131140SCREW, 2ND THROTTLE VALVE SET

main21821-31140

2188538310

main21885-38310

9007930012

main90079-30012

9033903002

main90339-03002

9092504006

main90925-04006

9092504012

main90925-04012

9099943044

main90999-43044

9099992002

main90999-92002

9413000802

main94130-00802

9451100500

main94511-00500

9451100800

main94511-00800

9451200600

main94512-00600

9461110300

main94611-10300

9461110400

main94611-10400
