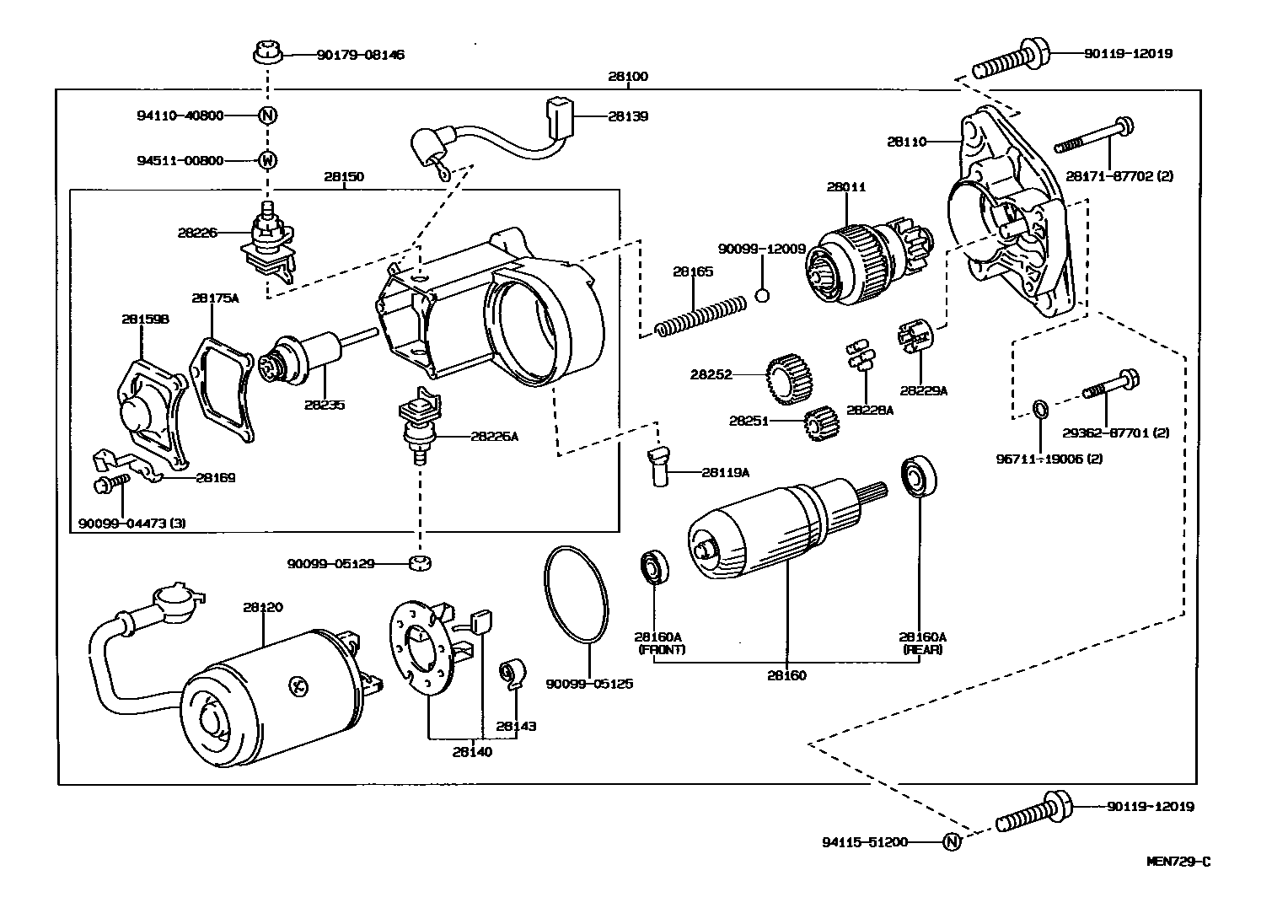

STARTER

0001 112V 2.0KW 0002 112V 2.0KW 0003 112V 2.7KW 0004 112V 1.0KW 0005 112V 1.4KW 0006 112V 1.0KW 0007 112V 2.2KW

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i1RZ#,2RZ#..RZH10#,11#,125,135,153..ARL,GCC,GEN198908-199808

12V 1.0KW

main28011-54010i3L..LH113..CIS;3L,5L..LH103,113,125,162,172..4FC..ARL;2L,3L..LH102,105,112,115..LHD..SG..(CIS,GEN)199907-200208

main28011-54010i3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN)198908-200501

12V 2.7KW

main28011-54070i2L,3L..LH10#,11#,125..5F198908-199308

12V 2.0KW

main28011-54260i5L#..LH154,162,172,174,184..(03S,06S,10S,11S,14S,15S)..5F..(ARL,GCC,GEN)199808-200602

12V 2.2KW

main28011-54260i5L..LH174..12S200211-200602

main28011-54380i2L..LH10#,11#199308-200602

12V 2.0KW

main28011-70020i1RZ..RZH112..LHD;1RZ..RZH112..RHD..SP;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#..ARL,GCC,GEN199808-200602

12V 1.0KW

main28011-70020i1RZ..RZH112..SG..03S200211-200602

main28011-76070i2RZE..RZH115..CIS,GEN;1RZ..RZH114..LHD..15S;1RZ,2RZ#..RZH10#,112,113,115,155..LHD..(03S,06S,09S,11S,12S,15S)..(CIS,GEN)199205-200508

12V 1.4KW

28100STARTER ASSY

main28100-54070i2L,3L..LH10#,11#,125..5F198908-199205

12V 2.0KW

sub28100-54180

main28100-54170i2L,3L..LH10#,11#,125..5F199205-199308

12V 2.0KW

sub28100-54290

main28100-54220i3L..LH103,113..4FC;2L..LH102,104,112,114..LHD198908-199205

12V 2.7KW

sub28100-54210

main28100-54250i3L..LH103,113..4FC;2L..LH102,104,112,114..LHD199205-199308

12V 2.7KW

sub28100-54300

main28100-54260i5L#..LH154,162,172,174,184..5F..(ARL,GCC,GEN)200011-200602

12V 2.2KW

sub28100-54261

main28100-54320i5L..LH162,184..4FC;2L,5L..LH10#,11#,164,166,17#..LHD..(CIS,GEN)199308-200501

12V 2.7KW

main28100-54330i5L..LH154,162,172,174,184..5F..(ARL,GCC,GEN)199808-200011

12V 2.2KW

sub28100-54260

sub28191-54040

sub28191-54050

sub90179-08026

sub91651-61032

sub94613-10800

main28100-54340i2L,3L..LH102,103,104,11#,125..5F..(ARL,GCC,GEN)199803-200305

12V 2.0KW

main28100-54380i2L..LH10#,11#199308-200602

12V 2.0KW

main28100-54470i3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(CIS,GEN)199903-200305

12V 2.7KW

sub28100-54480

main28100-75010i1RZ,2RZ..RZH10#,11#,125198908-199308

12V 1.0KW

sub28100-75050

main28100-75030i1RZ..RZH102,104,112,114..LHD198908-199205

12V 1.4KW

sub28100-75050

main28100-75050i1RZ..RZH114..HRF;1RZ..RZH102,104,112..LHD..(03S,12S)199205-199308

12V 1.4KW

sub28100-75060

main28100-75070i1RZ#,2RZ#..RZH10#,11#,125,135,153..ARL,GCC,GEN199308-199808

12V 1.0KW

main28100-75090i2RZE..RZH115..CIS,GEN;1RZ..RZH114..LHD..15S;1RZ,2RZ#..RZH10#,112,113,115,155..LHD..(03S,06S,09S,11S,12S,15S)..(CIS,GEN)199308-200508

12V 1.4KW

sub28100-75091

main28100-75150i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#..ARL,GCC,GEN199808-200602

12V 1.0KW

sub28100-75151

28110HOUSING ASSY, STARTER DRIVE

main28110-54380i2L..LH10#,11#199308-200602

12V 2.0KW

main28110-75010i1RZ,2RZ..RZH10#,11#,125198908-199308

12V 1.0KW

main28110-75030i1RZ..RZH102,104,112,114..LHD198908-199205

12V 1.4KW

main28110-75050i1RZ..RZH114..HRF;1RZ..RZH102,104,112..LHD..(03S,12S)199205-199308

12V 1.4KW

main28110-75070i1RZ#,2RZ#..RZH10#,11#,125,135,153..ARL,GCC,GEN199308-199808

12V 1.0KW

main28110-75090i2RZE..RZH115..CIS,GEN;1RZ..RZH114..LHD..15S;1RZ,2RZ#..RZH10#,112,113,115,155..LHD..(03S,06S,09S,11S,12S,15S)..(CIS,GEN)199308-200508

12V 1.4KW

main28110-75150i1RZ..RZH112..LHD;1RZ..RZH112..RHD..SP;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#..ARL,GCC,GEN199808-200602

12V 1.0KW

main28110-75150i1RZ..RZH112..SG..03S200211-200602

main28115-54011i3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN)198908-200501

12V 2.7KW

main28115-54011i3L..LH113..CIS;3L,5L..LH103,113,125,162,172..4FC..ARL;2L,3L..LH102,105,112,115..LHD..SG..(CIS,GEN)199907-200208

main28115-54070i2L,3L..LH10#,11#,125..5F198908-199308

12V 2.0KW

main28115-54260i5L..LH172,174,184199808-200602

12V 2.2KW

main28115-54260i5L..LH174..12S200211-200602

28119COVER, STARTER END FRAME

main28119-47070i3L..LH103,113..4FC;2L..LH102,104,112,114..LHD198908-199008

main28199-54190i3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN)199008-200501

28119ACOVER, STARTER END FRAME

main28199-46080i3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN)199008-199907

12V 2.7KW

main28199-46080i1RZ..RZH112..SG..03S;3L,5L..LH103,113,125,162,172,184..4FC;2L,3L,5L..LH102,104,105,11#,164,166,17#..LHD..STD..(CIS,GEN)199808-200602

12V 1.0KW

main28199-46080i1RZ..RZH112..SG..03S;3L,5L..LH103,113,125,162,172,184..4FC;2L,3L,5L..LH102,104,105,11#,164,166,17#..LHD..STD..(CIS,GEN)199907-200602

12V 2.7KW;12V 2.2KW

main28199-46080i5L..LH172,174,184199808-199907

12V 2.2KW

main28199-72020i1RZ..RZH102,104,112,114..LHD198908-199308

main28199-74110i1RZ..RZH114..HRF;1RZ..RZH102,104,112..LHD..(03S,12S)199205-200508

12V 1.4KW

main28199-74110i3L..LH113..5F;2L,3L..LH10#,112,114,115,125..ARL,GCC,GEN198908-200602

12V 2.0KW

28120YOKE ASSY, STARTER

main28120-15090i1RZ..RZH102,104,112,114..LHD198908-199205

12V 1.4KW

main28120-26071i1RZ#,2RZ#..RZH10#,11#,125,135,153..ARL,GCC,GEN198908-199808

12V 1.0KW

main28120-54070i2L,3L..LH10#,11#,125..5F198908-199308

main28120-54260i5L..LH174..12S200211-200602

main28120-54260i5L#..LH154,162,172,174,184..(03S,06S,10S,11S,14S,15S)..5F..(ARL,GCC,GEN)200011-200602

12V 2.2KW

main28120-54380i2L..LH10#,11#199308-200602

12V 2.0KW

main28120-56081i3L..LH113..CIS;3L,5L..LH103,113,125,162,172..4FC..ARL;2L,3L..LH102,105,112,115..LHD..SG..(CIS,GEN)199907-200208

main28120-56081i3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(CIS,GEN)199608-200501

12V 2.7KW

main28120-64040i5L..LH154,162,172,174,184..5F..(ARL,GCC,GEN)199808-200011

12V 2.2KW

main28120-66040i2RZE..RZH115..CIS,GEN;1RZ..RZH114..LHD..15S;1RZ,2RZ#..RZH10#,112,113,115,155..LHD..(03S,06S,09S,11S,12S,15S)..(CIS,GEN)199402-200508

12V 1.4KW

main28120-70050i1RZ..RZH112..4D..06S199808-200602

12V 1.0KW

main28120-70050i1RZ..RZH112..SG..03S200211-200602

main28120-74070i1RZ..RZH104,112,114..LHD199205-199402

12V 1.4KW

28139WIRE, LEAD, NO.1(FOR STARTER)

main28139-54070i2L,3L..LH10#,11#,125..5F198908-199308

12V 2.0KW

main28139-54171i5L..LH172..4D..5F;5L..LH172..5D..03S;5L..LH154,162,174,184..(03S,06S,10S,11S,14S,15S)..5F..(ARL,GCC,GEN)199808-200602

12V 2.2KW

main28139-54171i5LE..LH172;5L..LH174..12S;5L..LH172..5D..06S200108-200602

main28139-54250i3L..LH103,113..4FC;2L..LH102,104,112,114..LHD..STD199205-199411

12V 2.7KW

sub28139-54251

main28139-54251i5L..LH162,184..SG..4FC;2L,5L..LH102,104,112,114,164,166,17#..LHD..(03S,10S,12S,15S)..STD..(CIS,GEN)199411-200501

12V 2.7KW

sub28139-56290

main28139-54251i3L..LH113..CIS;3L,5L..LH103,113,125,162,172..4FC..ARL;2L,3L..LH102,105,112,115..LHD..SG..(CIS,GEN)199907-200208

sub28139-56290

main28139-54380i3L..LH125..HRF..GEN199707-200501

main28139-54380i3L..LH125..SMRF;3L..LH125..5F..STD;2L,3L..LH10#,11#..5F..(ARL,GCC,GEN)199308-200602

12V 2.0KW

main28139-77110i3L..LH103,113..4FC;2L..LH102,104,112,114..LHD198908-199205

12V 2.7KW

28140HOLDER ASSY, STARTER BRUSH

main28140-15090i1RZ..RZH102,104,112,114..LHD198908-199205

12V 1.4KW

main28140-26070i2RZE..RZH103,113,135,153..RHD199611-199808

main28140-26070i2RZE..RZH113..LHD;1RZ#,2RZ..RZH10#,11#,125..ARL,GCC,GEN198908-199808

12V 1.0KW

main28140-54070i2L,3L..LH10#,11#,125..5F198908-199308

12V 2.0KW

main28140-54380i2L..LH114..10S199707-200501

main28140-54380i2L..LH10#,11#..03S,06S,12S,15S199308-200602

12V 2.0KW

main28140-64040i5L#..LH154,162,172,174,184..(03S,06S,10S,11S,14S,15S)..5F..(ARL,GCC,GEN)199808-200602

12V 2.2KW

main28140-64040i5L..LH174..12S200211-200602

main28140-70020i1RZ..RZH112..LHD;1RZ..RZH112..RHD..SP;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#..ARL,GCC,GEN199808-200602

12V 1.0KW

main28140-70020i1RZ..RZH112..SG..03S200211-200602

main28140-76070i2RZE..RZH115..CIS,GEN;1RZ..RZH114..LHD..15S;1RZ,2RZ#..RZH10#,112,113,115,155..LHD..(03S,06S,09S,11S,12S,15S)..(CIS,GEN)199205-200508

12V 1.4KW

main28140-77090i5L..LH162,184..SG..4FC;2L,5L..LH102,104,112,114,164,166,17#..LHD..(03S,10S,12S,15S)..STD..(CIS,GEN)198908-200501

12V 2.7KW

main28140-77090i3L..LH113..CIS;3L,5L..LH103,113,125,162,172..4FC..ARL;2L,3L..LH102,105,112,115..LHD..SG..(CIS,GEN)199907-200208

28143SPRING, STARTER BRUSH

main28143-54380i2L,3L..LH10#,11#,125..5F..(ARL,GCC,GEN)199308-200008

12V 2.0KW

main28143-54380i2L..LH10#,11#200305-200602

main28143-70020i1RZ..RZH112..SG..03S200211-200602

main28143-70020i2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S199808-200602

12V 1.0KW

main28143-76060i1RZ,2RZE..RZH104,112,113,114..LHD..STD199308-199508

12V 1.4KW

main90099-17112i1RZ..RZH114..LHD;1RZ#,2RZ#..RZH10#,112,113,115,125,135,153199308-199808

12V 1.0KW

main90099-17112i1RZ..RZH114..LHD..15S;2RZE..RZH115..STD..CIS;2RZE..RZH105,113..LHD..STD;1RZ,2RZ..RZH10#,112,115..LHD..(03S,06S,09S,12S,15S)..GEN199808-200508

12V 1.4KW

main90099-17112i1RZ,2RZ..RZH10#,11#,125198908-199608

main90099-17115i5L..LH172,174,184199808-200602

12V 2.2KW

main90099-17115i2L,3L..LH10#,11#,125..5F198908-200602

28150SWITCH ASSY, MAGNET STARTER

main28150-41060i1RZ,2RZ..RZH10#,11#,125198908-199308

12V 1.0KW

main28150-45050i1RZ..RZH102,104,112,114..LHD198908-199205

12V 1.4KW

main28150-54070i2L,3L..LH10#,11#,125..5F198908-199308

12V 2.0KW

sub28150-54110

main28150-54190i3L..LH103,113..4FC;2L..LH102,104,112,114..LHD199205-199308

12V 2.7KW

sub28150-54300

main28150-54220i3L..LH103,113..4FC;2L..LH102,104,112,114..LHD198908-199205

12V 2.7KW

sub28150-54221

main28150-54260i5L..LH172,174,184199808-199907

12V 2.2KW

main28150-54320i5L..LH162,184..4FC;2L,5L..LH10#,11#,164,166,17#..LHD..(CIS,GEN)200305-200501

main28150-54320i3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN)199308-199903

12V 2.7KW

main28150-54330i5L#..LH154,162,172,174,184..5F..(ARL,GCC,GEN)199907-200602

12V 2.2KW

main28150-54340i2L,3L..LH102,103,104,11#,125..5F..(ARL,GCC,GEN)199803-200008

12V 2.0KW

main28150-54380i3L..LH125..STD;3L..LH125..SMRF;2L,3L..LH10#,11#..5F..(ARL,GCC,GEN)199308-200602

12V 2.0KW

main28150-54380i3L..LH125..HRF..GEN199707-199803

main28150-54430i3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(CIS,GEN)199903-199907

12V 2.7KW

main28150-54430i3L,5L..LH103,113,125,162,172,184..4FC;2L,3L,5L..LH102,104,105,11#,164,166,17#..LHD..STD..(CIS,GEN)199907-200305

main28150-75050i1RZ..RZH114..HRF;1RZ..RZH102,104,112..LHD..(03S,12S)199205-199308

12V 1.4KW

main28150-75070i2RZE..RZH113..LHD;1RZ#,2RZ..RZH10#,11#,125..ARL,GCC,GEN199308-199808

12V 1.0KW

main28150-75070i2RZE..RZH103,113,135,153..RHD199611-199808

main28150-75090i1RZ..RZH104,112,114..LHD199308-199402

12V 1.4KW

main28150-75130i1RZ..RZH114..LHD..15S;2RZE..RZH115..STD..CIS;2RZE..RZH105,113..LHD..STD;1RZ,2RZ..RZH10#,112,113,115..LHD..(03S,06S,09S,12S,15S)..(CIS,GEN)199402-200508

12V 1.4KW

main28150-75150i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#..ARL,GCC,GEN199808-200602

12V 1.0KW

28159BCOVER, MAGNET SWITCH

main28159-10040i5L..LH172..4D..5F;5L..LH172..5D..03S;5L..LH154,162,174,184..(03S,06S,10S,11S,14S,15S)..5F..(ARL,GCC,GEN)199808-200602

12V 2.2KW

main28159-10040i1RZ..RZH112..4D..4F;1RZ..RZH112..5D..06S;1RZ..RZH102..06S..5F;1RZ..RZH102,104,114..4F;2RZ..RZH103,113,125..4D;1RZ..RZH112..5D..03S..4F;1RZ..RZH104,114..LHD..SRF..5F199010-200602

main28159-10040i1RZ..RZH112..4D;1RZ..RZH114..HRF;1RZ..RZH112..5D..03S;1RZ,2RZ..RZH103,113,114..RHD;1RZ,2RZ..RZH102,104,125..03S,12S,14S199108-199808

12V 1.0KW

main28159-54170i2L,3L..LH10#,11#,125..5F199010-199308

12V 2.0KW

main28159-54380i2L..LH10#,11#..03S,06S,12S,15S199308-200602

12V 2.0KW

main28159-54380i3L..LH125..HRF..GEN199707-200501

main28159-55050i1RZ..RZH114..HRF;1RZ..RZH102,104,112..LHD..(03S,12S)199205-200508

12V 1.4KW

main28159-56310i3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN)199010-200501

12V 2.7KW

main28159-56310i3L..LH113..CIS;3L,5L..LH103,113,125,162,172..4FC..ARL;2L,3L..LH102,105,112,115..LHD..SG..(CIS,GEN)199907-200208

28160ARMATURE ASSY, STARTER

main28160-15091i1RZ..RZH102,104,112,114..LHD198908-199205

12V 1.4KW

main28160-26071i2RZE..RZH113..LHD;1RZ#,2RZ..RZH10#,11#,125..ARL,GCC,GEN198908-199808

12V 1.0KW

main28160-26071i2RZE..RZH103,113,135,153..RHD199611-199808

main28160-54071i2L,3L..LH10#,11#,125..5F198908-199308

12V 2.0KW

main28160-54140i5L..LH162,184..SG..4FC;2L,5L..LH102,104,112,114,164,166,17#..LHD..(03S,10S,12S,15S)..STD..(CIS,GEN)198908-200501

12V 2.7KW

main28160-54140i3L..LH113..CIS;3L,5L..LH103,113,125,162,172..4FC..ARL;2L,3L..LH102,105,112,115..LHD..SG..(CIS,GEN)199907-200208

main28160-54330i5L..LH154,162,172,174,184..5F..(ARL,GCC,GEN)199808-200011

12V 2.2KW

main28160-54380i2L..LH114..10S199707-200501

main28160-54380i3L..LH125..SMRF;3L..LH125..5F..STD;2L,3L..LH10#,11#..5F..(ARL,GCC,GEN)199308-200602

12V 2.0KW

main28160-64041i5L..LH174..12S200211-200602

main28160-64041i5L#..LH154,162,172,174,184..(03S,06S,10S,11S,14S,15S)..5F..(ARL,GCC,GEN)200011-200602

12V 2.2KW

main28160-70050i1RZ..RZH112..SG..03S200211-200602

main28160-70050i2RZ..RZH115;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S199808-200602

12V 1.0KW

main28160-74070i1RZ..RZH114..LHD..15S;2RZE..RZH115..STD..CIS;2RZE..RZH105,113..LHD..STD;1RZ,2RZ..RZH10#,112,113,115..LHD..(03S,06S,09S,12S,15S)..(CIS,GEN)199205-200508

12V 1.4KW

28160ABEARING, STARTER ARMATURE

main28253-45020i2RZE..RZH113..LHD;1RZ#,2RZ..RZH10#,11#,125..ARL,GCC,GEN198908-199808

12V 1.0KW,FRONT

main28253-45020i2RZE..RZH103,113,135,153..RHD199611-199808

FRONT

main28253-54070i2L,3L..LH10#,11#,125..5F198908-199308

12V 2.0KW,FRONT

main28253-54330i5L..LH172,174,184199808-200011

12V 2.2KW

main90099-10107i3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN)198908-200501

12V 2.7KW,FRONT

main90099-10113i2RZE..RZH103,113,135,153..RHD199611-199808

REAR

main90099-10113i2RZE..RZH113..LHD;1RZ#,2RZ..RZH10#,11#,125..ARL,GCC,GEN198908-199808

12V 1.0KW,REAR

main90099-10119i3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN)198908-200501

12V 2.7KW,REAR

main90099-10131i2L,3L..LH10#,11#,125..5F198908-199308

12V 2.0KW,REAR

main90099-10143i5L#..LH154,162,172,174,184..5F..(ARL,GCC,GEN)200011-200602

12V 2.2KW

main90099-10143i1RZ..RZH102,104,112,114..LHD198908-199205

12V 1.4KW,FRONT

main90099-10144i1RZ..RZH102,104,112,114..LHD198908-199205

12V 1.4KW,REAR

main90099-10196i2RZE..RZH115..CIS,GEN;1RZ..RZH114..LHD..15S;1RZ,2RZ#..RZH10#,112,113,115,155..LHD..(03S,06S,09S,11S,12S,15S)..(CIS,GEN)199205-200508

12V 1.4KW,FRONT

main90099-10197i3L..LH125..5F..STD;1RZ..RZH114..15S..GL;2L,3L..LH10#,11#..5F..(ARL,GCC,GEN);3L,1RZ,2RZ..LH125,RZH103,104,105,112..(SMRF,SRF)..GL199205-200008

12V 1.4KW,REAR

main90099-10197i2RZ..RZH115..LHD..GEN;2RZE..RZH115..STD..CIS;2RZ#..RZH113..LHD..STD..GEN;1RZ,2RZ#..RZH10#,112,114..LHD..(SGL,STD)..(CIS,GEN)199308-200008

12V 2.0KW,REAR

main90099-10197i2RZE..RZH115..CIS,GEN;1RZ..RZH114..LHD..15S;1RZ,2RZ#..RZH10#,112,113,115,155..LHD..(03S,06S,09S,11S,12S,15S)..(CIS,GEN)199907-200508

REAR

main90099-10208i3L..LH125..HRF..GEN199308-200008

12V 2.0KW,FRONT

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i1RZ,2RZ..RZH103,113,114;2L,3L,1RZ,2RZ..LH10#,11#,125,RZH102,104,112,125..4F,5F198908-199308

main28165-26040i1RZ#,2RZ#..RZH10#,11#,125,135,153..ARL,GCC,GEN199308-199808

12V 1.0KW

main28165-26040i5L..LH172,174,184199808-200602

12V 2.2KW

main28165-76070i1RZ..RZH114..HRF;1RZ..RZH102,104,112..LHD..(03S,12S)199205-200508

12V 1.4KW

main28165-76070i2L..LH10#,11#199308-200602

12V 2.0KW

main28165-77090i3L,5L..LH103,113,125,162,172,184..4FC;2L,3L,5L..LH102,104,105,11#,164,166,17#..LHD..STD..(CIS,GEN)198908-200501

12V 2.7KW

28169CLAMP, STARTER MOTOR LEAD WIRE

main28169-10040i1RZ..RZH112..4D..4F;1RZ..RZH112..5D..06S;1RZ..RZH102..06S..5F;1RZ..RZH102,104,114..4F;2RZ..RZH103,113,125..4D;1RZ..RZH112..5D..03S..4F;1RZ..RZH104,114..LHD..SRF..5F199010-199808

main28169-10040i1RZ..RZH112..4D;1RZ..RZH114..HRF;1RZ..RZH112..5D..03S;1RZ,2RZ..RZH103,113,114..RHD;1RZ,2RZ..RZH102,104,125..03S,12S,14S199108-199808

12V 1.0KW

main28169-54070i2L,3L..LH10#,11#,125..5F199010-199308

main28169-54260i5L..LH172,174,184199808-200602

12V 2.2KW

main28169-54260i5L..LH174..12S200211-200602

main28169-54380i2L..LH10#,11#200305-200602

main28169-54380i2L,3L..LH10#,11#,125..5F..(ARL,GCC,GEN)199308-200008

12V 2.0KW

main28169-55050i2RZE..RZH115..CIS,GEN;1RZ..RZH114..LHD..15S;1RZ,2RZ#..RZH10#,112,113,115,155..LHD..(03S,06S,09S,11S,12S,15S)..(CIS,GEN)199205-200508

12V 1.4KW

28175AGASKET, MAGNET SWITCH COVER

main28175-10040i1RZ#,2RZ#..RZH10#,11#,125,135,153..ARL,GCC,GEN199010-199808

main28175-10040i5L..LH172,174,184199808-200602

12V 2.2KW

main28175-54380i2L,3L..LH10#,11#,125..5F..(ARL,GCC,GEN)199308-200602

12V 2.0KW

main28175-55050i1RZ..RZH114..LHD..15S;2RZE..RZH115..STD..CIS;2RZE..RZH105,113..LHD..STD;1RZ,2RZ..RZH10#,112,113,115..LHD..(03S,06S,09S,12S,15S)..(CIS,GEN)199205-200508

12V 1.4KW

main28175-56310i3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN)199010-200501

12V 2.7KW

28226STARTER KIT, BATTERY TERMINAL

main28226-17030i5L..LH162,172,184..4FC;2L,5L..LH10#,11#,164,166,17#..LHD..(CIS,GEN)200101-200305

sub28226-54320

main28226-22050i1RZ..RZH114..LHD..15S;1RZ,2RZ#..RZH104,105,112,113,115,155..LHD..(CIS,GEN)200008-200508

main28226-54080i2L,3L..LH10#,11#,125..5F198908-199101

12V 2.0KW

main28226-54250i3L..LH103,113..4FC;2L..LH102,104,112,114..LHD198908-199308

12V 2.7KW

sub28226-54300

main28226-54320i3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN)199308-200501

12V 2.7KW

main28226-54330i5L#..LH154,162,172,174,184..5F..(ARL,GCC,GEN)199808-200602

12V 2.2KW

main28226-54340i2L,3L..LH102,103,104,11#,125..5F..(ARL,GCC,GEN)199803-200602

12V 2.0KW

main28226-54350i2L,3L..LH10#,11#,125..5F199101-199308

12V 2.0KW

main28226-54380i3L..LH125..ARL;2L,3L..LH112,113,115..5F..(DX,STD)..(ARL,GEN);2L,3L..LH10#,114..(03S,12S,15S)..5F..(ARL,GCC,GEN)199308-199803

12V 2.0KW

sub28226-54340

main28226-54380i3L..LH125..HRF..GEN199707-199803

sub28226-54340

main28226-64200i1RZ..RZH114..LHD..15S;2RZE..RZH115..STD..CIS;2RZE..RZH105,113..LHD..STD;1RZ,2RZ..RZH10#,112,113,115..LHD..(03S,06S,09S,12S,15S)..(CIS,GEN)199308-200008

12V 1.4KW

sub28226-22050

main28226-70040i2RZE..RZH103,113,135,153..RHD199611-199808

main28226-70040i2RZE..RZH113..LHD;1RZ#,2RZ..RZH10#,11#,125..ARL,GCC,GEN199308-199808

12V 1.0KW

main28226-72080i1RZ..RZH112..4D..4F;1RZ..RZH112..5D..06S;1RZ..RZH102..06S..5F;2RZ..RZH103,113,125..4D;1RZ..RZH112..5D..03S..4F;1RZ..RZH102,104,114..4F,4FC;1RZ..RZH104,114..LHD..SRF198908-199308

main28226-72080i1RZ..RZH112..4D;1RZ..RZH114..HRF;1RZ..RZH112..5D..03S;1RZ,2RZ..RZH103,113,114..RHD;1RZ,2RZ..RZH102,104,125..03S,12S,14S199108-199308

12V 1.0KW

main28226-76070i1RZ..RZH114..HRF;1RZ..RZH102,104,112..LHD..(03S,12S)199205-199308

12V 1.4KW

28226ASTARTER KIT, MOTOR TERMINAL

main28226-54100i2L,3L..LH10#,11#,125..5F199010-199101

12V 2.0KW

main28226-54220i3L,5L..LH103,113,125,162,172,184..4FC;2L,3L,5L..LH102,104,105,11#,164,166,17#..LHD..STD..(CIS,GEN)198908-200501

12V 2.7KW

main28226-72010i2L,3L..LH102,103,104,11#,125..5F..(ARL,GCC,GEN)199808-200602

12V 2.0KW;12V 2.2KW

main28226-72010i1RZ,2RZ..RZH10#,11#,125198908-199808

main28226-72010i5L..LH172,174,184199808-199907

12V 2.2KW

main28226-74070i1RZ..RZH114..HRF;1RZ..RZH102,104,112..LHD..(03S,12S)199205-200508

12V 1.4KW

28228AROLLER, STARTER CLUTCH

main28228-26040i2L..LH112..DX,GL;2L,2RZ..LH114,RZH125..HRF;1RZ,2RZ..RZH102,103,112,113;3L,2RZE..LH113,115,RZH113..LHD;3L,1RZ,2RZ..LH103,105,125,RZH104,105,114,115..SG..(CIS,GCC,GEN199308-200008

12V 1.4KW

main28228-26040i3L..LH125..HRF..GEN;2RZE..RZH103,113,135,153..RHD198908-199808

main28228-26040i2RZE..RZH115..CIS,GEN;1RZ..RZH114..LHD..15S;5L#..LH154,162,172,174,184..5F..(ARL,GCC,GEN);1RZ,2RZ#..RZH10#,112,113,115,155..LHD..(03S,06S,09S,11S,12S,15S)..(CIS,GEN199907-200602

12V 2.0KW;12V 2.2KW

main28228-26040i5L..LH172,174,184199808-199907

12V 2.2KW

main28228-56080i3L,5L..LH103,113,125,162,172,184..4FC;2L,3L,5L..LH102,104,105,11#,164,166,17#..LHD..STD..(CIS,GEN)198908-200501

12V 2.7KW

28229ARETAINER, STARTER IDLE GEAR

main28229-26040i5L..LH172,174,184199808-200602

12V 2.2KW

main28229-26040i1RZ#,2RZ#..RZH10#,11#,125,135,153..ARL,GCC,GEN198908-199808

main28229-56080i3L..LH103,113,125..4FC;2L,3L,5L..LH102,104,105,11#,166,176..LHD..(GL,STD)..(CIS,GEN)198908-200501

12V 2.7KW

main28229-74070i1RZ..RZH114..GL;1RZ..RZH102..LHD..03S;2L,3L,1RZ,2RZ..LH102,113,125,RZH103,104,105,112..(SMRF,SRF)..GL199205-200508

12V 1.4KW

main28229-74070i2RZE..RZH113..STD;2L,3L..LH10#,11#,125..5F..(ARL,GCC,GEN);1RZ,2RZ..RZH102,103,104,11#..LHD..(CIS,GEN)199308-200602

12V 2.0KW

28235PLUNGER, MAGNET SWITCH

main28235-17030i3L,5L..LH103,113,125,162,172,184..4FC;2L,3L,5L..LH102,104,105,11#,164,166,17#..LHD..STD..(CIS,GEN)199010-200501

12V 2.7KW

main28235-35080i2RZE..RZH113..LHD;1RZ#,2RZ..RZH10#,11#,125..ARL,GCC,GEN199308-199808

12V 1.0KW

main28235-35080i2RZE..RZH103,113,135,153..RHD198908-199808

main28235-35080i5L..LH172,174,184199808-200602

12V 2.2KW

main28235-54380i3L..LH125..SMRF;3L..LH125..5F..STD;2L,3L..LH10#,11#..5F..(ARL,GCC,GEN)199308-200602

12V 2.0KW

main28235-54380i3L..LH125..HRF..GEN199707-199808

main28235-55050i1RZ..RZH114..LHD..15S;2RZE..RZH115..STD..CIS;2RZE..RZH105,113..LHD..STD;1RZ,2RZ..RZH10#,112,113,115..LHD..(03S,06S,09S,12S,15S)..(CIS,GEN)199205-200508

12V 1.4KW

28251PINION, STARTER DRIVE

main28251-15090i1RZ..RZH102,104,112,114..LHD198908-199308

main28251-54070i2L,3L..LH10#,11#,125..5F198908-200602

main28251-54070i5L..LH172,174,184199808-200602

12V 2.2KW

main28254-54380i2L,3L..LH10#,11#,125..5F..(ARL,GCC,GEN)199308-200602

12V 2.0KW

28252GEAR, STARTER IDLE

main28254-45020i1RZ,2RZ..RZH10#,11#,125198908-199808

main28254-45020i2RZE..RZH113..LHD;1RZ#,2RZ..RZH10#,11#,125..ARL,GCC,GEN199308-199808

12V 1.0KW

main28254-54070i2L,3L..LH10#,11#,125..5F198908-199308

12V 2.0KW

main28254-64040i5L..LH172..4D..5F;5L..LH172..5D..03S;5L..LH154,162,174,184..(03S,06S,10S,11S,14S,15S)..5F..(ARL,GCC,GEN)199808-200602

12V 2.2KW

main28254-64040i5LE..LH172;5L..LH174..12S;5L..LH172..5D..06S200108-200602

main28254-64130i3L..LH125..SMRF;3L..LH125..5F..STD;2L,3L..LH10#,11#..5F..(ARL,GCC,GEN)199308-200602

12V 2.0KW

main28254-64130i3L..LH125..HRF..GEN199707-199808

main28254-74070i2RZE..RZH115..CIS,GEN;1RZ..RZH114..LHD..15S;1RZ,2RZ#..RZH10#,112,113,115,155..LHD..(03S,06S,09S,11S,12S,15S)..(CIS,GEN)199907-200508

main28254-74070i1RZ..RZH114..LHD..15S;2RZE..RZH115..STD..CIS;2RZE..RZH105,113..LHD..STD;1RZ,2RZ..RZH10#,112,113,115..LHD..(03S,06S,09S,12S,15S)..(CIS,GEN)199308-200008

12V 1.4KW

main28254-77090i5L..LH162,184..SG..4FC;2L,5L..LH102,104,112,114,164,172,174..LHD..(03S,10S,12S,15S)..STD..(CIS,GEN)198908-200501

12V 2.7KW

2817187702BOLT, STARTER

main28171-87702

2936287701

main29362-87701

9009904473

main90099-04473

9009905125

main90099-05125

9009905129

main90099-05129

9009912009

main90099-12009

9011912019

main90119-12019

9017908146

main90179-08146

9411040800

main94110-40800

9411551200

main94115-51200

9451100800

main94511-00800

9671119006

main96711-19006

35 parts on this diagram · 7 diagrams in section
