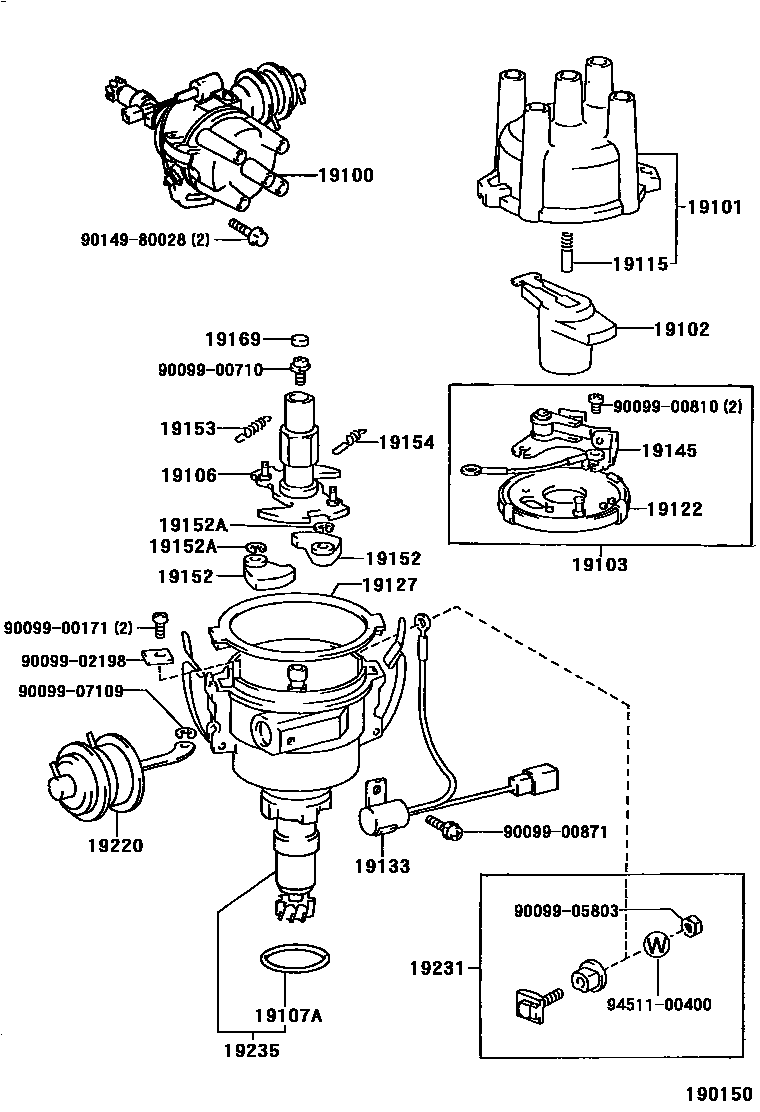

DISTRIBUTOR

0001 1 0002 1INTEGRATED IGNITION ASSEMBLY 0003 1INTEGRATED IGNITION ASSEMBLY 0004 1

19100DISTRIBUTOR ASSY

main19020-75020i1RZ..RZH102,104,112,114..RHD198908-199205

TYPE B:REFER TO ILLUSTRATION,*IIA

main19020-75021i1RZ..RZH104..CIS;1RZ..RZH112..06S;1RZ..RZH104,114..GL;1RZ..RZH114..SRF..STD;1RZ..RZH102,104,112..RHD..(03S,12S)199205-200208

TYPE B:REFER TO ILLUSTRATION,*IIA

main19020-75031i2RZE..RZH105,115..STD..CIS;2RZE..RZH113..4D..STD..(ARL,GEN);1RZE,2RZE..RZH102,103,112,125,135,153..RHD199508-200508

TYPE E:REFER TO ILLUSTRATION,*IIA

main19020-75040i2RZ..RZH103,113,125198908-199205

main19020-75041i2RZ..RZH113..ARL;2RZ..RZH103,125..STD;2RZ..RZH113..06S..GEN199205-199808

TYPE A:REFER TO ILLUSTRATION,*IIA

main19020-75050i1RZ..RZH102..GL;1RZ..RZH112..4D..06S199308-200108

TYPE C:REFER TO ILLUSTRATION,*IIA

main19020-75060i2RZ..RZH103,105..GL199308-199712

sub19020-75061

main19020-75060i2RZ..RZH103,105,113,115..(SGL,STD)..(GCC,GEN)199508-199712

TYPE D:REFER TO ILLUSTRATION,*IIA

sub19020-75061

main19020-75061i2RZ..RZH115..GL199712-200501

TYPE D:REFER TO ILLUSTRATION,*IIA

main19050-75011i2RZE..RZH113199405-199508

main19100-75010i1RZ..RZH102,104,112..LHD..SG..4F;1RZ..RZH102,112,114..LHD..(03S,15S)198908-199308

TYPE A:REFER TO ILLUSTRATION

main19100-75020i1RZ..RZH102..4F;1RZ..RZH104,112,114;1RZ..RZH102..LHD..5F198908-199308

TYPE B:REFER TO ILLUSTRATION

main19100-75030i1RZ..RZH102,104,112,114..LHD..SG..5F199012-199308

TYPE C:REFER TO ILLUSTRATION

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-10020i1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S198908-199308

main19101-75010i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#199205-200208

*IIA

main19101-75040i1RZ,2RZ..RZH10#,11#,125..RHD198908-199205

*IIA

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11010i2RZ..RZH113..ARL;2RZ..RZH113..06S..GEN;1RZ,2RZ..RZH102,103,104,112,114,125..(03S,06S,12S,14S,15S)..(ARL,GEN)199712-200108

TYPE A OR TYPE C:REFER TO ILLUSTRATION, *IIA

main19102-11010i1RZ..RZH104..GL;1RZ..RZH102..06S;1RZ..RZH114..15S..GL199308-199907

TYPE A OR TYPE C OR TYPE D:REFER TO ILLUSTRATION,*IIA

main19102-11010i2RZ..RZH103,113,125198908-199308

main19102-11031i1RZ..RZH102,104,112,114..RHD198908-199205

TYPE B:REFER TO ILLUSTRATION,*IIA

sub19102-11370

main19102-16010i2RZ..RZH105,113,115199712-200501

TYPE D OR TYPE E:REFER TO ILLUSTRATION,*IIA

main19102-16010i2RZE..RZH113;1RZ..RZH104,112,114..CIS;1RZ..RZH102,104,112,114..RHD199205-199508

TYPE B OR TYPE F:REFER TO ILLUSTRATION,*IIA

main19102-16010i1RZ#..RZH112..06S;1RZ,2RZE..RZH104,113,114;1RZ#..RZH102,112..RHD..(03S,09S)199508-200501

TYPE B OR TYPE E:REFER TO ILLUSTRATION,*IIA

main19102-16010i2RZE..RZH103,113,135,153..RHD199611-199712

main19102-16010i1RZ..RZH114..RHD199608-199808

TYPE B:REFER TO ILLUSTRATION,*IIA

main19102-75010i1RZ..RZH102,104,112,114..LHD..SG..5F199012-199308

TYPE C:REFER TO ILLUSTRATION

sub19102-73060

main19102-75011i1RZ..RZH102..4F;1RZ..RZH104,112,114;1RZ..RZH102..LHD..5F198908-199308

TYPE A OR TYPE B:REFER TO ILLUSTRATION

19103BREAKER SUB-ASSY, DISTRIBUTOR

main19103-10020i1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S198908-199308

19106CAM SUB-ASSY, DISTRIBUTOR

main19106-11040i1RZ..RZH102,104,112,114..LHD..SG..5F199012-199308

TYPE C:REFER TO ILLUSTRATION

main19106-16120i1RZ..RZH102..4F;1RZ..RZH104,112,114;1RZ..RZH102..LHD..5F198908-199308

TYPE A OR TYPE B:REFER TO ILLUSTRATION

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14091i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#198908-200208

main90099-14127i2RZ..RZH113..ARL;2RZ..RZH103,125..STD;2RZ..RZH113..06S..GEN199508-199608

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010i1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S198908-199308

main19115-63010i1RZ,2RZ..RZH10#,11#,125..RHD198908-199308

*IIA

main19115-63010i2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ#,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15199308-200208

19122PLATE, STATIONARY, DISTRIBUTOR

main19122-10020i1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S198908-199308

19127PACKING, DUST PROOF

main19127-15010i1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S198908-199308

main19127-15120i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#199308-200208

main19127-15120i1RZ,2RZ..RZH10#,11#,125..RHD198908-199308

*IIA

19133CONDENSER, DISTRIBUTOR

main19133-75010i1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S198908-199308

19145POINT, DISTRIBUTOR

main19145-10020i1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S198908-199308

19152WEIGHT, GOVERNOR

main19152-15160i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ..RZH102,104,105,113,114,115198908-200208

19152ARING, SNAP(FOR GOVERNOR WEIGHT)

main90099-07122i1RZ..RZH112..4D..06S198908-200208

19153SPRING, GOVERNOR, A

main19153-75010i1RZ..RZH112..4D;1RZ..RZH104..RHD;1RZ..RZH112..5D..03S;1RZ..RZH102,114..03S,15S;1RZ..RZH102,104,112..LHD..SG..4F198908-199308

TYPE A OR TYPE B:REFER TO ILLUSTRATION

main19153-75020i1RZ..RZH112..4D..06S199308-200208

main19153-75020i1RZ..RZH102,104,112,114..RHD198908-199308

TYPE B:REFER TO ILLUSTRATION,*IIA

main19153-75030i1RZ..RZH102,104,112,114..LHD..SG..5F199012-199308

TYPE C:REFER TO ILLUSTRATION

main19153-75040i2RZ..RZH103,105,113,115,125199308-200501

19154SPRING, GOVERNOR, B

main19154-75010i1RZ..RZH112..4D;1RZ..RZH104..RHD;1RZ..RZH112..5D..03S;1RZ..RZH102,114..03S,15S;1RZ..RZH102,104,112..LHD..SG..4F198908-199308

TYPE A OR TYPE B:REFER TO ILLUSTRATION

main19154-75020i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ..RZH102,104,114199308-200208

main19154-75020i1RZ..RZH102,104,112,114..RHD198908-199308

TYPE B:REFER TO ILLUSTRATION,*IIA

main19154-75040i2RZ..RZH103,105,113,115,125199308-200501

main19154-75050i1RZ..RZH102,104,112,114..LHD..SG..5F199012-199308

TYPE C:REFER TO ILLUSTRATION

19169STOPPER, CAM GREASE

main19169-63011i1RZ,2RZ..RZH10#,11#,125198908-200208

19220ADVANCER ASSY, VACUUM, DISTRIBUTOR

main19220-75010i1RZ..RZH114..15S;1RZ..RZH112..LHD;1RZ..RZH112..RHD..SP;1RZ..RZH102,104..03S,06S,12S199308-200108

TYPE C:REFER TO ILLUSTRATION,*IIA

sub19220-75020

main19220-75011i1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S198908-199308

main19220-75020i1RZ..RZH104,114..GL;1RZ..RZH102..03S,10S;1RZ..RZH112..SG..03S198908-200208

TYPE B:REFER TO ILLUSTRATION,*IIA

main19220-75040i2RZ..RZH105,113,115198908-200501

19231TERMINAL, DISTRIBUTOR

main19231-24140i1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S198908-199308

19235HOUSING, DISTRIBUTOR

main19235-75010i2RZE..RZH113199405-199508

main19235-75011i1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S198908-199308

main19235-75020i1RZ,2RZ..RZH10#,11#,125199308-199309

main19235-75020i1RZ,2RZ..RZH10#,11#,125..RHD198908-199308

*IIA

main19235-75030i2RZE..RZH103,105,113,115,125,135,15#199508-200508

main19235-75040i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ..RZH102,104,105,113,114,115199309-200208

9009900171

main90099-00171

9009900710

main90099-00710

9009900810

main90099-00810

9009900871

main90099-00871

9009902198

main90099-02198

9009905803

main90099-05803

9009907109

main90099-07109

9014980028

main90149-80028

9451100400

main94511-00400

28 parts on this diagram · 4 diagrams in section
