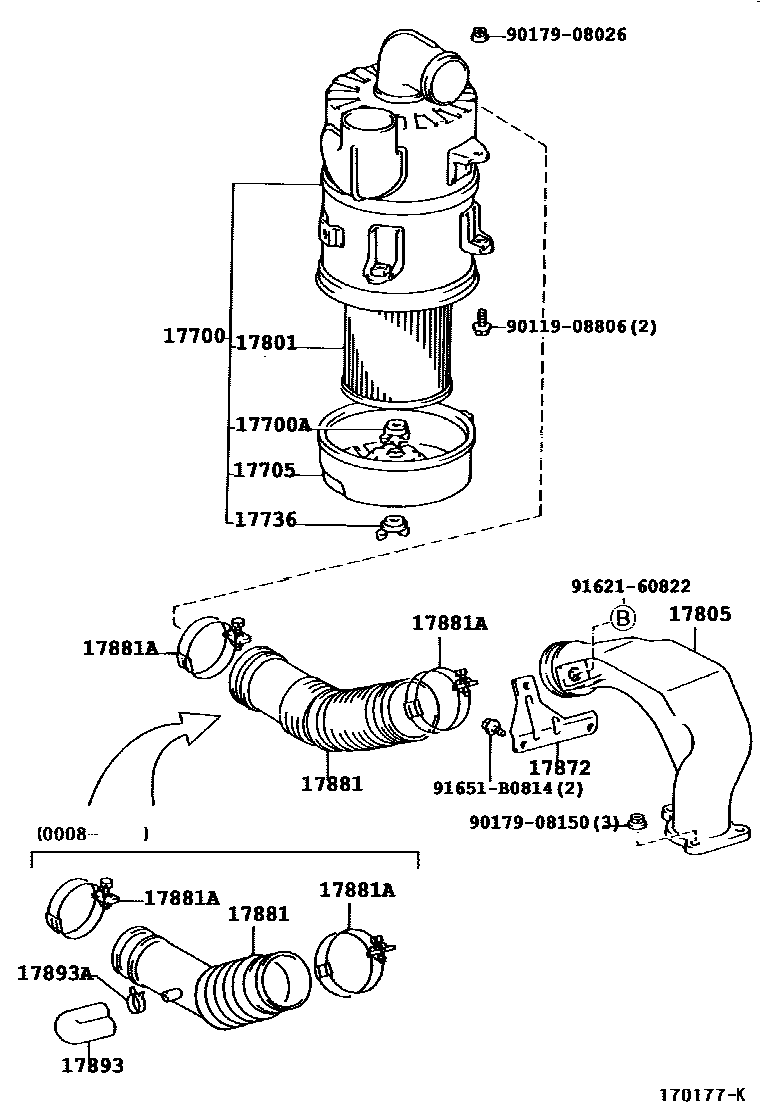

AIR CLEANER

0001 1 0008 1 0009 1 0013 1TURKEY SPEC 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1

17700CLEANER ASSY, AIR

main17700-54580i2L,3L..LH10#,11#..GEN198908-199010

main17700-54630i2L,3L..LH10#,11#,125198908-199010

W(AIR CLEANER INFORMATION LABEL)

main17700-54631i3L..LH125..GL;3L..LH125..5F..ARL;3L..LH113,115..ARL,GCC,GEN;2L,3L..LH102,103,104,112,114199010-199907

W(AIR CLEANER INFORMATION LABEL)

main17700-54631i3L..LH125..4FC;3L..LH105,113,115..CIS199808-199907

main17700-54632i3L..LH103,113,115..GEN;2L..LH102,112..LHD..06S199907-200501

W(AIR CLEANER INFORMATION LABEL)

main17700-54710i2L..LH114..RHD199010-200501

main17700-5B140i5L..LH172..4FC199808-200501

main17700-5B220i5LE..LH172200108-200501

main17700-75010i1RZ,2RZ..RZH102,103,113..RHD..06S..(4FC,5F)..GEN198908-199202

main17700-75011i2RZ..RZH103,113..GEN199202-199508

main17700-75020i2RZ..RZH103,113..ARL;1RZ,2RZ..RZH102,104,112,114,125198908-199202

main17700-75021i2RZ..RZH115..STD;1RZ,2RZ..RZH10#,112,113,114,125..ARL,GCC,GEN199202-199907

main17700-75022i1RZ..RZH112..4D..06S199907-200208

main17700-75031i1RZE..RZH102,112199405-199703

main17700-75040i1RZ..RZH102..4D;1RZ..RZH104,112,114;1RZ..RZH102..5D..03S;1RZ..RZH102..LHD..06S198908-199202

W(HOT AIR INTAKE)

main17700-75041i2RZ..RZH113..GCC;1RZ,2RZ..RZH102,104,105,112,114,115199202-200108

W(HOT AIR INTAKE)

main17700-75130i2RZE..RZH103..SG;2RZE..RZH103,105,113,115,125..ARL,CIS199508-200508

main17700-75130i2RZE..RZH103..03S..STD..GEN;1RZE,2RZE..RZH112,113,135,153..4D..(GL,STD)..GEN199608-200501

CYCLONE TYPE

17700ANUT, WING(FOR AIR CLEANER)

main90175-08008i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#198908-200501

17705CAP SUB-ASSY, AIR CLEANER

main17705-75010i2RZ#..RZH103,113..GEN;1RZ..RZH102..RHD..06S..5F198908-199703

main17705-75020i5L..LH172..4FC199508-200208

CYCLONE TYPE

main17705-75020i5LE..LH172;5L..LH172..HRF;5L..LH172..5D..GEN;5L..LH172..03S..GL;5L..LH172..5F..(ARL,GCC);2L,5L..LH112,154,184..4D;2L,5L..LH114,172..LHD..4D;5L..LH172,174..4D..(06S,15S)..STD..(GCC,GEN)198908-200501

17736NUT, AIR CLEANER CASE

main90175-06003i5L..LH172..4FC198908-200501

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-54100i3L..LH103,113,115..GEN;2L..LH102,112..LHD..06S198908-200501

main17801-75010i2L..LH114..RHD198908-200208

CYCLONE TYPE

main17801-75010i5L..LH174..12S;5L..LH172..RHD..SRF..4D..03S..STD..GEN198908-200501

W(AIR CLEANER INFORMATION LABEL)

main17801-75010i3L..LH125..4FC;5L..LH172,174,184;3L,5L..LH105,113,115,166,176..CIS199808-200108

17805CONNECTOR SUB-ASSY, INTAKE AIR

main17805-54180i5L..LH174..12S198908-200501

main17805-54380i5LE..LH172200108-200501

main17805-75010i1RZ,2RZ..RZH10#,11#,125198908-199508

main17805-75090i1RZ..RZH112..4D..06S199508-200208

main17860-75020i2RZE..RZH103,105,113,115,125,135,15#199508-200508

17872BRACKET, INTAKE AIR CONNECTOR

main17872-54030i3L..LH103,113,115,125;2L,3L,5L..LH102,105,112,174..LHD..(06S,10S,12S)198908-200501

17881HOSE, AIR CLEANER, NO.1

main17881-54420i2L,3L,5L..LH10#,11#,162,172,174,184..CIS,GCC,GEN198908-200008

main17881-54460i3L..LH103,113,125..ARL198908-199808

main17881-54680i5L..LH166,176199808-200008

main17881-54690i5L..LH172..LHD..5D..GEN200108-200208

TURKEY SPEC

main17881-54690i5L..LH172..5F..ARL;5L..LH154,184..10S,11S,14S199808-200501

main17881-54760i5L..LH172..LHD..5D..GEN200008-200501

main17881-54770i5L..LH166,176200008-200408

main17881-54840i5LE..LH172200208-200501

main17881-75010i1RZ,2RZ#..RZH10#,11#,125198908-199408

main17881-75020i1RZ,2RZ#..RZH10#,11#,125199408-199508

main17881-75070i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#199508-200208

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-80001i1RZ,2RZ#..RZH10#,11#,125199408-199508

AIR PIPE SIDE

main96111-10750i3L..LH103,113,125..ARL199001-199808

AIR CLEANER SIDE

main96111-10780i5L..LH174..12S;2L,5L..LH114,172..RHD..SRF..4D..(03S,15S)..STD..GEN199808-200501

AIR CLEANER SIDE

main96111-10800i5L..LH174..12S;2L,5L..LH114,172..RHD..SRF..4D..(03S,15S)..STD..GEN199001-200501

AIR CONNECTOR SIDE

main96111-10800i2L,3L..LH10#,11#,125198908-199001

main96111-10850i1RZ..RZH112..4D..06S199505-200208

AIR CLEANER SIDE

main96111-10880i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#198908-200208

CONNECTOR SIDE

main96111-10900i1RZ,2RZ#..RZH10#,11#,125198908-199505

AIR CLEANER SIDE

17893RESONATOR, INTAKE AIR

main17893-62040i3L..LH103,113,125..ARL199808-200501

17893ACLAMP, HOSE

main96111-10530i2L,5L..LH114,172..RHD..SRF..4D..(03S,15S)..STD..GEN199808-200501

9011908806

main90119-08806

9017908026

main90179-08026

9017908150

main90179-08150

9162160822

main91621-60822

91651B0814

main91651-B0814

16 parts on this diagram · 10 diagrams in section
