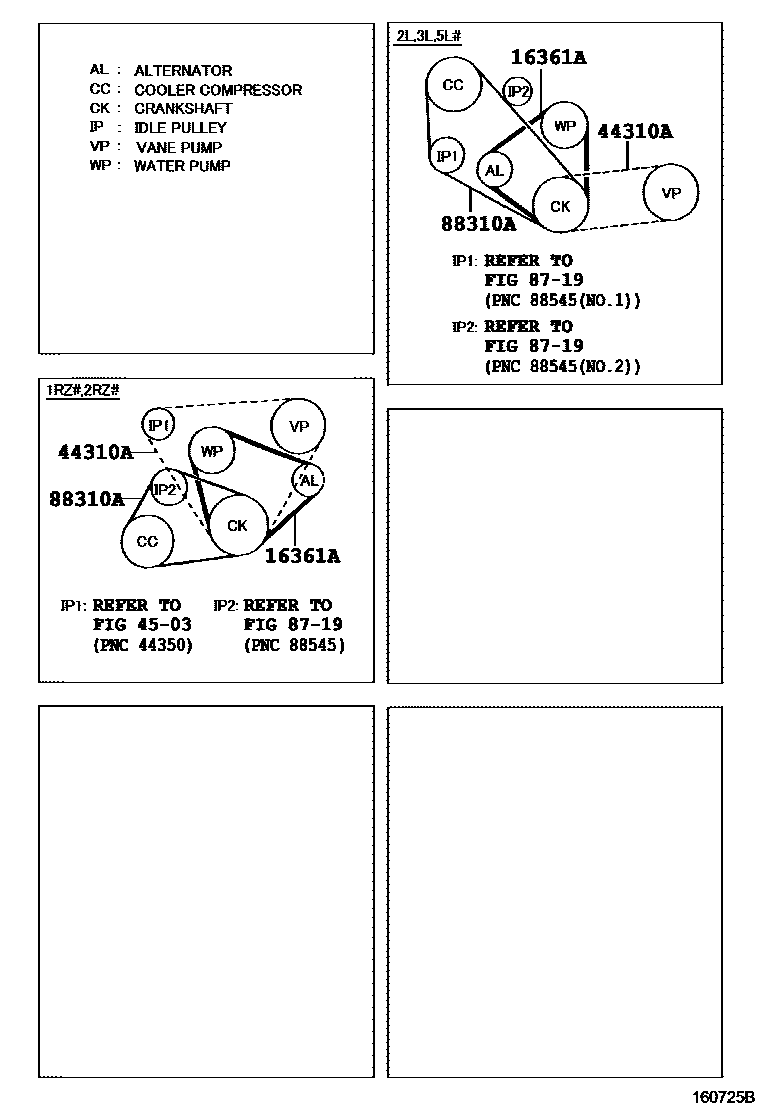

V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-92016i5L..LH172..RHD..SRF..4D..03S..STD..GEN; 5LE..LH172;5L..LH174..12S200301-200312

MALAYSIA SPEC,MITSUBOSHI; MITSUBOSHI

main90080-92017i2L..LH112..RHD199907-200210

BANDO

main90916-02209i2L,3L..LH10#,11#,125198908-199604

main90916-02211i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,184199604-200008

main90916-02238i1RZ,2RZ..RZH10#,11#,125198908-199009

main90916-02336i1RZ..RZH112..4D..06S199907-200208

main90916-02427i5L..LH166,176199808-199907

44310ABELT, V(FOR VANE PUMP)

main90916-02262iLH102..RHD;LH102..LHD..03S;LH103,104,105,11#,125198908-199608

L=845

main99332-01120iRZH103..03S..GEN200208

L=1120

main99332-51120iRZH103..GL,SGL,STD;RZH102,104,105,11#,125,135,153198908-199808

BANDO

main99364-30830iLH166,176199907-200408

L=830

main99364-80830iLH166,176199808-199907

L=830

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02354iRZH102,103,112,113..(SGL,STD)..(CIS,GCC,GEN)199310-199608

L=860

main90916-02465iLH172..06S;LH172..03S..STD..(GCC,GEN);LH102,103,112,113,162..CIS,GCC,GEN199907-200602

L=1230

main90916-02528iLH184..5F..ARL200208-200602

L=1240

main90916-02530iLH162,172..ARL200010-200501

L=1230,BANDO

main99332-01230iLH102,103,112,113198908-199102

main99332-01240iLH125;LH184..5F..ARL199907-200208

L=1240

main99332-11230iLH103,113..ARL199808-199907

L=1230

main99332-11245iLH166,176199907-200408

L=1245

main99332-61240iLH172..GCC;LH114,115,172,174..SG;LH104,105,113,154,164..LHD..SRF199907-200012

L=1240

main99364-00860iRZH102,103,112,113..STD198908-199102

main99364-20860iRZH103,113..ARL199308-199508

main99364-30860iRZH103,113..ARL199907-200308

L=860

main99364-70860iRZH102,103,112,113..CIS,GCC,GEN199102-199310

BANDO

main99364-70880iRZH104,114199102-199308

L=880

main99364-80860iRZH103,113..ARL199508-199608

main99364-80880iRZH10#,113,114,115,125..SG..(03S,09S,10S,12S,14S,15S)199308-199907

L=880,BANDO

main99364-90880iRZH125199508-199608

L=880,MITSUBOSHI

5 parts on this diagram · 1 diagram in section
