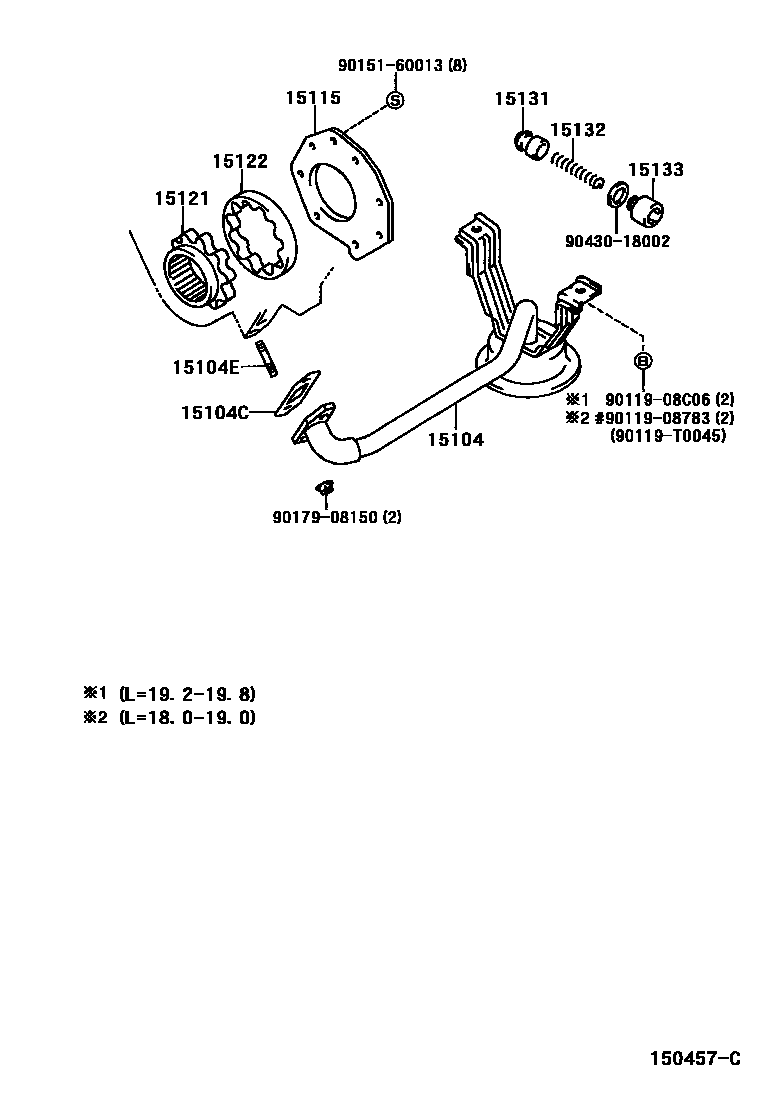

ENGINE OIL PUMP

0001 1 0002 1

15104STRAINER SUB-ASSY, OIL

main15104-54161i5L..LH166,176199808-199907

main15104-54180i2L,3L..LH10#,11#,125198908-199105

main15104-54181i2L,3L..LH10#,11#,125199105-199701

main15104-54220i2L,5L..LH114,172..RHD..SRF..4D..(03S,15S)..STD..GEN199907

main15104-54230i5L..LH166,176200308-200408

main15104-75010i1RZ,2RZ#..RZH10#,11#,125198908-199508

main15104-75070i1RZ..RZH112..4D..06S199907-200208

15104CGASKET(FOR OIL STRAINER)

main15149-54012i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184198908-200008

main15149-54030i2L,5L..LH114,172..RHD..SRF..4D..(03S,15S)..STD..GEN200008

15104EBOLT, STUD(FOR OIL STRAINER)

main92122-40816×2i5L..LH172..STD;5L..LH162..5F..ARL;5L..LH172..03S..GL;2L,5LE..LH112,172..4D;5L..LH162,174..STD..(CIS,GCC,GEN);2L,5L..LH102,104,114,154,164,166,176,184..03S,10S,11S,12S,14S,15S199907-200208

main92122-80816×2i5L..LH172..GL;5L..LH172..HRF;5L..LH172..4D..06S;5L..LH172..ARL,GCC;5L..LH172..5D..GEN;2L,5L..LH114,172..LHD..4D;2L,5L..LH112,154,174,184..(03S,06S,10S,11S,14S,15S)..(ARL,GCC,GEN); 5LE..LH172200208-200501

15115COVER, OIL PUMP

main15115-54020i2L,3L..LH10#,11#,125198908-198912

main15115-54021i2L,3L..LH10#,11#,125198912-199505

main15115-54022i5L..LH174..12S200402

main15115-75010i1RZ,2RZ#..RZH10#,11#,125198908-199508

main15115-75050i1RZ#,2RZ#..RZH10#,11#,125,135,153199508-199703

main15115-75051i2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15S199703

15121GEAR, OIL PUMP DRIVE

main15121-54020i5L..LH174..12S200402

main15121-75010i1RZ,2RZ..RZH10#,11#,125198908-199308

15122GEAR, OIL PUMP DRIVEN

main15122-54020i5L..LH174..12S200402

main15122-62010i1RZ,2RZ..RZH10#,11#,125198908-199308

15131VALVE, OIL PUMP RELIEF

main15131-24010i1RZ,2RZ..RZH10#,11#,125198908-199308

main15131-54010i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184198908-200008

15132SPRING, OIL PUMP RELIEF VALVE

main15132-54010i5L..LH174..CIS;5L..LH162..GEN;2L,5L..LH102,104,16#,176..4D..(03S,12S,15S)..5F199907-200408

main15132-75010i1RZ..RZH112..4D..06S199907-200208

15133PLUG, OIL PUMP RELIEF VALVE

main15133-54010i5L..LH162..4FC;5L..LH172..06S..GL199907-200108

9011908783

main90119-08783

9011908C06

main90119-08C06

90119T0045

main90119-T0045

9015160013

main90151-60013

9017908150

main90179-08150

9043018002

main90430-18002

15 parts on this diagram · 2 diagrams in section
