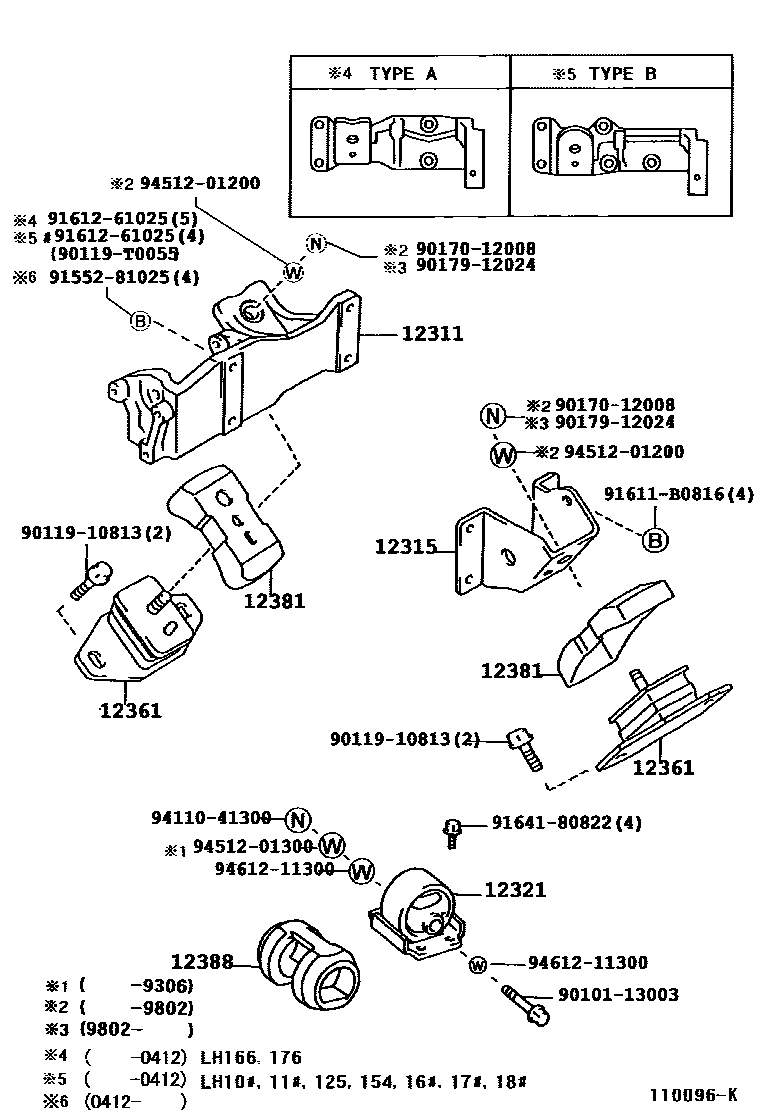

MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-54140i5L..LH174..12S200402

TYPE A:REFER TO ILLUSTRATION

main12311-54150i5L..LH166,176199808-199907

TYPE B:REFER TO ILLUSTRATION

main12311-75010i1RZ#,2RZ#..RZH10#,11#,125,135,153198908-199708

main12311-75080i1RZ..RZH112..4D..06S199907-200208

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12312-54021i2L..LH102,112..LHD..06S199907-200008

main12315-75010i1RZ#,2RZ#..RZH10#,11#,125,135,153198908-199708

main12315-75070i2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15S199708

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12303-54020i1RZ,2RZ..RZH10#,11#,125..4F,5F; 2L,3L..LH10#,11#,125..5F198908-199308

main12303-54030i1RZ,2RZ..RZH103,113,114..4FC; 3L..LH103,113..4FC198908-199308

main12303-54041i5L..LH166,176199808-199907

main12303-67020i1RZ#,2RZ#..RZH10#,11#,125..5F; 2L,3L..LH10#,11#,125..5F199308-199512

main12303-67021i1RZ..RZH112..4D..06S199907-200208

main12303-67030i2RZ..RZH103,113..4FC; 3L..LH103,113..4FC199308-199512

main12303-67031i2RZE..RZH103,113,125..4FC; 3L,5L..LH103,113,125,162,172,184..4FC199907-200501

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-38130×2i1RZ..RZH112..4D..06S199907-200208

main12361-54142×2i2L,3L..LH10#,11#,125198908-199001

main12361-54143×2i2L,3L..LH10#,11#,125199001-199808

main12361-54230×2i5L..LH162..4FC;5L..LH172..06S..GL199907-200108

12381STABILIZER, ENGINE MOUNTING

main12381-54040×2i5LE..LH172;5L..LH172..HRF;5L..LH172..5D..GEN;5L..LH172..03S..GL;5L..LH172..5F..(ARL,GCC);2L,5L..LH112,154,184..4D;2L,5L..LH114,172..LHD..4D;5L..LH172,174..4D..(06S,15S)..STD..(GCC,GEN)199907-200501

main12381-54060×2i2L,3L..LH10#,11#,125198908-199011

main12381-73010×2i1RZ,2RZ#..RZH10#,11#,125198908-199508

main12381-75030×2i1RZ..RZH112..4D..06S199907-200208

12388STOPPER, ENGINE MOUNTING BRACKET, REAR

main12388-67010i1RZ#,2RZ#..RZH10#,11#,125199512-199606

main12388-67011i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#; 2L,3L,5L#..LH10#,11#,125,154,16#,17#,184199907

9010113003

main90101-13003

9011910813

main90119-10813

90119T0055

main90119-T0055

9017012008

main90170-12008

9017912024

main90179-12024

9155281025

main91552-81025

91611B0816

main91611-B0816

9161261025

main91612-61025

9164180822

main91641-80822

9411041300

main94110-41300

9451201200

main94512-01200

9451201300

main94512-01300

9461211300

main94612-11300

19 parts on this diagram · 2 diagrams in section
