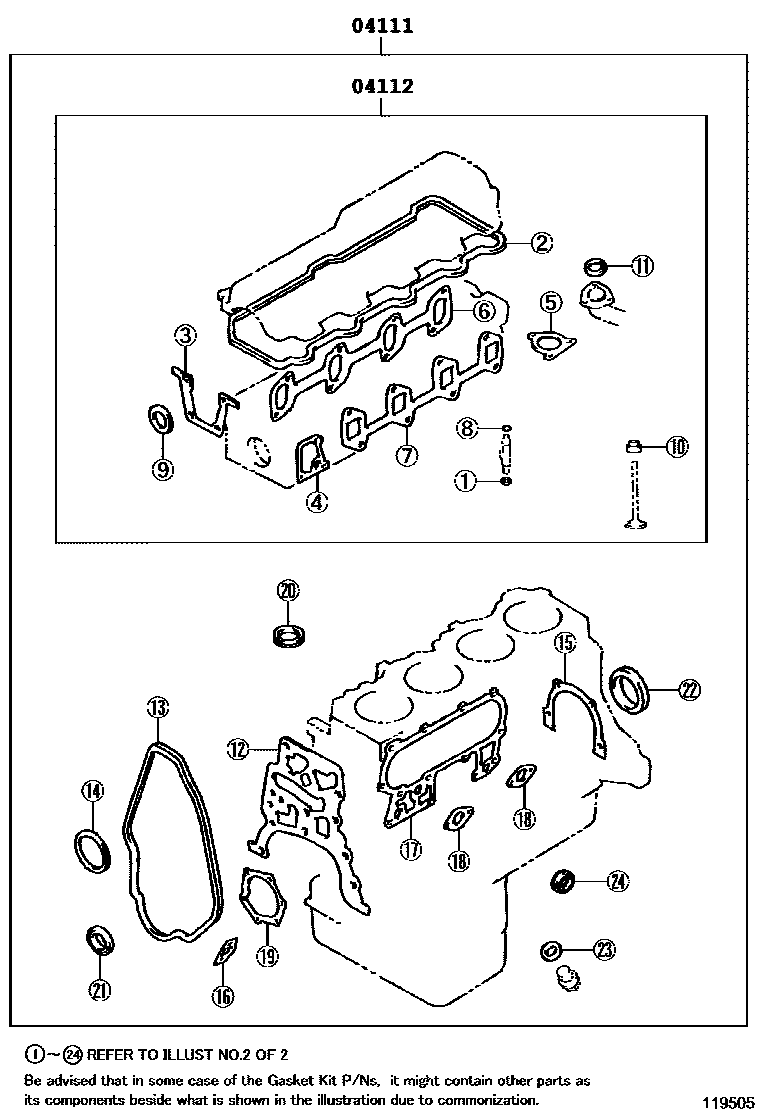

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1W(EGR) 0004 1W(EGR) 0005 1W/O(EGR) 0006 1W/O(EGR) 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-05011i5L..LH172..RHD..SRF..4D..03S..STD..GEN200210-200401

MALAYSIA SPEC

main04111-54082i2L..LH102,104,112,114198908-199108

main04111-54083i2L..LH102,104,112,114199108-199705

main04111-54084i2L..LH102,104,112,114199907-200008

main04111-54085i2L..LH10#,11#200008-200401

main04111-54092i3L..LH103,105,113,115,125198908-199108

main04111-54093i3L..LH103,105,113,115,125199108-199705

main04111-54094i3L..LH103,105,113,115,125199907-200008

main04111-54240i5L..LH162,172,174,184..RHD199907-200008

main04111-54241i5L..LH172,184..GL; 5L..LH172..4D..06S..STD;5L..LH162,172,174..RHD..SRF..(03S,15S)..STD..GEN200008-200401

SINGAPORE SPEC

main04111-54290i5L..LH166,17#..LHD199907-200008

main04111-54291i5L..LH154,16#,176;5L..LH172,174,184..(03S,06S,14S,15S)..STD200008-200401

main04111-54450i5L..LH184..4FC;5L..LH172..STD..(GCC,GEN);2L,5L..LH10#,11#,154,162,164,174..CIS,GCC,GEN200401-200602

main04111-54490i5LE..LH172200401-200501

main04111-54510i5L..LH172..RHD..SRF..4D..03S..STD..GEN200401-200602

THAILAND SPEC

main04111-54840i5L..LH166,176200401-200408

main04111-75010i1RZ..RZH102,104,112,114198908-198912

main04111-75011i1RZ..RZH102,104,112,114199308-199608

main04111-75012i1RZ..RZH112..4D..06S200009-200204

main04111-75013i1RZ..RZH102,104,112,114200308-200401

main04111-75021i1RZE..RZH102,112199508-199703

main04111-75030i2RZ..RZH103,113198908-198912

main04111-75031i2RZ..RZH103,105,113,115,125199308-199907

main04111-75032i2RZ..RZH105,113,115200009-200401

main04111-75041i2RZE..RZH103,105,113,115,125,135,15#199907-200009

main04111-75042i2RZE..RZH103,105,113,115,125,135,15#; 2RZE..RZH103..03S..GEN200009-200308

main04111-75043i2RZE..RZH103,105,113,115,125,135,15#200308-200401

main04111-75330i1RZ..RZH102,104,112,114200401

main04111-75350i2RZE..RZH103,105,113,115,125,135,15#200401-200508

main04111-75370i2RZ..RZH113,115200401-200501

04112GASKET KIT, ENGINE VALVE GRIND

main04112-05010i5L..LH174..12S200211-200401

main04112-54070i2L,3L..LH10#,11#,125198908-199108

main04112-54071i2L,3L..LH10#,11#,125199108-199705

main04112-54072i2L,3L..LH10#,11#,125199705-200008

main04112-54073i2L..LH10#,11#200008-200401

main04112-54180i5L..LH162,172,174,184..RHD199907-200008

main04112-54181i5L..LH172,184..GL; 5L..LH172..4D..06S..STD;5L..LH162,172,174..RHD..SRF..(03S,15S)..STD..GEN200008-200401

SINGAPORE SPEC

main04112-54230i5L..LH166,17#..LHD199907-200008

main04112-54231i5L..LH154,16#,176;5L..LH172,174,184..(03S,06S,14S,15S)..STD200008-200401

main04112-54390i5L..LH184..4FC;5L..LH172..STD..(GCC,GEN);2L,5L..LH10#,11#,154,162,164,174..CIS,GCC,GEN200401-200602

main04112-54400i5L..LH172..GL;5L..LH172..ARL;5L..LH162,184..4D..5F; 5L..LH172..LHD..4D; 5L..LH174..RHD..SRF;5L..LH162,172..RHD..5D..03S200406-200501

PERU SPEC; SINGAPORE SPEC

main04112-54430i5LE..LH172200401-200501

main04112-54620i5L..LH166,176200401-200408

main04112-54630i5L..LH172..GL;5L..LH172..ARL;5L..LH162,184..4D..5F; 5L..LH172..RHD..SRF..4D..03S..STD..GEN; 5L..LH174..RHD..SRF;5L..LH162,172..RHD..5D..03S200401-200406

SINGAPORE SPEC; THAILAND SPEC

main04112-75010i1RZ..RZH102..STD;1RZ..RZH104..RHD;1RZ..RZH104,114..GL199907-200401

main04112-75020i1RZE..RZH102,112199508-199703

main04112-75030i2RZ..RZH103,105,113,115,125199308-199907

main04112-75040i2RZE..RZH103,105,113,115,125,135,15#199907-200401

main04112-75320i1RZ..RZH102,104,112,114200401

main04112-75340i2RZE..RZH103,105,113,115,125,135,15#200401-200508

main04112-75360i2RZ..RZH113,115200401-200501

2 parts on this diagram · 18 diagrams in section
