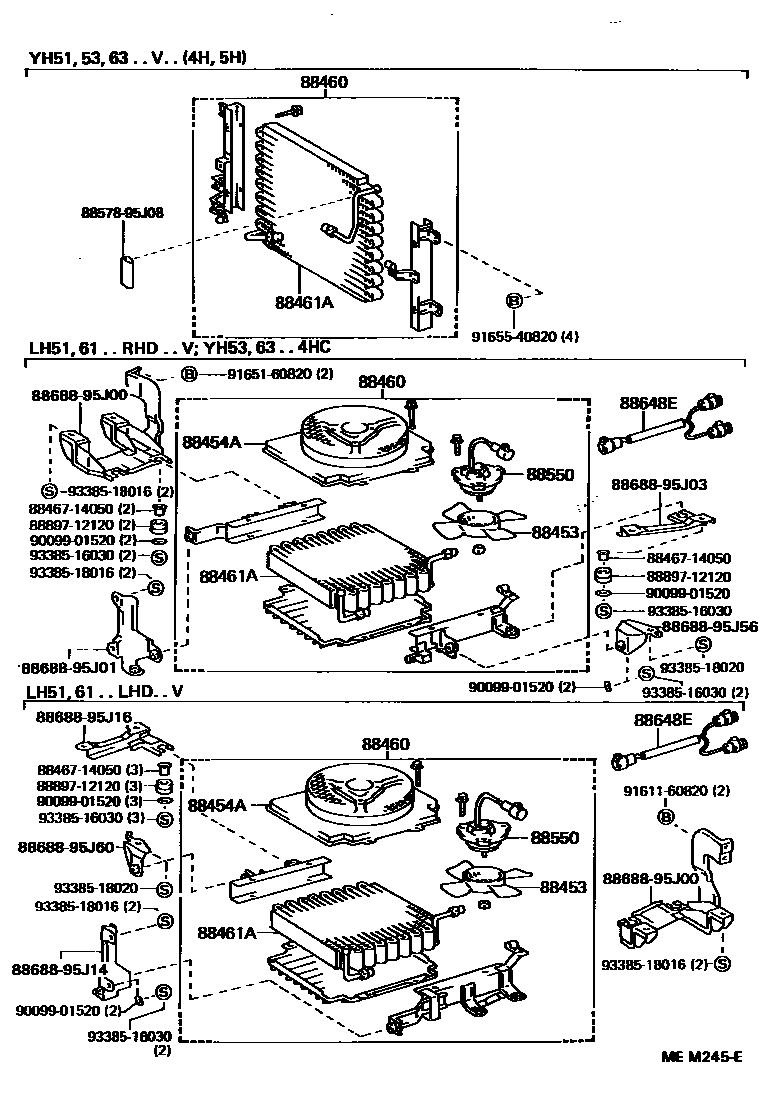

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER 0002 1CONDENSER 0003 1CONDENSER 0004 1FRONT PIPING 0005 1FRONT PIPING 0006 1FRONT PIPING 0007 1FRONT PIPING 0008 1FRONT PIPING 0009 1FRONT PIPING 0010 1FRONT PIPING 0011 1FRONT PIPING 0012 1REAR PIPING

88453FAN, COOLING (FOR CONDENSER)

main88453-10010iLH51,61..COM; LH71,YH53,73..05S,15S; YH51,61..COM..SRF198708-198908

FR CROSS MEMBER

main88453-28010iLH51,61..COM; LH51,61..LHD..V; LH71; YH53,63..4HC..ARL198708-198908

FR UNDER FLOOR

88454ASHROUD, FAN

main88454-95J00iLH51,61..COM; LH71198708-198908

FR UNDER FLOOR

main88454-95J03iLH51,61..COM; LH71,YH53,73..05S,15S; YH51,61..COM..SRF198708-198908

FR CROOS MEMBER; FR CROSS MEMBER

88460CONDENSER ASSY, COOLER

main88460-95J00iYH61..SRF..15S;YH5#,73..05S,12S,15S; YH63..4HC..GEN;YH5#,61,63..V..MTM..STD..(ARL,GEN)198708-198910

RADIATOR

main88460-95J03iLH51,61,71,YH5#,61,73..RHD..(05S,12S,15S)198708-198910

FR CROSS MEMBER

main88460-95J06iLH51,61,71..RHD..COM198708-198910

FR UNDER FLOOR

main88460-95J07iLH51,61..V4D..06S;YH53,63..4HC..ARL198708-198908

main88460-95J08iLH51,61..LHD..V198708-198908

main88460-95J10iLH51,61,YH51,61..LHD..COM..SRF198708-198910

FR CROSS MEMBER

main88460-95J11iLH51,61..LHD..COM198708-198910

FR UNDER FLOOR

88461ACORE, COOLER CONDENSER

main88461-95J00iYH51,61..COM..SRF; YH51,61..V; YH63..GEN198708-198908

RADIATOR

main88461-95J01iLH51,61,YH51,61..COM..SRF198708-198908

FR CROSS MEMBER

main88461-95J02iLH51,61..COM198708-198908

FR UNDER FLOOR

main88461-95J03iLH51,61..LHD..V; LH51,61..V4D..06S198708-198908

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-10040iLH51,61..COM; YH51,61..COM..SRF198708-198908

FR CROSS MEMBER

main88550-87002iLH51..LHD..VSP; LH51..VSG..03S; LH61..LHD..V198708-198908

main88550-95J03iLH51,61..COM; LH71; LH71,YH53,73..05S,15S198708-198908

FR CROSS MEMBER; FR UNDER FLOOR

88648EWIRING, COOLER

main88648-95J01iLH51,61..V4D..06S198708-198908

8846714050CUSHION, COOLER CONDENSER, NO.1

main88467-14050

8857895J08PAKING, COOLER AIR DUCT

main88578-95J08

8868895J00BRACKET, COOLER DIAPHRAGM

main88688-95J00

8868895J01BRACKET, COOLER DIAPHRAGM

main88688-95J01

8868895J03BRACKET, COOLER DIAPHRAGM

main88688-95J03

8868895J14BRACKET, COOLER DIAPHRAGM

main88688-95J14

8868895J16BRACKET, COOLER DIAPHRAGM

main88688-95J16

8868895J56BRACKET, COOLER DIAPHRAGM

main88688-95J56

8868895J60BRACKET, COOLER DIAPHRAGM

main88688-95J60

8889712120VALVE, COOLER MAGNET

main88897-12120

9009901520

main90099-01520

9161160820

main91611-60820

9165160820

main91651-60820

9165540820

main91655-40820

9338516030

main93385-16030

9338518016

main93385-18016

9338518020

main93385-18020

23 parts on this diagram · 12 diagrams in section
