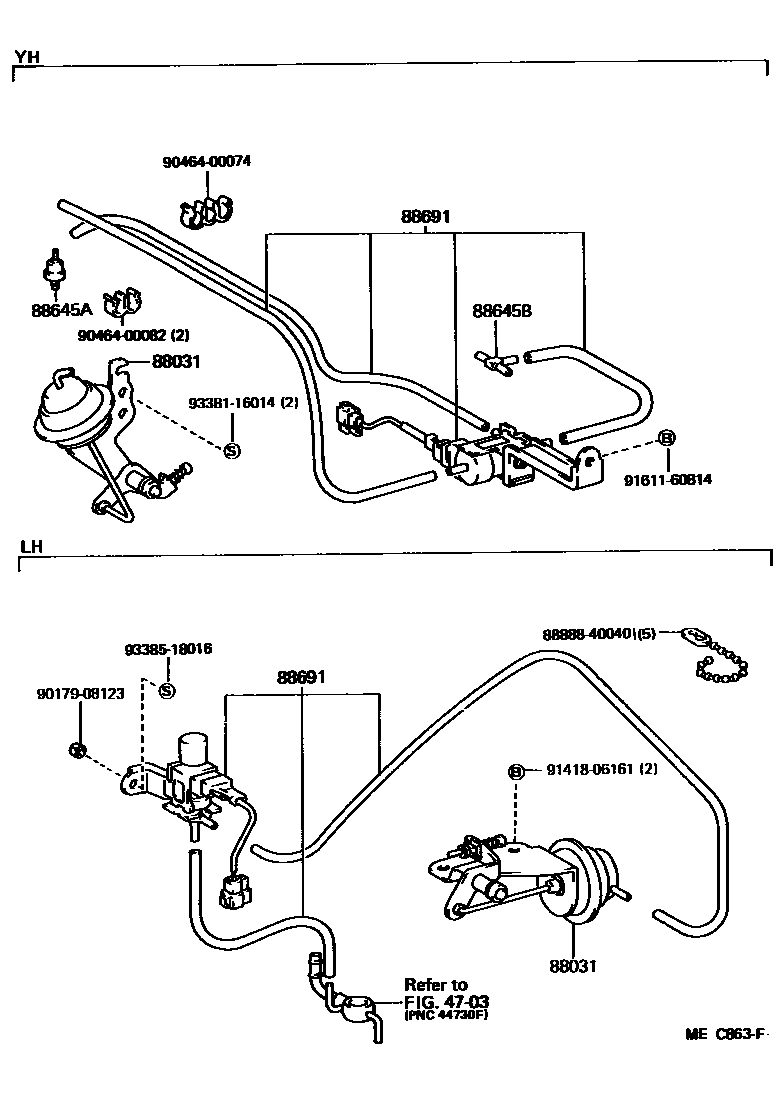

HEATING & AIR CONDITIONING - VACUUM PIPING

4703

88031ACTUATOR SET, IDLE-UP

main88031-28010iYH5#,61,63,73..ARL,GEN198708-198908

main88031-35040iLH51,61,71198708-198908

88645AUNION (FOR IDLE UP DEVICE)

main90404-51093iYH53,63..(4FC,4H,5F,5H)..ARL198708-198908

88645BJOINT, NO.1 (FOR IDLE UP DIVICE)

main90413-04005iYH61..SRF;YH63..4HC..GEN;YH5#,63..(4FC,4H,5F,5H)..(ARL,GEN)198708-198908

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-95J11iLH71198708-198908

main88690-95J12iYH51,61,63..SRF..GEN198708-198908

main88690-95J27iYH53,63..(4FC,4H,5F,5H)..ARL198708-198908

8888840040BAND (FOR COOLER COMPRESSOR)

main88888-40040

9017908123

main90179-08123

9046400074

main90464-00074

9046400082

main90464-00082

9141806161

main91418-06161

9161160814

main91611-60814

9338116014

main93381-16014

9338518016

main93385-18016

13 parts on this diagram · 1 diagram in section
