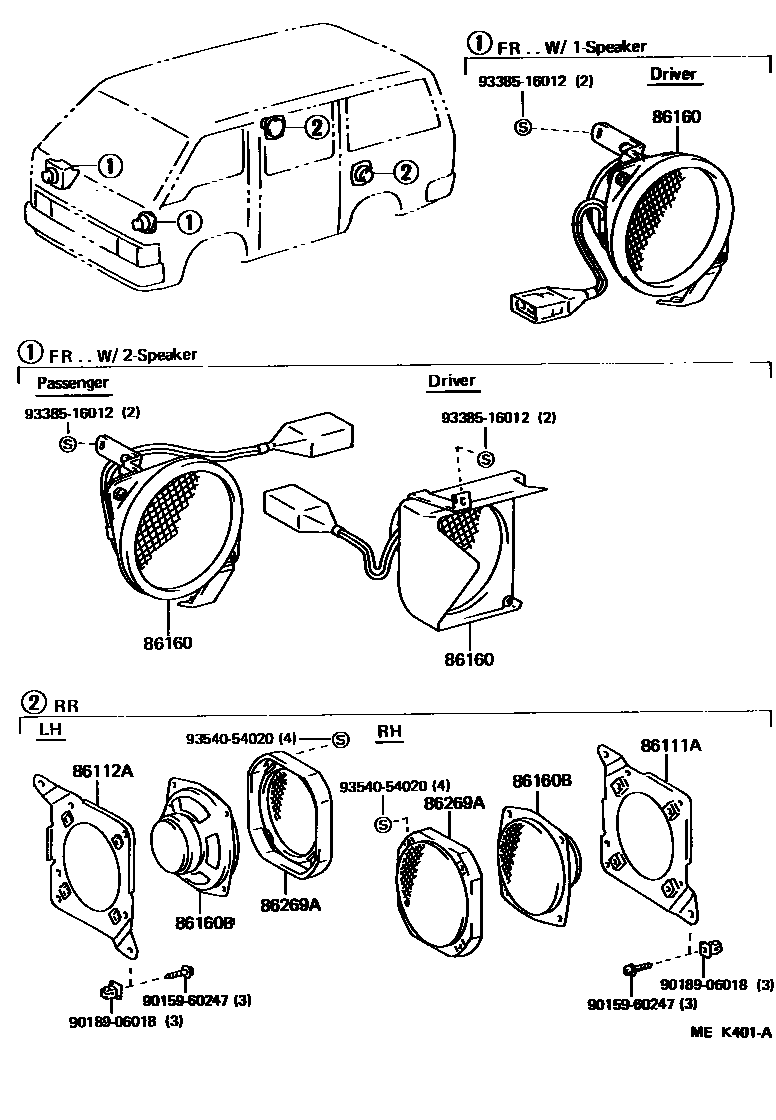

SPEAKER

86111ABRACKET, STEREO SPEAKER, RH

main86111-95J00iYH53..05S198708-198908

86112ABRACKET, STEREO SPEAKER, LH

main86112-95J00iYH53..05S198708-198908

86160SPEAKER ASSY, FRONT NO.1

main86160-95J07iLH51,61,71,YH53,60,63,73..(4H,4HC,5H)..(ARL,SA); LH51,61,YH51,61,63..RHD..GEN198708-198908

main86160-95J08iLH51,61,YH51,61..LHD198708-198908

main86160-95J09iLH51,61,YH51,61,63..RHD..GEN; YH53..05S198708-198908

LH

main86160-95J10iLH51,61,YH51,61,63..RHD..GEN; YH53..05S198708-198908

RH

main86160-95J15iLH51,61,YH51,61..LHD198708-198908

RH

main86160-95J16iLH51,61,YH51,61..LHD198708-198908

LH

86160BSPEAKER ASSY, REAR

main86160-95J20×2iYH53..05S198708-198908

86269AGRILLE, SPEAKER

main86269-90K00×2iYH53..05S198708-198908

9015960247

main90159-60247

9018906018

main90189-06018

9338516012

main93385-16012

9354054020

main93540-54020

9 parts on this diagram · 1 diagram in section
