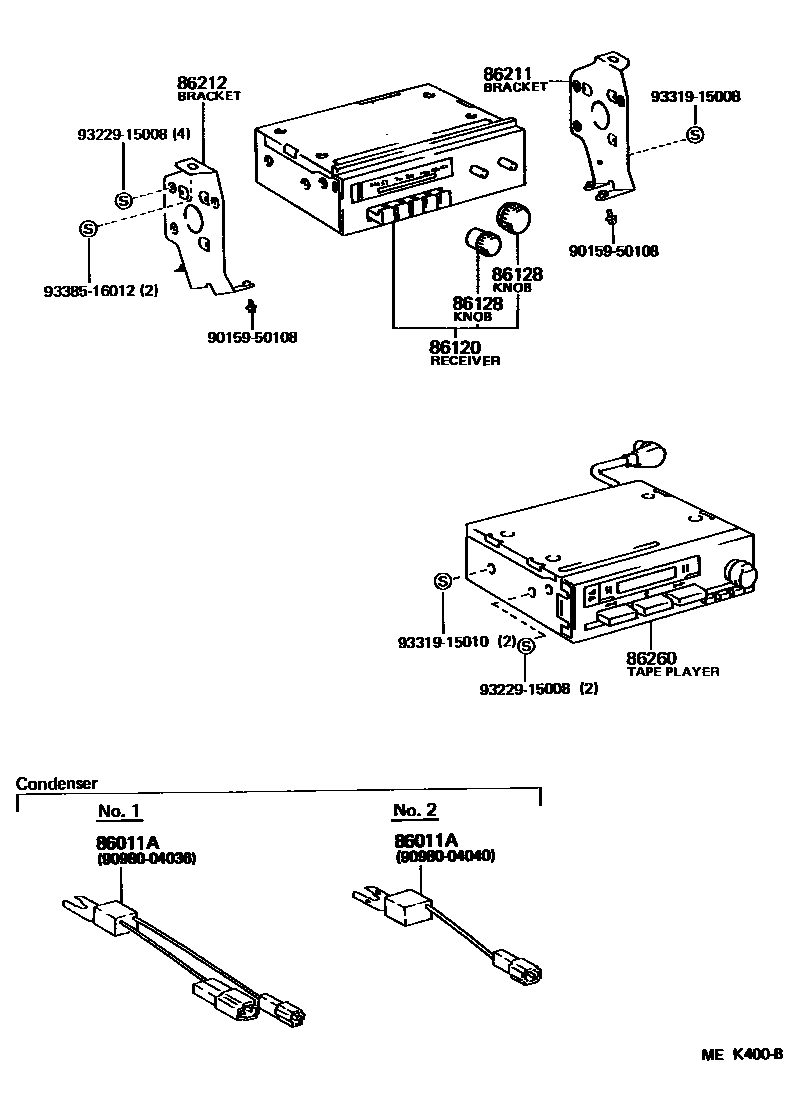

RADIO RECEIVER & AMPLIFIER & CONDENSER

86011ACONDENSER, RADIO SETTING

main90980-04036iYH5#,6#,73198708-199111

NO.1

main90980-04040iYH53,63..09S,15S199111-199206

NO.2

86120RECEIVER ASSY, RADIO

main86120-16460iLH51,61,YH51,61,63..GEN198708-198908

MATSUSHITA,ID=5108,MW/SW 5 BUTTON

main86120-16530iLH51,YH51,61..GEN;LH61,71,YH63,73..ARL,GEN; YH63..SA;LH51,YH53,60..(03S,09S)..(ARL,SA)198708-198809

MATSUSHITA,ID=5010,AM 5 BUTTON

main86120-20720iLH51,YH51,61..GEN;LH61,71,YH63,73..ARL,GEN198811-198908

MATSUSHITA,AM/FM 5 BUTTON

main86120-22780iYH53..05S198708-198908

AM/FM 5 BUTTON

main86120-90K06iLH51,YH51,61..GEN;LH61,71,YH63,73..ARL,GEN198708-198809

AM/FM 5 BUTTON

86128KNOB, RADIO RECEIVER

main86128-20010iLH51,61,YH51,61,63..GEN; LH51,YH51,61..GEN;LH61,71,YH63,73..ARL,GEN198708-198908

PWR/VOL

main86128-20030iLH51,61,YH51,61,63..GEN; LH51,YH51,61..GEN;LH61,71,YH63,73..ARL,GEN198708-198908

TONE

main86128-20050iLH51,61,YH51,61,63..GEN; LH51,YH51,61..GEN;LH61,71,YH63,73..ARL,GEN198708-198908

TUNE

main86128-22790iYH53..05S198708-198908

TUNE

main86128-22810iYH53..05S198708-198908

PWR/VOL

86211BRACKET, RADIO, NO.1

main86211-95J10iLH51,61,71,YH5#,6#,73198708-199111

86212BRACKET, RADIO, NO.2

main86212-95J08iLH51,61,71,YH5#,6#,73198708-199111

86260TAPE PLAYER ASSY

main86260-17011iLH51,61,YH51,61,63..GEN198708-198908

main86260-22160iYH53..4FC198708-198908

HIGH GRADE PACKAGE

9015950108

main90159-50108

9098004036

main90980-04036

9098004040

main90980-04040

9322915008

main93229-15008

9331915008

main93319-15008

9331915010

main93319-15010

9338516012

main93385-16012

13 parts on this diagram · 1 diagram in section
