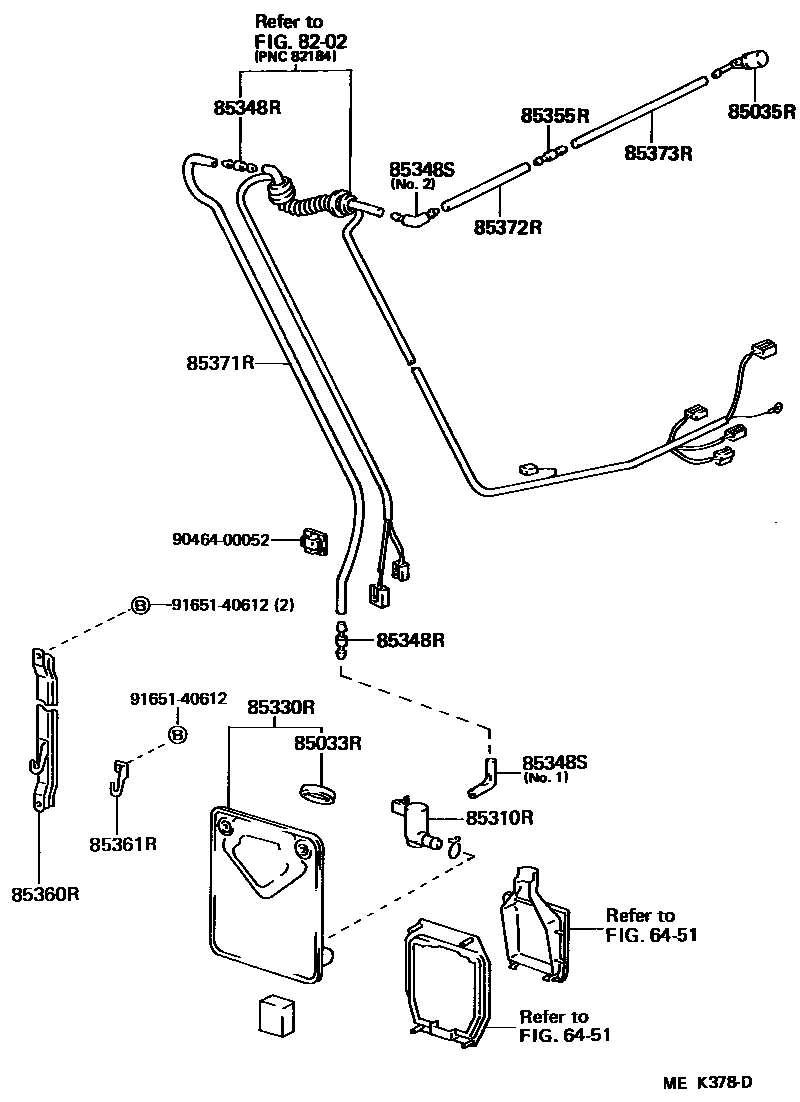

REAR WASHER

0001 1 0002 1

6451INSIDE TRIM BOARD

→ Go to FIG 64-51

8202WIRING & CLAMP

→ Go to FIG 82-02

85033RCAP ASSY, REAR WASHER

main85332-20070iYH63..VSP;YH53,63..5H198708-199610

85035RNOZZLE SUB-ASSY, REAR WASHER

main85035-95J00iLH51,61,71,YH5#,6#,73198708-199610

85310RMOTOR ASSY, REAR WASHER

main85310-22080iLH51,61,71,YH5#,6#,73198708-199610

85330RJAR ASSY, REAR WASHER

main85330-95J03iLH51,61,71,YH5#,6#,73198708-199610

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iLH61,71,YH61,73..HRF198708-199610

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-14481iLH51,61,YH5#,6#..SRF198708-199610

NO.1

main85355-20200iLH51,61,YH5#,6#..SRF198708-199610

NO.2

85355RVALVE, REAR WASHER HOSE

main85031-12250iLH51,61,71,YH5#,6#,73198708-199610

85360RBRACKET ASSY, REAR WASHER

main85307-95J00iLH61..ARL;LH61..HRF;LH61..06S,15S;LH61..LHD..03S;LH51,71,YH5#,6#,73198708-199610

85361RHOLDER, REAR WASHER

main85361-95J00iLH61..ARL;LH61..HRF;LH61..06S,15S;LH61..LHD..03S;LH51,71,YH5#,6#,73198708-199610

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-06006iLH61,71,YH61,73..HRF198708-198908

L=2000

main90446-07001iYH53,63..09S,15S198708-199610

L=1800

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90446-06013iLH61,71,YH61,73..HRF198708-198908

L=1000

main90446-07001iYH63..VSP;YH53,63..5H198708-199610

L=1800

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33434iLH51,61,YH5#,6#..SRF198708-199610

L=1800(*H,L=550)

main90446-06013iLH61,71,YH61,73..HRF198708-198908

L=1000

9046400052

main90464-00052

9165140612

main91651-40612

16 parts on this diagram · 2 diagrams in section
