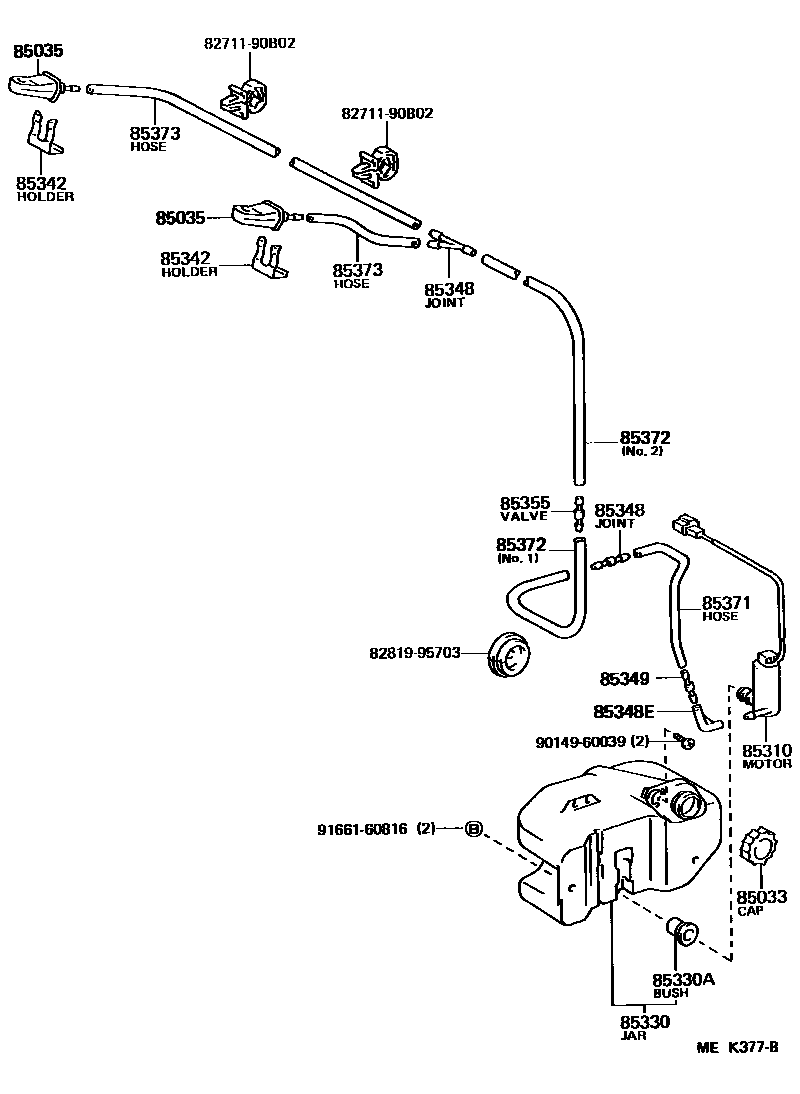

WINDSHIELD WASHER

85033CAP ASSY, WINDSHIELD WASHER

main85332-95J01iYH53,63..09S,15S199111-199203

85035NOZZLE SUB-ASSY, WASHER

main85035-95708×2iLH51,61,71,YH5#,6#,73198708-198806

main85035-95J03×2iLH51,61,71,YH5#,6#,73198806-199111

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-95J00iLH51,61,71,YH5#,6#,73198708-199111

85330JAR ASSY, WINDSHIELD WASHER

main85330-95J00iLH51,61,71,YH5#,6#,73198708-199111

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iLH51,61,71,YH5#,6#,73198708-199111

85342HOLDER, WASHER NOZZLE

main85342-95J01×2iLH51,61,71,YH5#,6#,73198708-199111

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iYH53,63199610

3-WAY

main85349-89122iYH53,63..09S,15S199111-199203

2-WAY

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-14481iLH51,61,71,YH5#,6#,73198708-199111

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iLH51,61,71,YH5#,6#,73198708-199111

85355VALVE, WINDSHIELD WASHER HOSE

main85031-12250iLH51,61,71,YH5#,6#,73198708-199111

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33419iLH51,61,71,YH5#,6#,73198708-199111

L=200

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33384iLH51,61,71,YH5#,6#,73..RHD198708-199111

L=640,NO.2

main90099-33418iYH53,63..09S,15S199111-199203

L=300,NO.1

main90446-06013iLH51,61,YH51,61..LHD198708-198908

L=1000,NO.2

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06013iLH51,61,71,YH5#,6#,73198708-199111

L=1000,LH,RH

8271190B02WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-90B02

8281995703GROMMET, WIRING HARNESS

main82819-95703

9014960039

main90149-60039

9166160816

main91661-60816

17 parts on this diagram · 1 diagram in section
