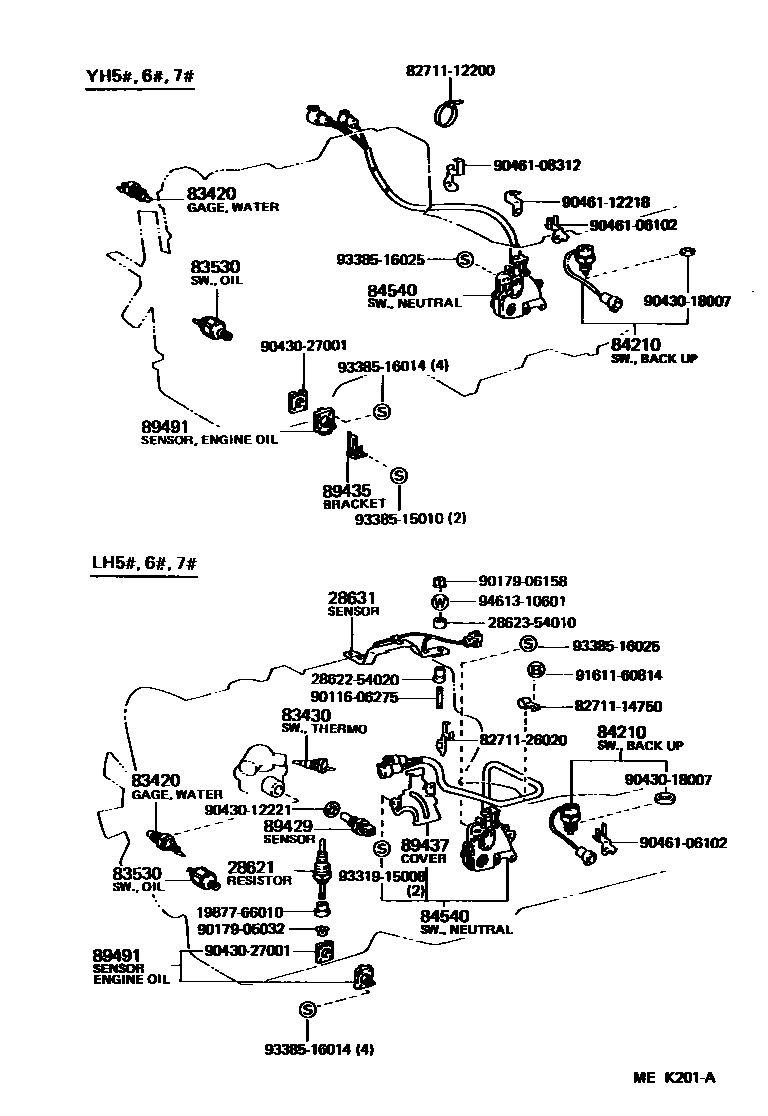

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1

28621RESISTOR, GLOW PLUG

main28621-54031i2L..LH51,61,71..ARL198708-198908

28631SENSOR, GLOW PLUG CURRENT

main28631-54080i2L..LH51,61,71..ARL198708-198908

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iLH51,61,71,YH5#,6#,73198708-199610

83430SWITCH ASSY, WATER LEVEL SENDER

main83430-96440iLH51,61,71..COM198708-198908

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iYH53,63..09S,15S198708-199803

main83530-28030iYH63199803

main83530-30060iLH51,61,71198708-198908

84210SWITCH ASSY, BACK-UP LAMP

main84210-60021iYH53,63198708-199206

84540SWITCH ASSY, NEUTRAL START

main84540-22180iYH53,61,63..ATM198708-199202

main84540-22181iYH53..4HC199202-199203

main84540-26020iLH51,61..4HC198708-198908

89429SENSOR, OIL TEMPERATURE

main89422-30020iLH51,61,71198708-198908

89435BRACKET, CONNECTOR COVER

main89435-26070iYH53..5H..GL198708-199610

89437COVER, SENSOR

main89437-26010iLH51,61..4HC198708-198908

89491SENSOR, ENGINE OIL LEVEL

main89491-26010iLH51,61,71..ARL198708-198908

main89491-26020iYH53..5H..GL;YH63..4HC..ARL;YH53..4FC,4H,4HC,5F;YH63,73..5H..(ARL,GEN)198708-199610

1987766010

main19877-66010

2862254020INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-54020

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271114750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14750

8271126020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-26020

9011606275

main90116-06275

9017905032

main90179-05032

9017906158

main90179-06158

9043012221

main90430-12221

9043018007

main90430-18007

9043027001

main90430-27001

9046106102

main90461-06102

9046108312

main90461-08312

9046112218

main90461-12218

9161160814

main91611-60814

9331915008

main93319-15008

9338515010

main93385-15010

9338516014

main93385-16014

9338516025

main93385-16025

9461310601

main94613-10601

32 parts on this diagram · 5 diagrams in section
