METER

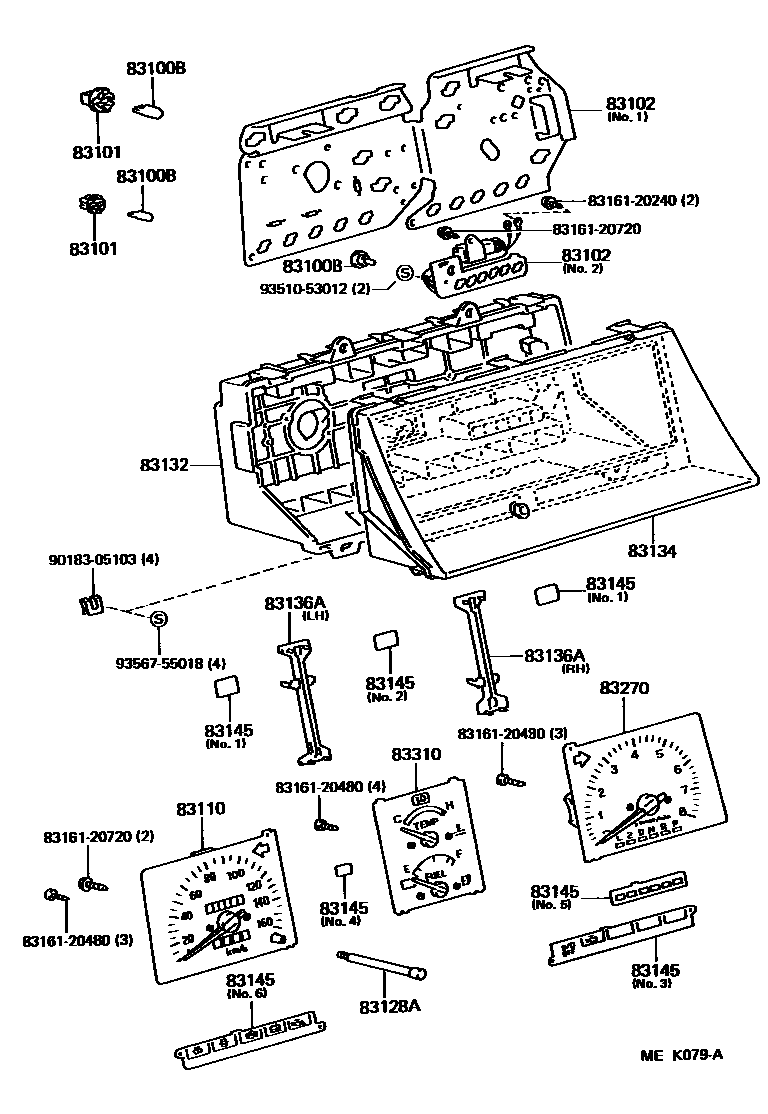

Parts diagram
83100BBULB, COMBINATION METER, NO.1
main83109-24030×3i198708-198808
12V3.4W W(GREEN CAP),SOCKET:83101-20070
main84999-30020×6i198708-199203
12V 1.4W
main90981-11018×9i198708-198808
12V 1.2W W/O SOCKET,SOCKET:83101-14040
main99132-12034×2i198708-198808
12V 3.4W,SOCKET:83101-20040
83101SOCKET SUB-ASSY, COMBINATION METER BULB
main83101-14040×15i198708-198808
BULB:90981-11018
main83101-20040×8i199203-199610
BULB:99132-12034
main83101-20070×3i198708-198808
BULB:83109-24030
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
main83247-95J27i198708-198808
NO.2
main83247-95J30i198708-198908
NO.1
main83247-95J39i198708-198908
main83247-95J45i198708-198908
main83247-95J46i199111-199206
main83247-95J47i198708-198908
main83247-95J48i198708-198908
main83247-95J49i198708-198908
MIDDLE EAST SPEC
main83247-95N08i198808-199203
NO.1
main83247-95N09i198808-199203
NO.2
83110SPEEDOMETER ASSY
main83110-95J52i198708-198908
KM/MPH
main83110-95J55i198708-199111
main83110-95J59i198708-198908
KM/MPH
main83110-95J62i198708-198908
main83110-95J64i198708-198908
main83110-95J65i198708-198908
main83110-95J66i198708-198908
main83110-95J67i198708-198908
MIDDLE EAST SPEC
main83110-95J69i198808-199610
main83110-95J70i198808-199203
83128AKNOB, METER
main83128-89130i199206
83132CASE, COMBINATION METER
main83132-95J07i199203-199610
main83132-95J09i198708-199111
83134COVER, COMBINATION METER, NO.1
main83134-95J14i199203-199610
main83134-95J15i198708-198908
main83134-95J16i198708-199111
main83134-95J17i198708-198908
83136ACOVER, COMBINATION METER
main83136-95J02i198708-199203
LH
main83136-95J03i199203-199610
RH
main83136-95J04i198708-199111
83145LENS, METER, NO.1
main83145-1A160i199203-199610
NO.2
main83145-89320×2i198808-199203
NO.1
main83145-95J36i198708-198908
NO.6
main83145-95J37i198708-198908
NO.6
main83145-95J41i199203-199610
NO.3
main83145-95J42i198708-198908
NO.3
main83145-95J54i198708-198908
NO.3
main83145-95J55i198708-198908
NO.3
main83145-95J56i198708-199111
NO.3
main83145-95J57i198708-198908
NO.3
main83145-95J58i198708-198908
MIDDLE EAST SPEC,NO.3
main83145-95J63i198708-198908
NO.7
main83145-95J65i198708-198808
NO.5
main83145-95J66×2i199111-199206
NO.1
main83145-95J67i199111-199206
NO.2
main83145-95J68i199206
NO.4
main83145-95J69i198708-198808
NO.5
main83145-95J78i199203-199610
NO.4
main83145-95N02i198808-198908
NO.5
main83145-95N03i198808-199203
NO.5
main83145-95N05i198808-199610
NO.6
main83145-95N06i198808-199203
NO.6
83270TACHOMETER ASSY, ENGINE
main83242-95J02i198808-199610
main83242-95J04i198708-198908
main83242-95J05i198708-198808
main83242-95N00i198808-199203
main83242-95N01i198808-198908
83310GAGE ASSY, FUEL RECEIVER
main83243-95J20i198708-198908
main83243-95J21i199203-199610
main83243-95J22i198708-198808
main83243-95J23i198708-198908
main83243-95J26i198708-199111
main83243-95J28i198708-198808
main83243-95J29i198708-198908
MIDDLE EAST SPEC
main83243-95N01i198808-198908
main83243-95N03i198808-198908
8316120240CASE, COMBINATION METER MIRROR, NO.1
main83161-20240
8316120480CASE, COMBINATION METER MIRROR, NO.1
main83161-20480
8316120720CASE, COMBINATION METER MIRROR, NO.1
main83161-20720
9018305103
main90183-05103
9351053012
main93510-53012
9356755018
main93567-55018

17 parts on this diagram · 4 diagrams in section
