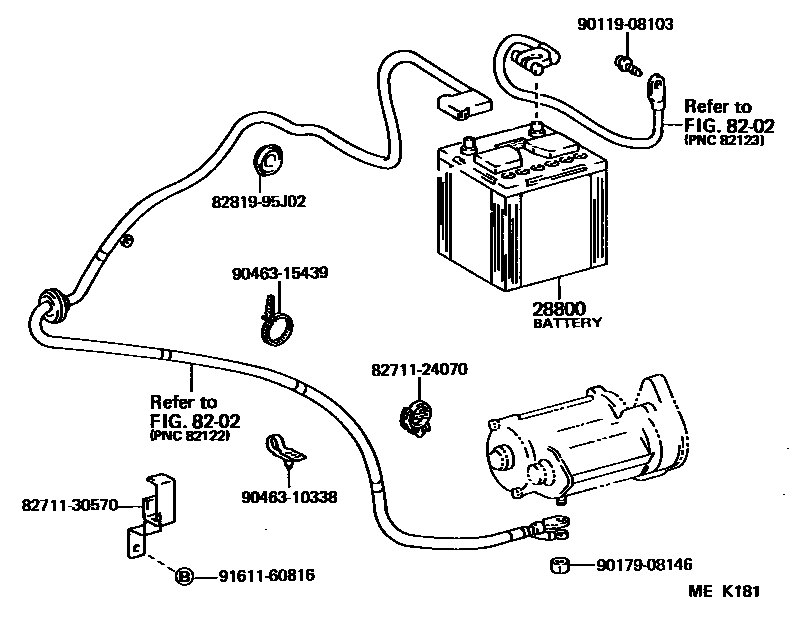

BATTERY & BATTERY CABLE

28800BATTERY

main28800-26090i3Y..YH51,61..COM198708-198908

46B24L

main28800-42020i2L..LH51,61,71..5H198708-199001

75D31L

main28800-54030i2L..LH51,61..4HC198708-198908

95D31L

main28800-54050i2L..LH51,61..GEN198708-198908

130E41L

main28800-64030i4Y..YH53,63..MTM199203-199603

55D20L

main28800-64040i2Y..YH60; 4Y..YH53,63..MTM199203-199206

50D20L

main28800-70070i4Y..YH63200103

50D20L,55D20L

main28800-72010i2Y,3Y..YH51,60,61..V198708-199206

34B19L(S),34B19L(S)

8202WIRING & CLAMP

→ Go to FIG 82-02

8271124070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24070

8271130570WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30570

8281995J02GROMMET, WIRING HARNESS

main82819-95J02

9011908103

main90119-08103

9017908146

main90179-08146

9046310338

main90463-10338

9046315439

main90463-15439

9161160816

main91611-60816

10 parts on this diagram · 1 diagram in section
