Toyota 711220 — HEADLAMP

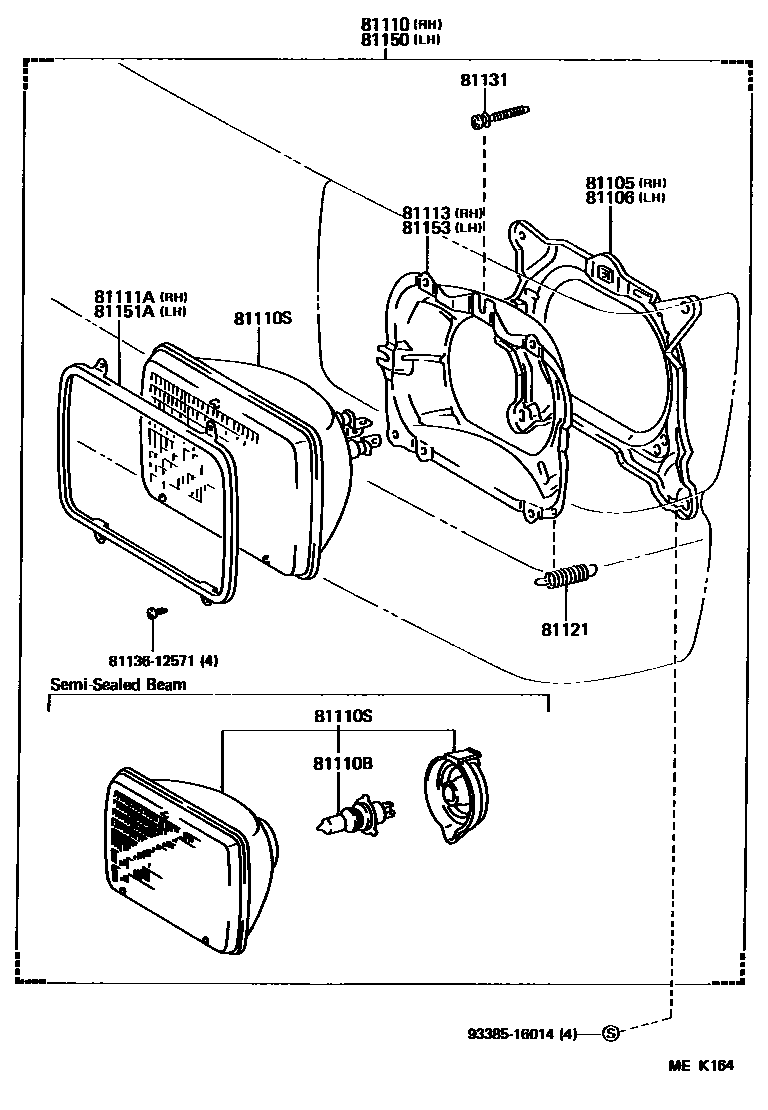

Parts diagram

81105HOUSING SUB-ASSY, HEADLAMP, RH

81106HOUSING SUB-ASSY, HEADLAMP, LH

81110BBULB(FOR HEADLAMP, NO.1)

81110SSEALED BEAM UNIT, NO.1

81111ARING, SEALED BEAM RETAINING, NO.1 RH

81113RING, SEALED BEAM MOUNTING, NO.1 RH

81121SPRING, HEADLAMP TENSION

81131SCREW, HEADLAMP ADJUSTING

81150HEADLAMP ASSY, LH

81151ARING, SEALED BEAM RETAINING, NO.1 LH

81153RING, SEALED BEAM MOUNTING, NO.1 LH

8113612571PROTECTOR, HEADLAMP, NO.1 RH

9338516014

14 parts on this diagram · 3 diagrams in section

HEADLAMP for Toyota 711220

This section contains 33 genuine Toyota parts for the HEADLAMP system of the Toyota 711220. Key components include: HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2).
