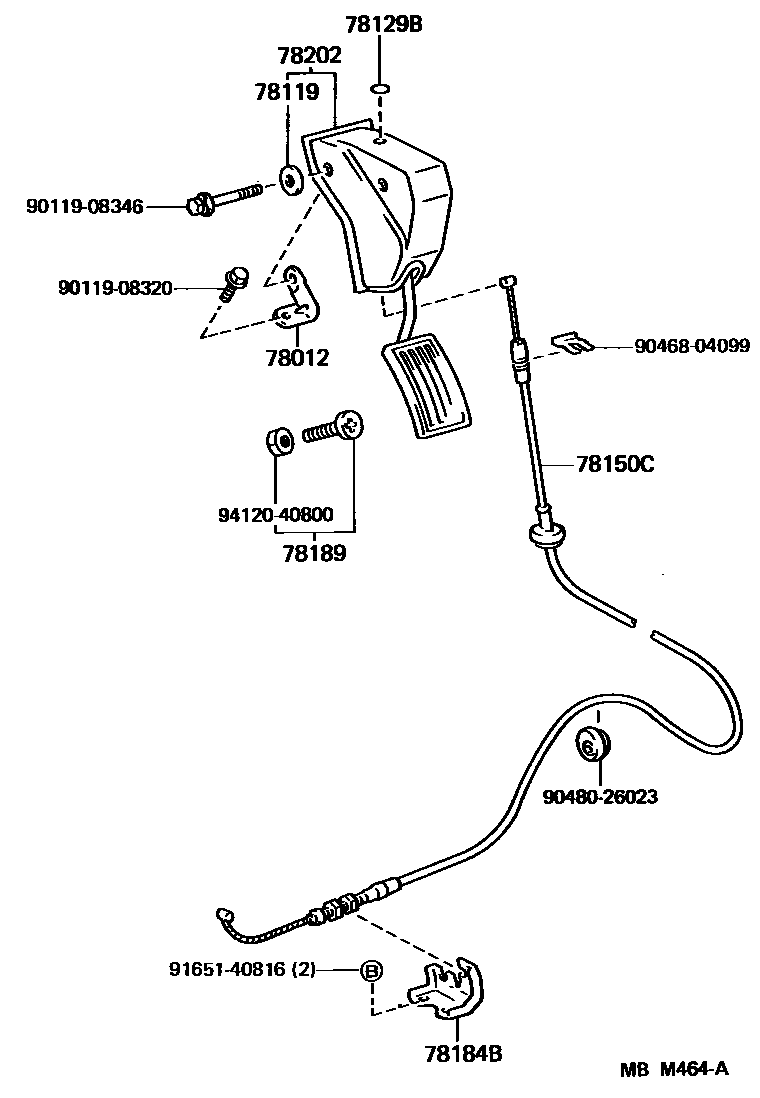

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78012BRACKET SUB-ASSY, ACCELERATOR PEDAL ROD

main78012-95J00iLH51,61,71,YH5#,6#,73..RHD198708-199610

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-95J00×2iLH51,61,71,YH5#,6#,73..RHD198708-199610

78129BSEAL, ACCELERATOR PEDAL ARM

main78129-95J00iYH5#,6#,73..RHD198808-199610

78150CWIRE ASSY, ACCELERATOR FLEXIBLE

main78150-95J00iYH5#,6#,73..RHD198708-199610

main78150-95J01iLH51,61,71..RHD198708-198908

main78150-95J02iYH51,61..LHD198708-198908

main78150-95J03iLH51,61..LHD198708-198908

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-95J00iYH63..V;YH5#,60,61,73198708-199610

78189BOLT, ACCELERATOR PEDAL STOPPER

main78208-95J00iLH51,61,71,YH5#,6#,73198708-199610

78202LINK SUB-ASSY, ACCELERATOR

main78202-95J00iLH51,61,71,YH5#,6#,73..RHD198708-199610

main78202-95J01iLH51,61,YH51,61..LHD198708-198908

9011908320

main90119-08320

9011908346

main90119-08346

9046804099

main90468-04099

9048026023

main90480-26023

9165140816

main91651-40816

9412040800

main94120-40800

13 parts on this diagram · 4 diagrams in section
