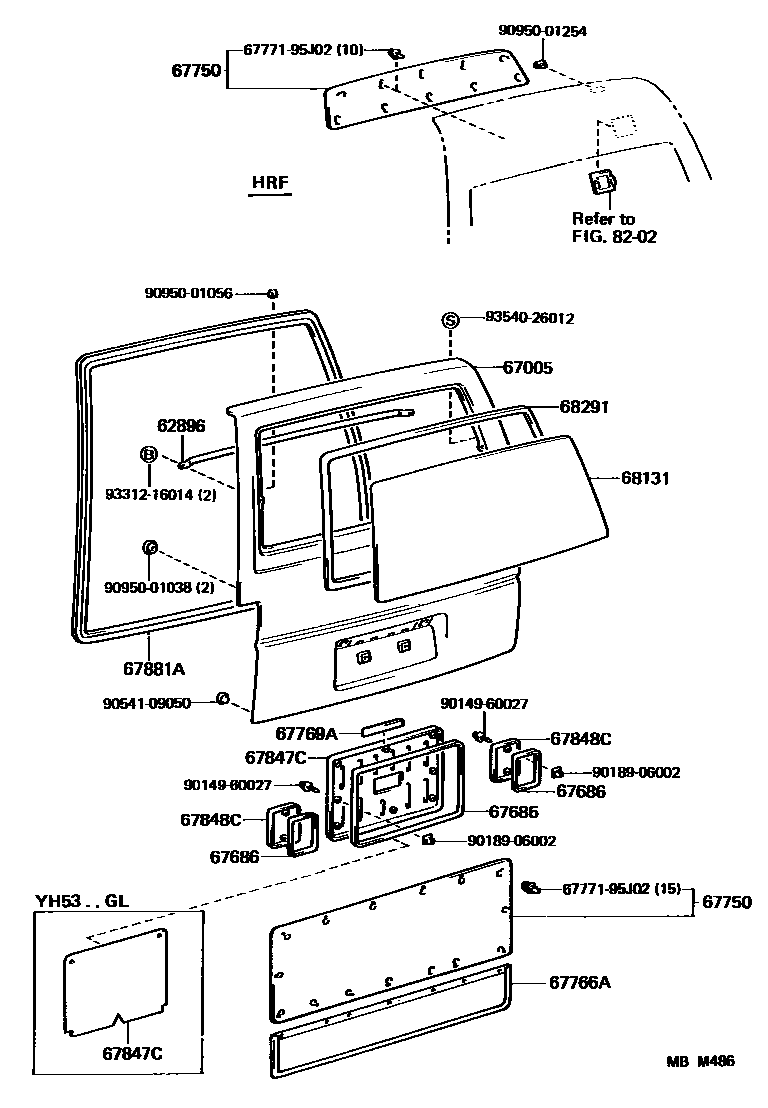

BACK DOOR PANEL & GLASS

62896TUBE, BACK DOOR WINDOW GUARD

main62896-95J00iLH51,61,YH51,6#..V..(GEN,SA)198708-199203

67005PANEL SUB-ASSY, BACK DOOR

main67005-95J55iLH71,YH73198708-198908

main67005-95J56iLH71,YH73198708-198908

W(REAR WINDOW DEFOGGER)

main67005-95J57iLH71,YH73198708-198908

W(REAR WINDOW WIPER)

main67005-95J75iLH61,YH61..HRF198708-198908

main67005-95J76iLH61..HRF198708-198908

W(WINDOW GUARD)

main67005-95N07iLH51,61,YH53,63..STD..ARL198708-198908

main67005-95N08iLH51,61,YH53,63..STD..ARL198708-198908

W(REAR WINDOW DEFOGGER)

main67005-95N09iLH51,61,YH53,63..STD..ARL198708-198908

W(REAR WINDOW WIPER)

main67005-95N10iLH51,YH60,63..VSG..03S; YH51..LHD..06S;LH51,61,YH61..06S; YH51..RHD..06S; YH63..GEN198708-199206

W(WINDOW GUARD & REAR WINDOW WIPER); W(WINDOW GUARD)

main67005-95N11iYH63199206

main67005-95N12iYH63..03S..SA;LH51,61,YH51,60,61..SRF..(GEN,SA); YH63..GEN198708-199206

W(REAR WINDOW WIPER)

main67005-95N13iLH51,61,YH51,61..06S; LH51,61,YH51,61..SRF..VSP..GEN; LH51,YH60,63..VSG..03S198708-199206

W(WINDOW GUARD)

main67005-95N25iLH61,YH61..HRF198708-198908

W(REAR WINDOW WIPER)

main67005-95N26iLH61..HRF198708-198908

W(WINDOW GUARD & REAR WINDOW WIPER)

main67005-95N33iYH53..05S198708-198908

main67005-95N34iYH51..RHD..06S198708-198908

CKD SPEC & W(WINDOW GUARD)

67685PACKING, BACK DOOR SERVICE HOLE, NO.1

main67685-95J00×2iYH63199206

67686PACKING, BACK DOOR SERVICE HOLE, NO.2

main67526-95A00×2iYH63199206

67750BOARD ASSY, BACK DOOR TRIM

main67750-90C00-06iLH71,YH73198708-198908

BROWN,TRIM4#

main67750-95J01iYH53199206-199708

main67750-95J01-36iYH53..SA198808-199206

BROWN,TRIM4#

main67750-95J04-04iYH53..05S198708-198908

BLUE,TRIM8#

67766ACARPET, BACK DOOR

main67766-95J00-04iYH53..05S198708-198908

BLUE,TRIM8#

67769APLATE, BACK DOOR SERVICE HOLE

main67769-95J01iLH51,61,YH51,61,63..GEN198708-199206

DUST PROTECTING

67847CCOVER, BACK DOOR SERVICE HOLE, NO.1

main67847-95J01iYH63199206

main67847-95J02iYH53..VSG198808-199610

main67847-95J04iLH51,61,YH51,61,63..GEN198708-198908

W(BACK DOOR INSIDE HANDLE)

67848CCOVER, BACK DOOR SERVICE HOLE, NO.2

main67848-95J00×2iYH63199206

67881AWEATHERSTRIP, BACK DOOR

main67881-90C00iLH61,71,YH61,73..HRF198708-198908

main67881-95J08iYH53,63199610

68131GLASS, BACK DOOR

main68131-95J00iYH63199206

*TEM,T=4.0

main68131-95J01iYH53199610-199712

*EHT,T=4.0

main68131-95J02iLH51,61,YH51,61..GEN; LH71,YH63,73..(06S,15S)..ARL198708-198908

*TT,T=4.0

main68131-95J03iYH53199610-199712

*EHTT,T=4.0

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-95J00iYH53,63..STD199206

main68291-95J01iYH53..GL198908-199206

8202WIRING & CLAMP

→ Go to FIG 82-02

6777195J02WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-95J02

9014960027

main90149-60027

9018906002

main90189-06002

9054109050

main90541-09050

9095001038

main90950-01038

9095001056

main90950-01056

9095001254

main90950-01254

9331216014

main93312-16014

9354026012

main93540-26012

22 parts on this diagram · 1 diagram in section
