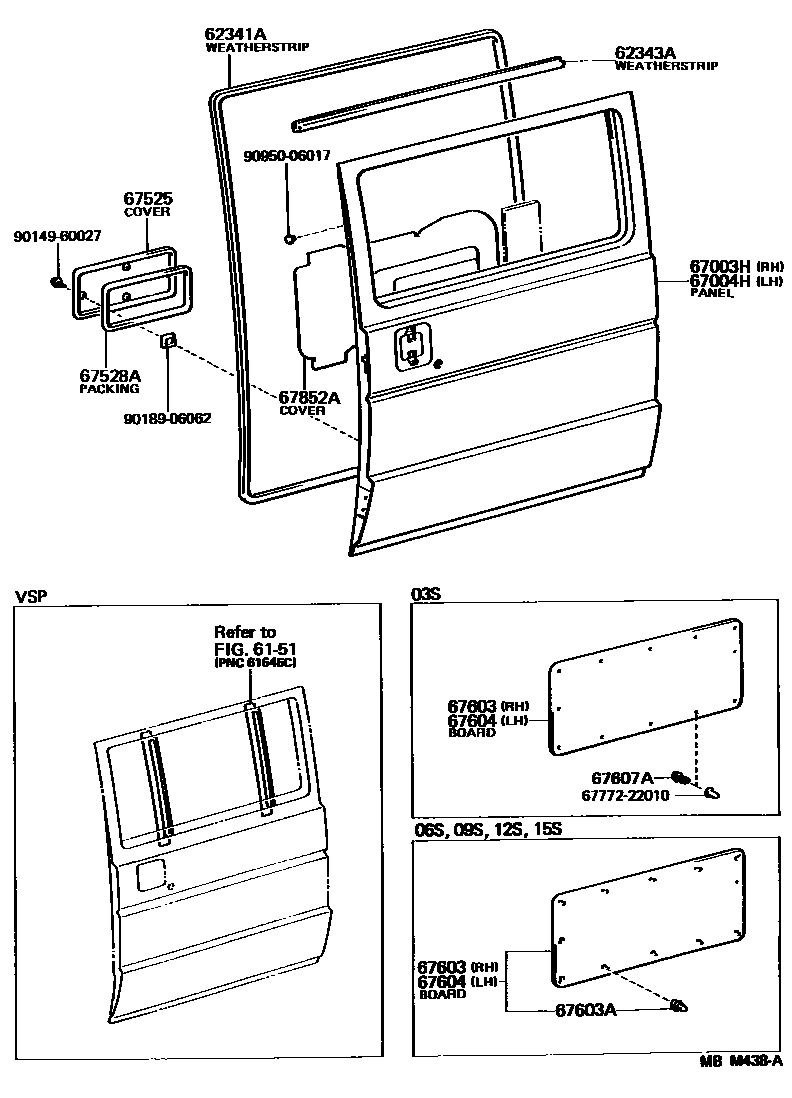

REAR DOOR PANEL & GLASS

6151SIDE MEMBER

→ Go to FIG 61-51

62341AWEATHERSTRIP, SLIDE DOOR, NO.1

main62341-95J02iYH53,63199610

62343AWEATHERSTRIP, SLIDE DOOR, NO.2

main62343-95J00iYH53,63199610

67003HDOOR SUB-ASSY, SLIDE, RH

main67003-95J07iYH51,61..LHD..(06S,12S,15S); YH51,61..LHD..V5D..03S198708-198808

W(SLIDE WINDOW GLASS ELECTROMAGNETIC LOCK)

main67003-95J15iLH51..VSG..03S;LH51,61,YH51,61..LHD..(06S,12S,15S); YH51,61..V5D..03S198708-198908

W(WINDOW GLASS)

main67003-95J16iYH51,63..V5D..03S;LH51,61,YH61..LHD..VSP198708-198908

main67003-95J19iYH51,61..LHD..03S198708-198908

W(ELECTROMAGNETIC LOCK)

main67003-95J22iYH51,61..LHD..(06S,12S,15S); YH51..LHD..03S; YH61..V5D..03S198808-198908

W(ELECTROMAGNETIC LOCK); W(WINDOW GLASS & ELECTROMAGNETIC LOCK)

67004HDOOR SUB-ASSY, SLIDE, LH

main67004-95J13iLH51,YH61..06S;YH51..V5D..06S;LH61,YH51..RHD..06S; YH51,61..LHD..V5D..03S; YH51..V4D..03S198708-198808

W(ELECTROMAGNETIC LOCK); W(SLIDE WINDOW GLASS ELECTROMAGNETIC LOCK)

main67004-95J26iYH53..05S198708-198808

main67004-95J28iYH51,61..LHD..V5D..03S; YH51..RHD..V5D;LH61,YH51,61..V5D..06S;LH51,61,YH51,6#..RHD..(06S,12S,15S)..GEN198708-198709

main67004-95J29iYH5#,63..VSP;YH61..V5D..03S;LH51,61,YH61..RHD..03S198709-199206

main67004-95J30iLH71,YH63,73..(06S,15S)..ARL198708-198908

main67004-95J32iYH51,61..RHD..V4D..03S;YH51,61..LHD..V5D..03S198709-199206

W(ELECTROMAGNETIC LOCK)

main67004-95J36iLH51,YH61..06S;LH61,YH51..RHD..06S; YH51,61..LHD..V5D..03S; YH51..V4D..03S; YH51..V5D..06S198808-199206

W(ELECTROMAGNETIC LOCK); W(WINDOW GLASS & ELECTROMAGNETIC LOCK)

main67004-95J37iYH53..GL..SA198808-198908

W(ELECTROMAGNETIC LOCK)

main67004-95J38iYH53..SA198808-199206

main67004-95J39iYH53..05S198808-198908

67525COVER, SLIDE DOOR PANEL, LOWER

main67525-95J00×2iYH63199206

main67525-95J01×2iYH53199610

67528APACKING, SLIDE DOOR LOWER COVER

main67528-95J00×2iYH61..RHD;LH61,YH51..COM;YH61..LHD..15S;YH61..LHD..V4D;LH61,YH51,63..V4D;LH51,71,YH53,73..STD198708-198808

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67613-95J01iYH51,63..V5D..03S;LH51,61,YH61..LHD..03S198708-198908

main67630-95J00-06iLH51,61,YH51,61..LHD..(06S,12S,15S)198708-198908

BROWN,TRIM4#

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-95J02×22iYH53..05S198708-198908

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67614-95J01iYH61..V5D..03S;YH5#,60,63..03S;LH51,61,YH61..RHD..03S198708-199206

main67640-95J00iYH63..15S199206

main67640-95J00-06iLH61,YH51,61..V5D..06S;LH51,61,71,YH51,61,63,73..RHD..(06S,12S,15S)198708-199206

BROWN,TRIM4#

main67640-95J02iYH53..STD199206

main67640-95J02-36iYH53..STD..SA198808-199206

BROWN,TRIM4#

main67640-95J10-04iYH53..05S198708-198908

BLUE,TRIM8#

67607ACLIP(FOR SLIDE DOOR TRIM BOARD)

main90467-09019-20×11iYH51..RHD..V4D;LH51,61,YH53,6#..V4D..03S198708-199206

BROWN,TRIM4#

main90467-09019-B0×11iYH63..03S199206

GRAY,TRIM1#

67852ACOVER, SLIDE DOOR SERVICE HOLE, NO.2

main67852-95J00×2iLH61,YH51,61,63..V5D198708-198908

main67852-95J02iYH51,61..LHD..V4D;YH51,61..LHD..COM..4H; YH51,61..LHD..V5D198708-198908

GULF SPEC

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010

9014960027

main90149-60027

9018906062

main90189-06062

9095006017

main90950-06017

16 parts on this diagram · 1 diagram in section
