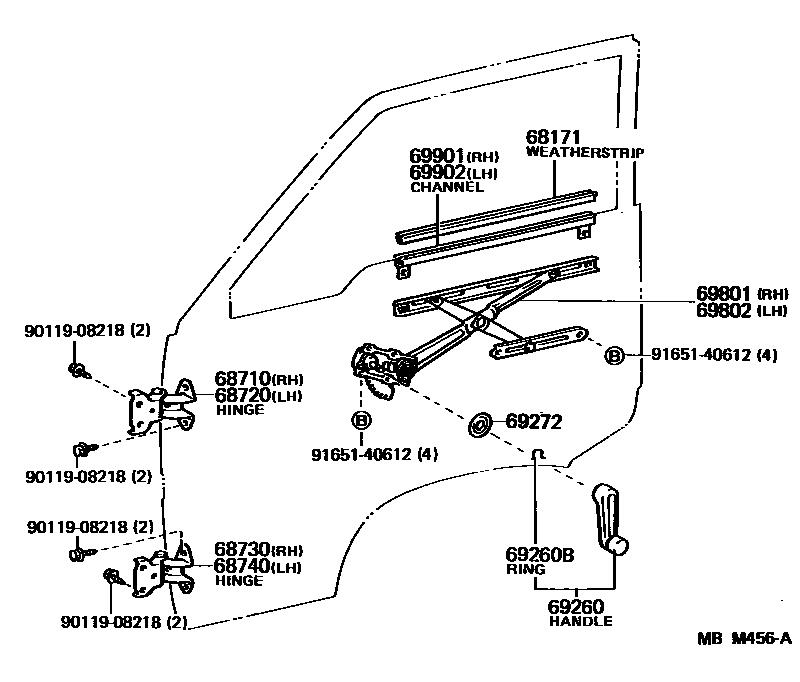

FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68171-22020×2iLH51,61,71,YH5#,6#,73..STD198708-198808

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-95J00iLH51,61,71,YH5#,6#,73198708-199206

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-95J00iLH51,61,71,YH5#,6#,73198708-199206

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-95J00iLH51,61,71,YH5#,6#,73198708-199206

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-95J00iLH51,61,71,YH5#,6#,73198708-199206

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-14020-06×2iLH51,61,71,YH5#,6#,73..4H,4HC,5H198708-199206

BROWN,TRIM4#

main69260-14020-44×2iYH53..05S198708-199610

BLUE,TRIM8#

main69260-14020-B0×2iYH53,63199206

GRAY,TRIM1#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iLH51,61,71,YH5#,6#,73198708-199610

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010-08×2iLH51,61,71,YH5#,6#,73..4H,4HC,5H; YH53..05S198708-198910

NATURAL WHITE,TRIM4#; NATURAL WHITE,TRIM8#

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-95J00iLH51,61,71,YH5#,6#,73198708-199610

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-95J00iLH51,61,71,YH5#,6#,73198708-199610

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-87002iLH51,61,71,YH5#,6#,73..STD198708-198808

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-87002iLH51,61,71,YH5#,6#,73..STD198708-198808

9011908218

main90119-08218

9165140612

main91651-40612

14 parts on this diagram · 1 diagram in section
