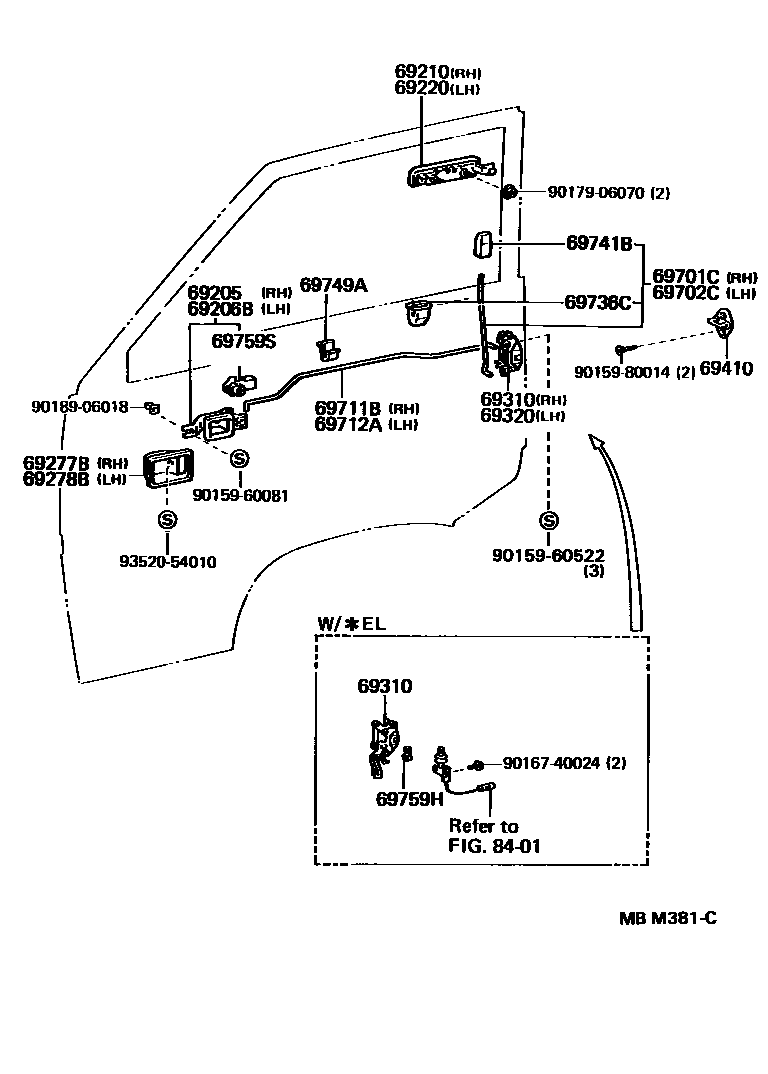

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-32010-14iYH53..05S198708-199610

BLUE,TRIM8#

main69205-32010-16iLH51,61,71,YH5#,6#,73..4H,4HC,5H198708-199206

BROWN,TRIM4#

main69205-32010-B0iYH53,63199206

GRAY,TRIM1#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-32010-14iYH53..05S198708-199610

BLUE,TRIM8#

main69206-32010-16iLH51,61,71,YH5#,6#,73..4H,4HC,5H198708-199206

BROWN,TRIM4#

main69206-32010-B0iYH53,63199206

GRAY,TRIM1#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-95J01iYH53,63199610

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-95J01iLH51,61,71,YH5#,6#,73198708-199206

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-32020iYH53,6#198908-199206

main69277-32020-34iYH53..05S198708-199610

BLUE,TRIM8#

main69277-32020-36iLH51,61,71,YH5#,6#,73..4H,4HC,5H198708-198908

BROWN,TRIM4#

main69277-32020-B0iYH53,63199206

GRAY,TRIM1#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69277-32020iYH53,6#198908-199206

main69277-32020-34iYH53..05S198708-199610

BLUE,TRIM8#

main69277-32020-36iLH51,61,71,YH5#,6#,73..4H,4HC,5H198708-198908

BROWN,TRIM4#

main69277-32020-B0iYH53,63199206

GRAY,TRIM1#

69310LOCK ASSY, FRONT DOOR, RH

main69310-95J02iYH53..GL..SA198808-199206

W(ELECTROMAGNETIC LOCK)

main69310-95J03iLH51,61,71,YH5#,6#,73..4H,4HC,5H198708-199206

main69310-95J05iYH53,63199206-199610

69320LOCK ASSY, FRONT DOOR, LH

main69320-95J01iYH53,63199206-199610

main69320-95J02iLH51,61,71,YH5#,6#,73..4H,4HC,5H198708-199206

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-14050×2iLH51,61,71,YH5#,6#,73198708-199206

main69410-20070×2iYH53,63199206-199610

69701CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH

main69701-95J02iYH53199610

main69701-95J02-01iYH53..STD199206

BLACK,TRIM1#

main69701-95J02-04iYH53..05S198708-198908

BLUE,TRIM8#

main69701-95J02-06iYH53..SA198808-199206

BROWN,TRIM4#

main69701-95J02-B0iYH53..GL199206-199610

GRAY,TRIM1#

main69701-95J03iLH51,61,71,YH5#,6#,73..STD198708-198709

main69701-95J03-01iLH51,61,71,YH5#,6#,73..03S,06S,12S,15S198709-198908

BLACK,TRIM4#

69702CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH

main69702-95J02iYH53199610

main69702-95J02-01iYH53..STD199206

BLACK,TRIM1#

main69702-95J02-04iYH53..05S198708-198908

BLUE,TRIM8#

main69702-95J02-06iYH53..SA198808-199206

BROWN,TRIM4#

main69702-95J02-B0iYH53..GL199206-199610

GRAY,TRIM1#

main69702-95J03iYH63199206

main69702-95J03-01iYH63..15S199206

BLACK,TRIM1#

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-95J00iLH51,61,71,YH5#,6#,73198708-199206

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-95J00iYH53,63199610

69736CGUIDE, FRONT DOOR LOCKING LINK

main69736-12030×2iYH53..VSG198708-199206

main69751-89101×2iYH63..15S199206

main69751-89101-01×2iLH51,61,71,YH5#,6#,73..03S,06S,12S,15S198708-198908

BLACK,TRIM4#

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-90K00-01×2iYH53,63..STD199206

BLACK,TRIM1#

main69741-90K00-14×2iYH53..05S198708-198908

BLUE,TRIM8#

main69741-90K00-26×2iYH53..GL..SA198808-198908

BROWN,TRIM4#

main69741-90K00-B3×2iYH53..GL199206-199610

GRAY,TRIM1#

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-30020×4iLH51,61,71,YH5#,6#,73198708-199206

69759HSNAP, DOOR LOCK CONTROL LINK, NO.2

main69759-24060iYH53..GL198708-199206

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-14050iLH51,61,71,YH5#,6#,73198708-199206

RH

main69759-24070iLH51,61,71,YH5#,6#,73198708-199206

LH

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015960081

main90159-60081

9015960522

main90159-60522

9015980014

main90159-80014

9016740024

main90167-40024

9017906070

main90179-06070

9018906018

main90189-06018

9352054010

main93520-54010

26 parts on this diagram · 1 diagram in section
