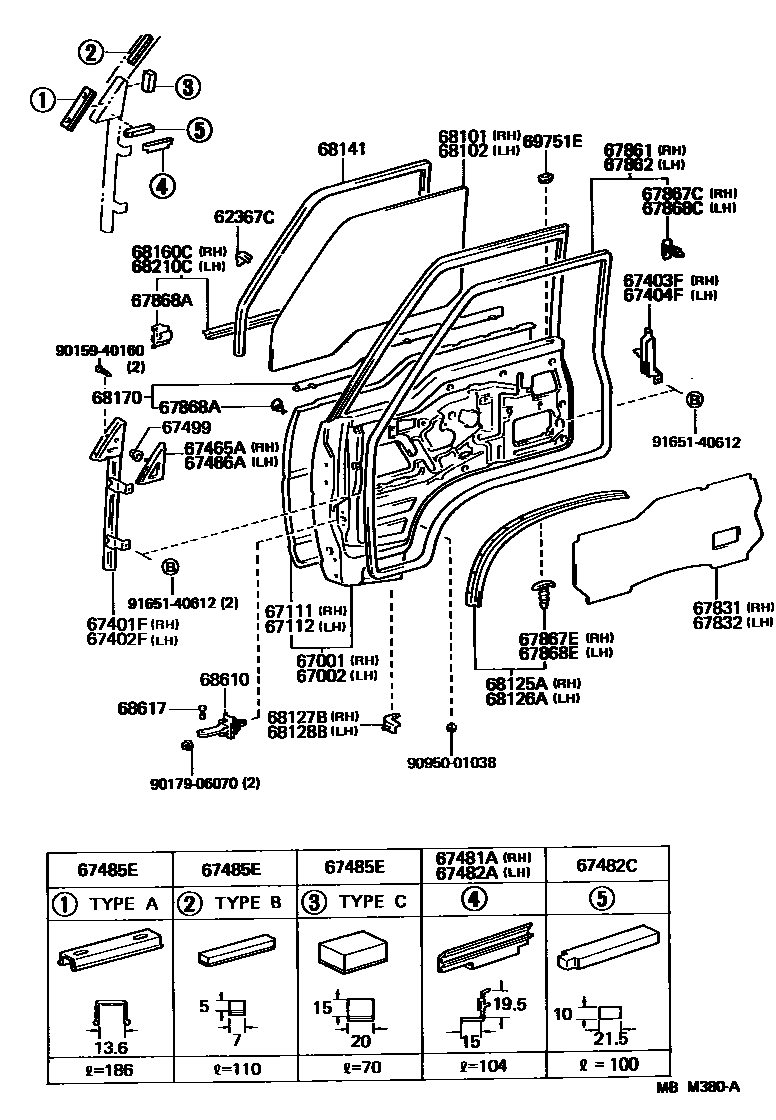

FRONT DOOR PANEL & GLASS

0001 1 0002 1

62367CCLIP, DOOR WINDOW GLASS

main62367-10010×2iYH53,63199206-199610

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-95J19iLH51,61,YH51,61,63..GEN198708-198908

main67001-95J20iYH53..05S198708-198908

main67001-95J23iYH6#198908-199102

main67001-95J24iYH53..SA198808-199102

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-95J15iLH51,61,YH51,61,63..GEN198708-198908

main67002-95J19iYH60,63..SA198808-199102

main67002-95J21iLH51,61,71,YH53,63,73..STD..ARL; LH51,61,YH51,61,63..RHD..GEN198708-198908

W(FRONT DOOR VENTILATOR WINDOW)

main67002-95J22iYH53..05S198708-198908

main67002-95J27iYH53199206

67111PANEL, FRONT DOOR, OUTER RH

main67111-95J00iLH51,61,71,YH5#,6#,73198708-199102

67112PANEL, FRONT DOOR, OUTER LH

main67112-95J00iLH51,61,71,YH5#,6#,73..03S,05S,06S,12S,15S198708-199102

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-95J00iYH53..05S198808-199206

main67401-95J01iLH51,61,YH51,61,63..GEN198708-198908

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-95J01iYH53,63199610

main67402-95J02iLH51,61,YH51,61,63..GEN198708-198908

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-95J02iLH51,61,71,YH5#,6#,73..STD198708-198808

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-95J02iLH51,61,71,YH5#,6#,73198808-199206

67465AINNER GARNISH, UPPER BRACKET, RH

main67465-95J00iYH53..05S198808-199206

67466AINNER GARNISH, UPPER BRACKET, LH

main67466-95J00iYH53..05S198808-199206

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-95J00iLH51,61,YH51,6#..GEN198708-198808

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67482-95J01iYH53,63199610

67482CPACKING, FRONT DOOR FRONT LOWER FRAME

main67482-95J00×2iYH53,63199206-199610

67485ESEAL, FRONT DOOR BRACKET

main67485-95J00×2iYH53..05S;LH51,61,YH51,61,63..GEN198808-199206

TYPE A

main67485-95J01×2iYH53..05S;LH51,61,YH51,61,63..GEN198808-199206

TYPE B

main67485-95J02×2iYH53,63199206-199610

TYPE C

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-30010×2iYH53,63199206-199610

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-95J00iLH51,61,71,YH5#,6#,73198708-199610

main67831-95J01iYH51,61..LHD..4H198708-198908

GULF SPEC

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-95J00iLH51,61,71,YH5#,6#,73198708-199610

main67832-95J01iYH51,61..LHD..4H198708-198908

GULF SPEC

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-95J00iYH53,63199206-199610

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-95J00iLH51,61,71,YH5#,6#,73198708-199206

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67868-95401×27iYH53,63199610

67867ERETAINER, FRONT DOOR LOWER PROTECTOR, RH

main67868-30040×11iYH53,63199206-199610

67868ACLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)

main68212-26010×12iYH53,6#198912-199206

OUTER

main68212-95J00×12iLH51,61,71,YH5#,6#,73198708-198912

OUTER

main90467-08071×14iLH51,61,71,YH53,60,63,73..(4H,4HC,5H)..(ARL,SA); LH51,61,YH51,61,63..GEN; YH53..05S;LH51,61,YH51,61,63..GEN198708-198912

INNER; W(FRONT DOOR VENTILATOR WINDOW),INNER

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-95401×27iLH51,61,71,YH5#,6#,73198708-199206

67868ERETAINER, FRONT DOOR LOWER PROTECTOR, LH

main67868-30040×11iLH51,61,71,YH5#,6#,73198708-199206

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-95J00iYH53,63199206-199610

*TEM,T=4.0

main68111-95J01iYH53199610

*TT,T=4.0

main68111-95J03iLH51,61,YH51,61..GEN; YH63;LH51,61,71,YH53,73..STD..ARL198708-198808

*TEM,T=4.0; *TEM,T=4.0,W(FRONT DOOR VENTILATOR WINDOW)

main68111-95J04iLH51,61,YH51,61..GEN; LH71,YH63,73..(06S,15S)..ARL198708-199206

*TT,T=4.0; *TT,T=4.0,W(FRONT DOOR VENTILATOR WINDOW)

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-95J00iYH53..05S;LH51,61,YH51,61,63..GEN198808-199206

*TEM,T=4.0

main68112-95J01iYH53199206-199610

*TT,T=4.0

main68112-95J03iLH51,61,71,YH53,60,63,73..(4H,4HC,5H)..(ARL,SA); LH51,61,YH51,61,63..GEN198808-199206

*TEM,T=4.0; *TEM,T=4.0,W(FRONT DOOR VENTILATOR WINDOW)

main68112-95J04iLH51,61,YH51,61..GEN; LH71,YH63,73..(06S,15S)..ARL198708-199206

*TT,T=4.0; *TT,T=4.0,W(FRONT DOOR VENTILATOR WINDOW)

68125APROTECTOR, FRONT DOOR, LOWER RH

main68125-95J00iYH53,63199206-199610

68126APROTECTOR, FRONT DOOR, LOWER LH

main68126-95J00iLH51,61,71,YH5#,6#,73198708-199206

68127BSHUTTER, FRONT DOOR, LOWER RH

main68127-95J01iLH51,61,71,YH5#,6#,73198708-199206

68128BSHUTTER, FRONT DOOR, LOWER LH

main68128-95J01iYH53,63199610

68141RUN, FRONT DOOR GLASS

main68141-26010iYH53,6#199102-199206

main68141-95J02×2iLH51,61,YH51,6#..GEN198708-198808

main68141-95J03×2iYH53,6#198908-199102

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-95J02iYH53..05S;LH51,61,YH51,6#..GEN198708-198709

main68160-95J03iLH51,61,71,YH53,63,73..STD..ARL; LH51,61,YH51,6#..GEN198708-198709

W(FRONT DOOR VENTILATOR WINDOW)

main68160-95J04iYH53,63199610

main68160-95J05iLH51,61,71,YH53,60,63,73..(4H,4HC,5H)..(ARL,SA); LH51,61,YH51,61,63..GEN198709-198908

W(FRONT DOOR VENTILATOR WINDOW)

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68171-95J00iYH53,63199206-199610

RH

main68171-95J01iLH51,61,71,YH53,60,63,73..(4H,4HC,5H)..(ARL,SA); LH51,61,YH51,61,63..GEN198708-198912

RH; W(FRONT DOOR VENTILATOR WINDOW),RH

main68172-95J00iYH53..05S;LH51,61,YH51,61,63..GEN198708-198912

LH

main68172-95J01iLH51,61,71,YH53,60,63,73..(4H,4HC,5H)..(ARL,SA); LH51,61,YH51,61,63..GEN198708-198912

LH; W(FRONT DOOR VENTILATOR WINDOW),LH

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-95J02iYH53..05S;LH51,61,YH51,6#..GEN198708-198709

main68210-95J03iLH51,61,71,YH53,63,73..STD..ARL; LH51,61,YH51,6#..GEN198708-198709

W(FRONT DOOR VENTILATOR WINDOW)

main68210-95J04iYH53..05S;LH51,61,YH51,61,63..GEN198709-199206

main68210-95J05iYH53,6#198908-199206

68610CHECK ASSY, FRONT DOOR

main68610-95J00×2iYH53,63199610

68617PIN, FRONT DOOR CHECK

main68617-90A01×2iYH53,63199610

69751EHOLDER, FRONT DOOR LOCK CONTROL KNOB

main69751-12010-04×2iYH53..05S198808-199111

BLUE,TRIM8#

main69751-12010-06×2iYH53..GL..SA198808-199206

BROWN,TRIM4#

main69751-12010-B0×2iYH53..GL199206-199610

GRAY,TRIM1#

9015940160

main90159-40160

9017906070

main90179-06070

9095001038

main90950-01038

9165140612

main91651-40612

42 parts on this diagram · 2 diagrams in section
