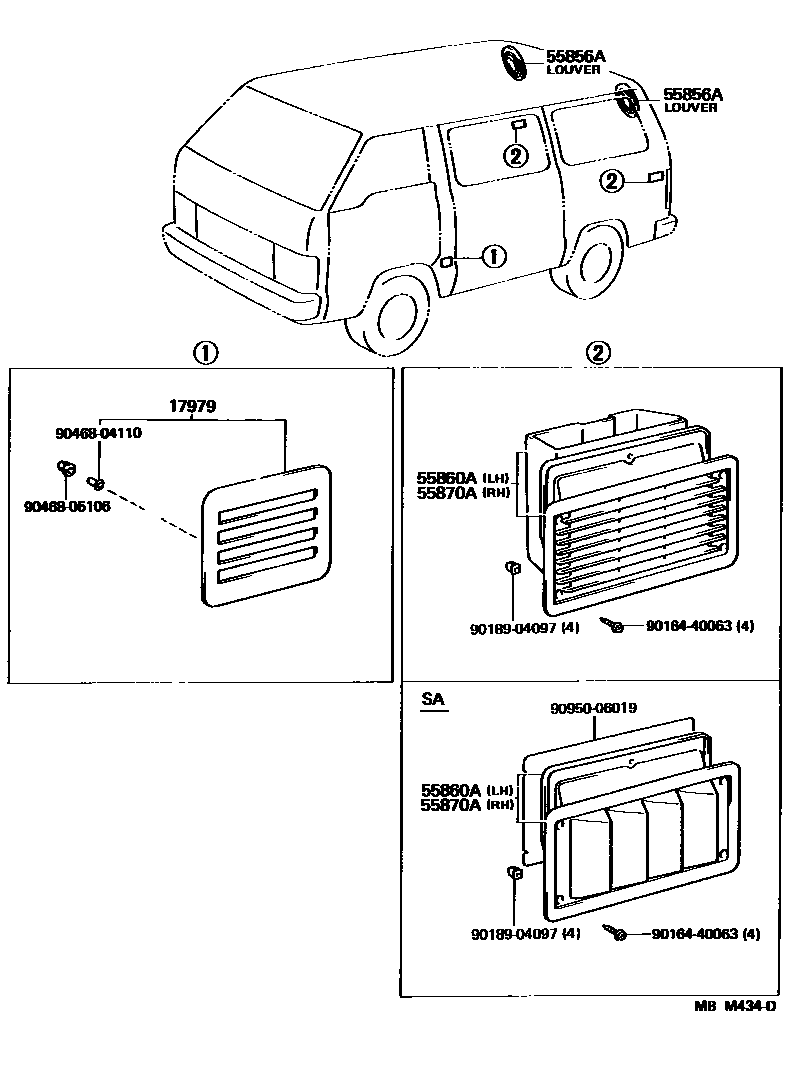

REAR VENTILATOR & ROOF VENTILATOR

17979ORNAMENT, COOL AIR

main17979-95J01i2L,2Y,3Y,4Y..LH51,61,71,YH5#,6#,73198708-199203

55856ALOUVER, REAR VENTILATOR

main55856-95J00-03×2iYH63..GEN,SA;YH63..03S..ARL;LH51,61,YH5#,60,61..SRF..(03S,06S,12S,15S)198708-199203

GRAY,TRIM4#

55860ADUCT ASSY, REAR VENTILATOR ORNAMENT, LH

main55860-95J00iLH51,61,71,YH5#,61,63,73..ARL,GEN198708-198908

main55860-95J01iYH53,60,63..SA198808-199203

55870ADUCT ASSY, REAR VENTILATOR ORNAMENT, RH

main55870-95J00iLH51,61,71,YH5#,61,63,73..ARL,GEN198708-198908

main62930-95J00iYH53,60,63..SA198808-199203

9016440063

main90164-40063

9018904097

main90189-04097

9046804110

main90468-04110

9046805106

main90468-05106

9095006019

main90950-06019

9 parts on this diagram · 1 diagram in section
