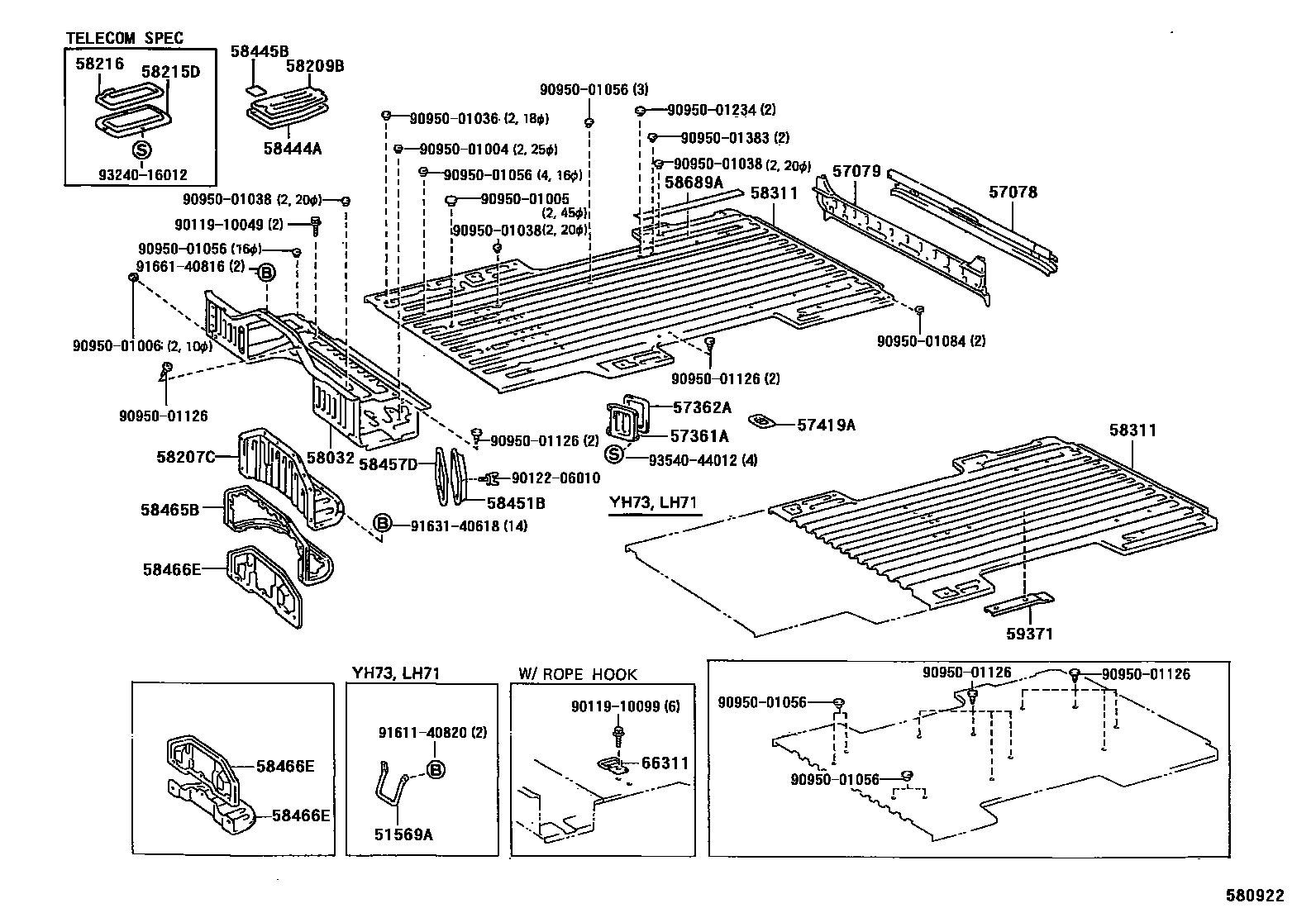

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

51569AGUARD, PROPELLER SHAFT

main51569-90C00iLH71,YH73198708-198908

57078MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER

main57069-95J04iYH53,63199610

main57078-95J03iLH51,61,71,YH53,63,73..ARL198708-198908

57079MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

main57079-95J00iYH53,63199610

57361ACOVER, NO.2 OUTERIGGER HOLE

main57361-95J00iLH61,YH51,6#..V5D; YH61..RHD;LH51,YH53,73;LH61,YH51..COM;YH61..LHD..15S;YH61..LHD..V4D;LH61,YH51,63..V4D198708-198710

57362APACKING, NO.2 OUTRIGGER HOLE COVER

main57362-95J00iLH61,YH51,6#..V5D; YH61..RHD;LH51,YH53,73;LH61,YH51..COM;YH61..LHD..15S;YH61..LHD..V4D;LH61,YH51,63..V4D198708-198710

57419APLATE, REAR SEAT LOCK

main57419-95J01iLH51,61,YH51,61..06S198708-198908

58032PANEL SUB-ASSY, HEADER

main58032-95J53iLH51,61..RHD..V4D198708-198908

***

main58032-95J57iYH51..RHD..06S; YH53,63..VSG..(ARL,GEN)198708-198908

***; ***,CKD SPEC

main58032-95J60iYH63..V4D..03S..ARL;YH5#,61..RHD..V4D..STD..(ARL,GEN)198708-198908

main58032-95J62iYH51..RHD..12S198708-198908

***

main58032-95J63iLH51..RHD..12S198708-198908

***

main58032-95J64iYH61..RHD..15S198708-198908

***

main58032-95J65iLH61..RHD..15S198708-198908

***

main58032-95J73iYH51,61..LHD..V4D198708-198908

main58032-95J82iYH51..LHD..12S198708-198908

***

main58032-95J83iLH51..LHD..12S198708-198908

***

main58032-95J84iYH61..LHD..15S198708-198908

***

main58032-95J85iLH61..LHD..15S198708-198908

***

main58032-95J86iYH51,61,63..V5D198708-198908

***

main58032-95J87iLH61..V5D198708-198908

***

main58032-95N22iYH73198708-198908

***

main58032-95N23iLH71198708-198908

***

main58032-95N35iYH53,63..V4D..03S..ARL198708-198908

***,TELECOM

main58032-95N36iLH51,61..ARL198708-198908

***,TELECOM

main58032-95N48iLH51,61..LHD..03S198708-198908

***

58207CCOVER SUB-ASSY, TRANSMISSION SERVICE HOLE

main58207-95J05iYH5#,6#,73198708-199203

main58207-95J07iLH51,61,71198708-198908

58209BCOVER SUB-ASSY, BATTERY SERVICE HOLE

main58209-95J00iYH53,63199610

58215DCOVER, CAMBER SERVICE HOLE

main58215-95700iLH51,61,YH53,63..V4D..03S..ARL198708-198908

TELECOM

58216PACKING, CAMBER SERVICE HOLE COVER

main58216-95J00iLH51,61,YH53,63..V4D..03S..ARL198708-198908

TELECOM

58311PAN, REAR FLOOR

main58312-95J09iLH71,YH73198708-198908

main58315-95J02iLH51,YH5#..RHD..V4D..STD..(ARL,GEN)198708-198908

main58315-95J38iYH51..RHD..06S; YH53..05S198708-198908

CKD SPEC

main58315-95J39iLH51,YH51..RHD..12S198708-198908

main58315-95J40iLH51,YH51..RHD..12S198708-198908

W(FLOOR SET TYPE REAR HEATER)

main58315-95J41iLH51,YH51..LHD..V4D198708-198908

main58315-95J44iLH51,YH51..LHD..12S198708-198908

main58315-95J45iLH51,YH51..LHD..12S198708-198908

W(FLOOR SET TYPE REAR HEATER)

main58315-95J47iYH51..V5D198708-198908

main58315-95J53iLH61,YH61..RHD..V4D;YH63..V4D..03S..ARL198708-198908

main58315-95J56iYH63..06S198708-198908

main58315-95J61iLH61,YH61,63..RHD..15S198708-198908

main58315-95J62iLH61,YH61..RHD..15S198708-198908

W(FLOOR SET TYPE REAR HEATER)

main58315-95J65iLH61,YH61..LHD..15S198708-198908

main58315-95J66iLH61,YH61..LHD..15S198708-198908

W(FLOOR SET TYPE REAR HEATER)

main58315-95J67iLH61,YH61..LHD..V4D198708-198908

main58315-95J68iLH61,YH61,63..V5D198708-198908

58444APACKING, BATTERY SERVICE HOLE COVER

main58444-95J00iLH51,61,71,YH5#,6#,73198708-199203

58445BPAD, BATTERY SERVICE HOLE COVER

main58445-95J00iLH51,61,71,YH5#,6#,73198708-199203

58451BCOVER, AIR CLEANER SERVICE HOLE

main58451-95J00iYH53,63199610

58457DPACKING, AIR CLEANER SERVICE HOLE COVER

main58457-95J00iLH61,YH51,61..LHD..V5D;LH51,61,71,YH5#,6#,73..RHD198708-199203

58465BPACKING, TRANSMISSION SERVICE HOLE COVER

main58465-95J02iYH53,63199610

58466ESILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1

main58327-95J00iLH51,61,71,YH5#,6#,73198708-199203

UPR

main58327-95J06iYH63..VSP;YH53,63..09S,15S199203-199610

LWR

58689AWEIGHT, REAR FLOOR

main58688-95J01iLH51,61,71,YH51,61,63,73..RHD..COM198708

L=458

main58688-95J02iLH51,61,YH51,61..LHD..COM198708-198908

L=458

main58689-95J00×2iLH51,YH51..12S; LH71,YH73198708-198908

L=185; L=300; L=800

main58689-95J01×2iLH51,YH51..12S198708-198908

L=400

59371RETAINER, REAR SEAT, NO.3

main59371-90C00iLH71,YH73198708-198908

66311HOOK, ROPE

main66311-95J00×4iLH51,61,YH51,61..06S; YH51..RHD..06S; YH63..ARL,GEN;LH51,61,YH5#,61..03S,05S198708-198908

CKD SPEC

9011910049

main90119-10049

9011910099

main90119-10099

9012206010

main90122-06010

9095001004

main90950-01004

9095001005

main90950-01005

9095001006

main90950-01006

9095001036

main90950-01036

9095001038

main90950-01038

9095001056

main90950-01056

9095001084

main90950-01084

9095001126

main90950-01126

9095001234

main90950-01234

9095001383

main90950-01383

9161140820

main91611-40820

9163140618

main91631-40618

9166140816

main91661-40816

9324016012

main93240-16012

9354044012

main93540-44012

39 parts on this diagram · 2 diagrams in section
