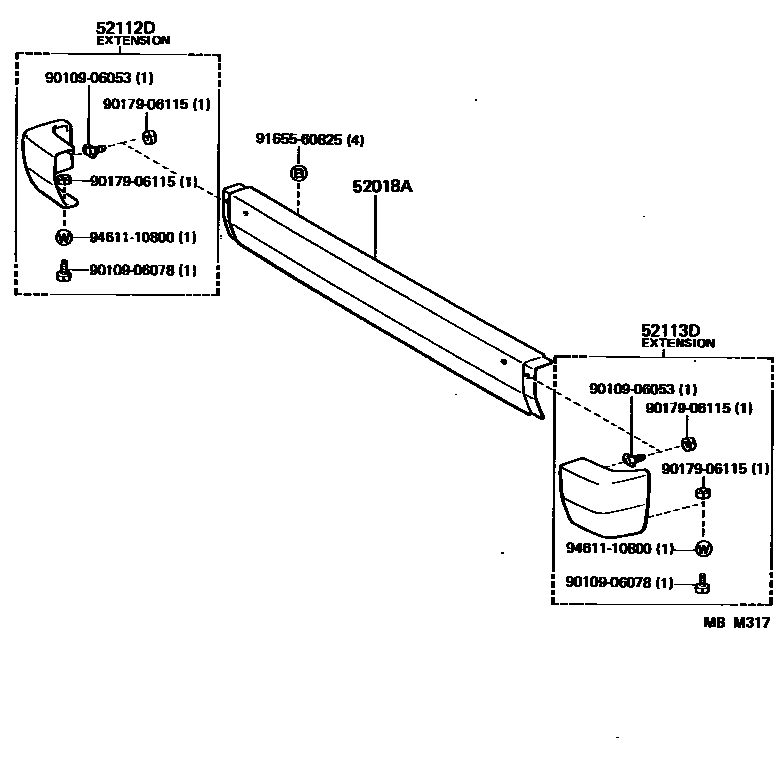

FRONT BUMPER & BUMPER STAY

0001 1 0002 1(8708- )HIGH GRADE PACKAGE

52018ABAR SUB-ASSY, FRONT BUMPER GUARD

main52018-95J12iLH51,61,71,YH5#,61,63,73..STD..(ARL,GEN)198708-198908

52112DEXTENSION, FRONT BUMPER, RH

main52112-29035iYH63..ARL,GEN;YH63..VSG..SA;LH51,61,71,YH5#,60,61,73..STD198708

52113DEXTENSION, FRONT BUMPER, LH

main52113-29035iYH63..ARL,GEN;YH63..VSG..SA;LH51,61,71,YH5#,60,61,73..STD198708

9010906053

main90109-06053

9010906078

main90109-06078

9017906115

main90179-06115

9165560825

main91655-60825

9461110800

main94611-10800

8 parts on this diagram · 2 diagrams in section
