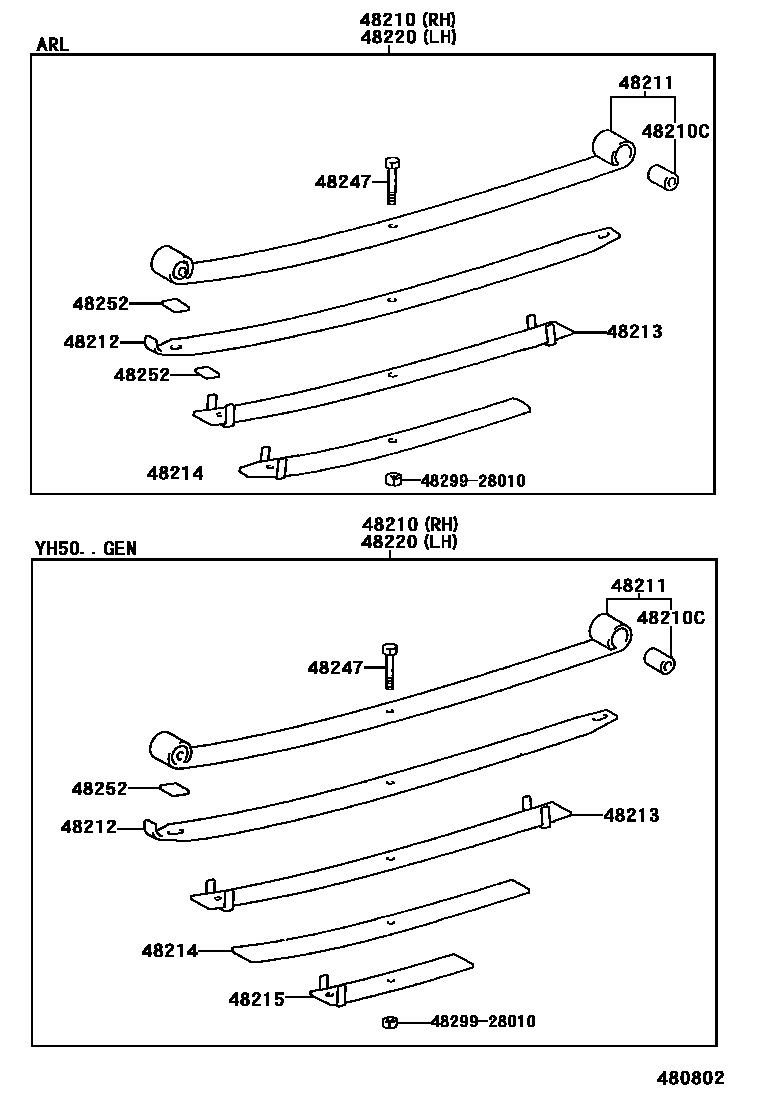

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1

48210SPRING ASSY, REAR RH

main48210-26250iLH51,YH53..ARL198708-198908

main48210-26260iLH61,YH63..ARL198708-198908

main48210-26270iLH71,YH73198708-198908

main48210-26320iYH53..SA198808

main48210-26330iLH51,YH51..GEN198708-198908

main48210-26340iLH61,YH6#..GEN,SA198708-199206

48210CBUSH(FOR REAR SPRING LEAF)

main90389-14007iYH53,63198708-199206

48211LEAF, REAR SPRING, NO.1

main48201-26250iLH51,61,71,YH53,63,73..ARL198708-198908

main48201-26310iYH53..SA198808-199206

main48201-26330iLH51,61,YH51,6#..GEN,SA198708-199206

48212LEAF, REAR SPRING, NO.2

main48202-26320iYH53..SA198808-199206

main48212-26250iLH51,61,71,YH53,63,73..ARL198708-198908

main48212-26330iLH51,61,YH51,6#..GEN,SA198708-199206

48213LEAF, REAR SPRING, NO.3

main48202-26250iLH51,71,YH53,73..ARL198708-198908

main48202-26260iLH61,YH63..ARL198708-198908

main48202-26330iLH51,YH51..GEN198708-198908

main48202-26340iLH61,YH6#..GEN,SA198708-199206

48214LEAF, REAR SPRING, NO.4

main48203-26250iLH51,61,YH53,63..ARL198708-198908

main48203-26270iLH71,YH73198708-198908

main48214-26330iLH51,61,YH51,6#..GEN,SA198708-199206

48215LEAF, REAR SPRING, NO.5

main48203-26330iLH51,61,YH51,6#..GEN,SA198708-199206

48220SPRING ASSY, REAR LH

main48210-26250iLH51,YH53..ARL198708-198908

main48210-26260iLH61,YH63..ARL198708-198908

main48210-26270iLH71,YH73198708-198908

main48210-26320iYH53..SA198808

main48210-26330iLH51,YH51..GEN198708-198908

main48210-26340iLH61,YH6#..GEN,SA198708-199206

48247BOLT, REAR SPRING, CENTER

main48247-26260iLH51,61,71,YH53,63,73..ARL198708-198908

main48247-26310iYH53..SA198808-199206

main48247-26330iLH51,61,YH51,6#..GEN,SA198708-199206

48252SILENCER, REAR SPRING

main48252-26070iLH51,61,71,YH53,63,73..ARL198708-199206

4829928010BALANCER, REAR SPRING, NO.3

main48299-28010

11 parts on this diagram · 5 diagrams in section
