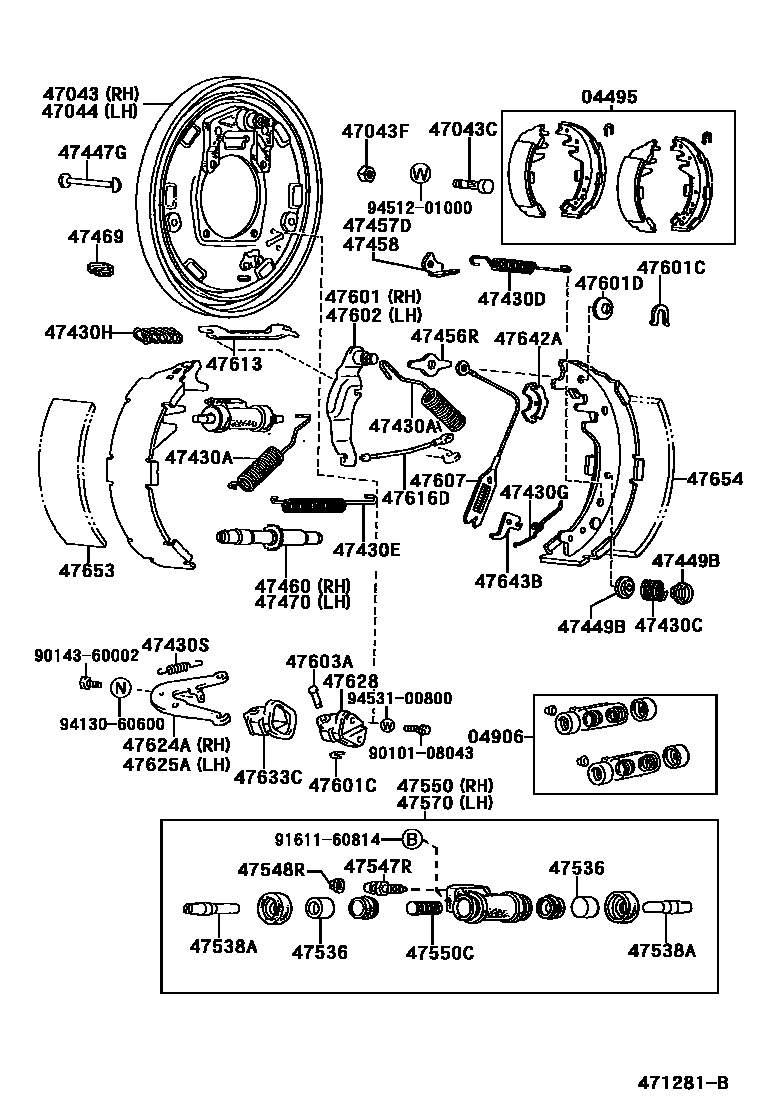

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04495SHOE KIT, REAR BRAKE

main04495-26040iYH53..GL..SA198808-198809

main04495-26041iYH53..GL..SA198809-199608

main04495-26121iYH53..GL199608-199610

main04495-35051iLH51,61,YH5#,6#..STD..(GEN,SA)198708-198809

main04495-35052iYH53,6#..STD199010-199608

main04495-35180iYH63..15S199608

main04495-40020iLH51,61,71,YH53,63,73..ARL198708-198809

main04495-40021iLH51,61,71,YH53,63,73..ARL198809-198908

04906CUP KIT, REAR WHEEL CYLINDER

main04906-30060iYH53..5H..GL;YH53..4FC,4H,4HC,5F;LH51,61,71,YH63,73..ARL198708-199610

main04906-31010iYH63..15S199206

main04906-35080iYH63..GEN198708-199010

W(FR DISC BRAKE)

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-26040iYH53..5H..GL;YH53..4FC,4H,4HC,5F;LH51,61,71,YH63,73..ARL198708-199610

main47043-26050iYH53..STD199206-199712

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90114-10002×4iLH51,61,YH5#,6#..STD..(GEN,SA)198708-199206

*10-1.25PX37-18.5

main90114-10016×4iLH51,61,YH5#,6#..STD..(GEN,SA)198708-199206

*10-1.25PX41-18

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10041×8iYH53,63199206

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-26040iYH53..5H..GL;YH53..4FC,4H,4HC,5F;LH51,61,71,YH63,73..ARL198708-199610

main47044-26050iYH53,6#..STD199010-199206

47430ASPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26331×4iYH63..03S199206

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20604×4iYH63..15S199206

main90501-20756×4iYH53..5H..GL;YH53..4FC,4H,4HC,5F;LH51,61,71,YH63,73..ARL198708-199610

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-12412×2iYH63..03S199206

main90506-20005×2iYH53..5H..GL;YH53..4FC,4H,4HC,5F;LH51,61,71,YH63,73..ARL198708-199610

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-12015×2iYH53..5H..GL;YH53..4FC,4H,4HC,5F;LH51,61,71,YH63,73..ARL198708-199610

main90506-16343×2iYH53,6#..STD199010-199206

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90508-20261iYH63..03S199206

RH SIDE

main90508-20262iLH51,61,YH5#,6#..STD..(GEN,SA)198708-199010

LH SIDE

47430HSPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)

main90504-18012×2iLH51,61,YH5#,6#..STD..(GEN,SA)198708-199010

47430SSPRING, TENSION(FOR PARKING BRAKE SHOE STRUT)

main90506-18004×2iYH53,63199610

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010×4iLH51,61,YH5#,6#..STD..(GEN,SA)198708-199010

main47447-30020×4iYH53..5H..GL;YH53..4FC,4H,4HC,5F;LH51,61,71,YH63,73..ARL198708-199610

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iYH53,63199610

47456RPLATE, REAR BRAKE SHOE GUIDE

main47456-20010×2iYH63..15S199206

47457DBRACKET, REAR BRAKE SHOE RETURN SPRING, RH

main47457-35020iYH53,6#..STD199010-199206

47458BRACKET, REAR BRAKE SHOE RETURN SPRING

main47458-35020iLH51,61,YH5#,6#..STD..(GEN,SA)198708-199010

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47405-30020iYH53,6#..STD199010-199206

47469WASHER, ADJUSTING CAM(FOR REAR BRAKE)

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47406-30020iYH63..03S199206

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-26010×4iLH51,61,YH51,61..GEN198708-199010

main47051-30030×4iYH53..5H..GL;YH53..4FC,4H,4HC,5F;LH51,61,71,YH63,73..ARL198708-199610

main47531-26070×4iYH63..GEN198708-199010

W(FRONT DISC BRAKE)

main47531-26080×4iYH63..15S198708-199206

47538ALINK, WHEEL CYLINDER CONNECTING

main47538-35010×4iLH51,61,YH5#,6#..STD..(GEN,SA)198708-199010

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20030×2iLH51,61,YH63..ARL198708-199610

main47547-26010×2iLH51,61,YH5#,6#..STD..(GEN,SA)198708-199010

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iLH51,61,YH63..ARL198708-199610

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-26090iYH63..GEN198708-199010

W(FRONT DISC BRAKE)

main47550-26100iYH63..03S199206

main47550-30100iYH53..5H..GL;YH53..4FC,4H,4HC,5F;LH51,61,71,YH63,73..ARL198708-199610

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-20010×2iYH63..GEN198708-199010

W(FRONT DISC BRAKE)

main47509-22010×2iYH63..15S198708-199206

main47509-35020×2iLH51,61,YH63..ARL198708-199610

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-26090iYH63..GEN198708-199010

W(FRONT DISC BRAKE)

main47550-26100iYH63..15S199206

main47550-30100iYH53..5H..GL;YH53..4FC,4H,4HC,5F;LH51,61,71,YH63,73..ARL198708-199610

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-26020iLH51,61,YH5#,6#..STD..(GEN,SA)198708-199010

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×2iLH51,61,71,YH5#,6#,73198708-199010

T=1.2

47601DWASHER, WAVE(FOR REAR BRAKE)

main90206-10059×2iYH53..STD199206-199712

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-26020iYH53..STD199206-199712

47603APIN, W/HOLE(FOR REAR BRAKE)

main90249-08075×2iYH53,63199206-199610

47607CABLE SUB-ASSY, REAR BEAKE AUTOMATIC ADJUST

main47607-30010×2iLH51,61,YH5#,6#..STD..(GEN,SA)198708-199010

47613STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)

main47613-35020iYH63..15S199206

RH

main47614-35020iYH63..15S199206

LH

47616DWIRE, PARKING BRAKE

main47616-26020×2iYH53..5H..GL;YH53..4FC,4H,4HC,5F;LH51,61,71,YH63,73..ARL198708-199610

main47616-26030×2iYH63..03S199206

47624ACRANK, PARKING BRAKE BELL, RH

main47624-26020iYH53..5H..GL;YH53..4FC,4H,4HC,5F;LH51,61,71,YH63,73..ARL198708-199610

main47624-26030iLH51,61,YH5#,6#..STD..(GEN,SA)198708-199010

47625ACRANK, PARKING BRAKE BELL, LH

main47625-26020iYH53..5H..GL;YH53..4FC,4H,4HC,5F;LH51,61,71,YH63,73..ARL198708-199610

main47625-26030iYH53,6#..STD199010-199206

47628BRACKET, REAR BRAKE BELLCRANK

main47628-26010×2iLH51,61,71,YH5#,6#,73198708-199010

47633CBOOT, REAR BRAKE BELLCRANK, RH

main47633-26010×2iYH53,63199206-199610

47642AGUIDE, REAR BRAKE AUTOMATIC ADJUST CABLE

main47642-20010×2iLH51,61,YH5#,6#..STD..(GEN,SA)198708-199010

47643BLEVER, REAR BRAKE AUTOMATIC ADJUST

main47643-20011×2iLH51,61,YH5#,6#..STD..(GEN,SA)198708-199010

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47655-30050×2iLH51,61,71,YH53,63,73..ARL198708-198908

main47655-30070×2iYH53..GL..SA198808-199610

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47655-30050×2iLH51,61,71,YH53,63,73..ARL198708-198908

main47655-30070×2iYH53..GL..SA198808-199610

9010108043

main90101-08043

9014360002

main90143-60002

9161160814

main91611-60814

9413060600

main94130-60600

9451201000

main94512-01000

9453100800

main94531-00800

50 parts on this diagram · 2 diagrams in section
