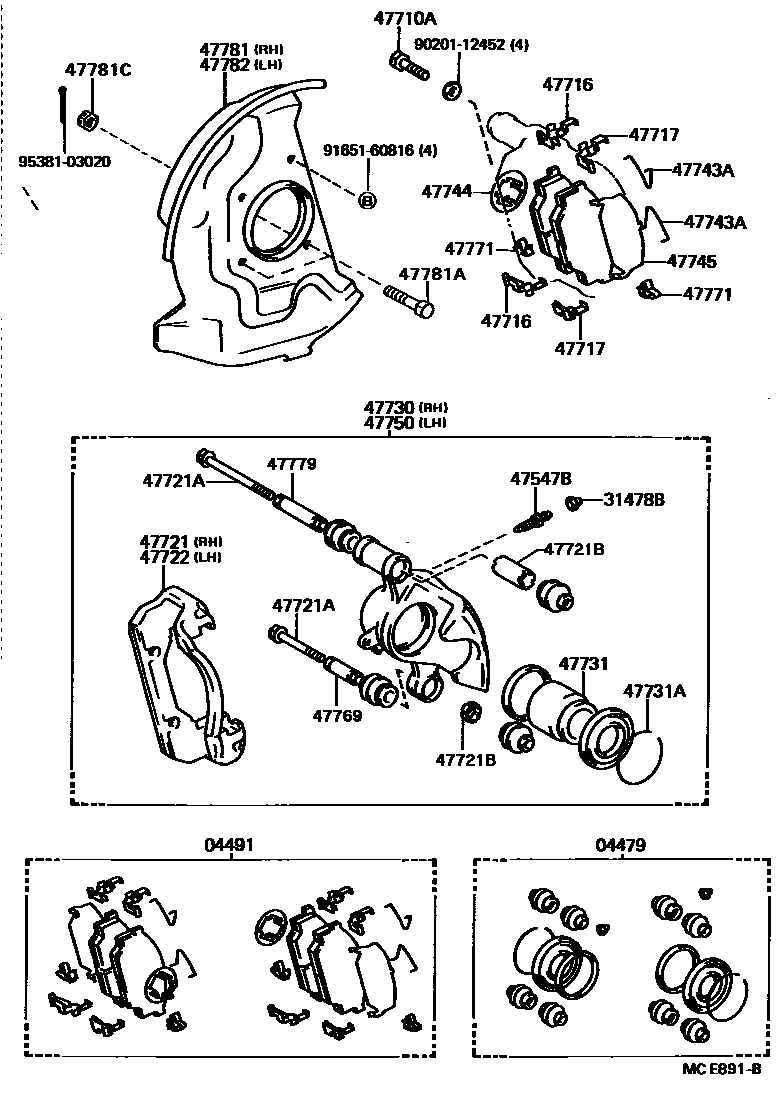

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-40010iLH51,61,71,YH5#,6#,73198708-199610

sub04479-35050

04491PAD KIT, DISC BRAKE, FRONT

main04491-26131iYH53,60,63..SA198808-199505

sub04465-26280

main04491-26141iLH51,61,71,YH5#,61,63,73..ARL,GEN198708-199505

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iLH51,61,71,YH5#,6#,73198708-199610

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010×2iLH51,61,71,YH5#,6#,73198708-199610

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12132×4iYH53,6#199002-199610

*12-1.25P-31X20

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-26040×4iYH53,6#199109-199610

main47716-40010×4iLH51,61,71,YH5#,6#,73198708-199109

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-26010×4iYH53,6#199109-199610

main47717-40010×4iLH51,61,71,YH5#,6#,73198708-199109

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-26050iYH53,63199610

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-10014×2iYH53,63199610

*10-1.25PX65.5-30

main90119-10249×2iYH53,63199610

*10-1.25PX95.5-30

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-16004×2iLH51,61,71,YH5#,6#,73198708-199002

main90387-16005×2iLH51,61,71,YH5#,6#,73198708-199002

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-26050iLH51,61,71,YH5#,6#,73198708-199610

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-26080iLH51,61,71,YH5#,6#,73198708-199610

47731PISTON, FRONT DISC BRAKE

main47731-40010×2iLH51,61,71,YH5#,6#,73198708-199610

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-86005×2iYH53,63199711

main90522-70001×2iLH51,61,71,YH5#,6#,73198808-199711

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-40020×4iLH51,61,71,YH5#,6#,73198708-199610

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-26020×2iLH51,61,71,YH5#,6#,73198708-199610

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-40020×2iLH51,61,71,YH5#,6#,73198708-199610

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-26080iLH51,61,71,YH5#,6#,73198708-199610

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-40010×2iLH51,61,71,YH5#,6#,73198708-199610

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-35010×4iLH51,61,71,YH5#,61,63,73..ARL,GEN198708-198908

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-40010×2iLH51,61,71,YH5#,6#,73198708-199610

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-26040iLH51,61,71,YH5#,6#,73198708-199610

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90102-12005×4iLH51,61,71,YH5#,6#,73198708

47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90171-12004×4iLH51,61,71,YH5#,6#,73198808-199608

main90171-12011×4iYH53,63199608

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-26040iLH51,61,71,YH5#,6#,73198708-199610

9020112452

main90201-12452

9165160816

main91651-60816

9538103020

main95381-03020

28 parts on this diagram · 2 diagrams in section
