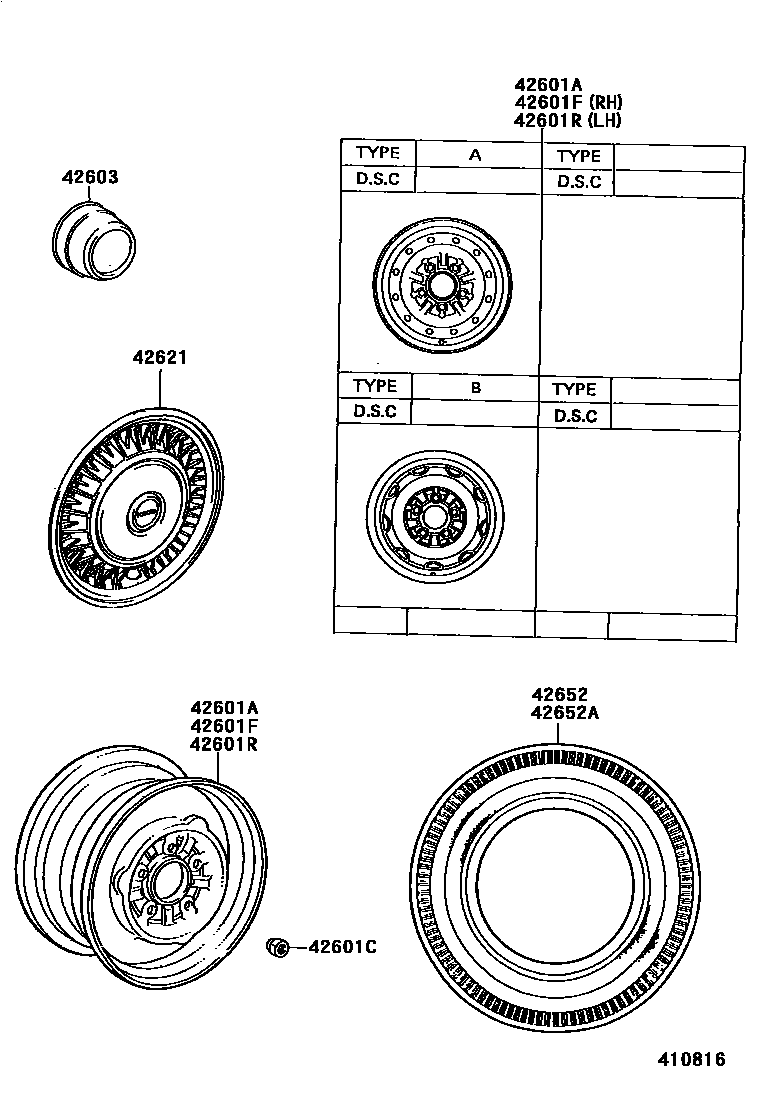

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601AWHEEL, DISC (FOR SPARE)

main42601-26180-01iYH51,61..LHD..COM..SRF198708-198908

14X4.5J,BLACK,045 ,148 ,153 ,391 ,541 ,557 ,6A9 ,6H3 ,8B2,TYPE A

main42601-26240-03iYH63199206

5J-14, #,SILVER,TYPE A

main42601-26250iLH71,YH73198708-198908

5.5J-14, #,TYPE B

main42601-26250-03iYH51..RHD..03S198708-198908

5.5J-14, #,SILVER,TYPE B

main42601-26360-03iYH53..GL198908-198910

14X5.5J, #,SILVER,045 ,148 ,153 ,391 ,541 ,557 ,6A9 ,6H3 ,8B2,TYPE A

42601CNUT, HUB (FOR AXLE)

main90942-01007×20iYH53..GL198808-198908

main90942-01021×20iYH53,60,63..STD..SA198808

main90942-01059×20iLH51,61,71,YH5#,61,63,73..STD..(ARL,GEN)198708-198908

42601FWHEEL, DISC (FOR FRONT)

main42601-26180-01×2iYH51,61..LHD..COM..SRF198708-198908

14X4.5J,BLACK,045 ,148 ,153 ,391 ,541 ,557 ,6A9 ,6H3 ,8B2,TYPE A

main42601-26240-03×2iYH63199206

5J-14, #,SILVER,TYPE A

main42601-26250×2iLH71,YH73198708-198908

5.5J-14, #,TYPE B

main42601-26250-03×2iYH51..RHD..03S198708-198908

5.5J-14, #,SILVER,TYPE B

main42601-26360-03×2iYH53..GL198908-198910

14X5.5J, #,SILVER,045 ,148 ,153 ,391 ,541 ,557 ,6A9 ,6H3 ,8B2,TYPE A

42601RWHEEL, DISC (FOR REAR)

main42601-26180-01×2iYH51,61..LHD..COM..SRF198708-198908

14X4.5J,BLACK,045 ,148 ,153 ,391 ,541 ,557 ,6A9 ,6H3 ,8B2,TYPE A

main42601-26240-03×2iLH51,61,YH51,6#..GEN,SA198708-199206

5J-14, #,SILVER,TYPE A

main42601-26250×2iLH71,YH73198708-198908

5.5J-14, #,TYPE B

main42601-26250-03×2iYH51..RHD..03S198708-198908

5.5J-14, #,SILVER,TYPE B

main42601-26360-03×2iYH53..GL198908-198910

14X5.5J, #,SILVER,045 ,148 ,153 ,391 ,541 ,557 ,6A9 ,6H3 ,8B2,TYPE A

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-26070×4iLH51,61,71,YH5#,61,63,73..STD..(ARL,GEN)198708-198908

*STE

main42603-26080×4iYH53,60,63..STD..SA198808

42621CAP, WHEEL

main42621-26160×4iYH53..GL199206-199610

42652TIRE

main42605-26080×2iLH51,61,YH51,61,63..GEN198708-198908

185R14 6PR,*D/L,*T/Y

main42605-26110×4iYH51..RHD..03S198708-199510

185R14 8PR,*D/L,*T/Y

sub42605-26111

main42605-26140×2iYH63..GEN;LH51,61,YH51,60,61..V..(GEN,SA)198708-199510

6.00-14-6,W(TUBE)

main42605-26150×2iYH63..GEN;LH51,61,YH51,60,61..V..(GEN,SA)198708-199510

6.00-14-8,W(TUBE)

main42605-26160×4iLH51,61,YH51,61..COM198708-198908

6.50-14-8,W(TUBE)

main42605-26170×2iLH51,61,YH51,61,63..GEN198708-198908

185R14-6,W(TUBE)

main42605-26180×2iLH51,61,YH51,61,63..GEN198708-198908

185R14-8,W/TUBE,*B/S

sub42605-26181

42652ATIRE (FOR SPARE)

main42605-26080iYH53..SA198808-199712

185R14 6PR,*D/L,*T/Y

main42605-26110iYH51..RHD..03S198708-198908

185R14 8PR,*D/L,*T/Y

sub42605-26111

main42605-26150iYH63..GEN;LH51,61,YH51,60,61..V..(GEN,SA)198708-199510

6.00-14-8,W(TUBE)

main42605-26160iLH51,61,YH51,61..COM198708-198908

6.50-14-8,W(TUBE)

main42605-26170iYH53..SA198808-199712

185R14-6,W(TUBE)

main42605-26180iYH51..RHD..03S198708-198908

185R14-8,W/TUBE,*B/S

sub42605-26181

8 parts on this diagram · 2 diagrams in section
