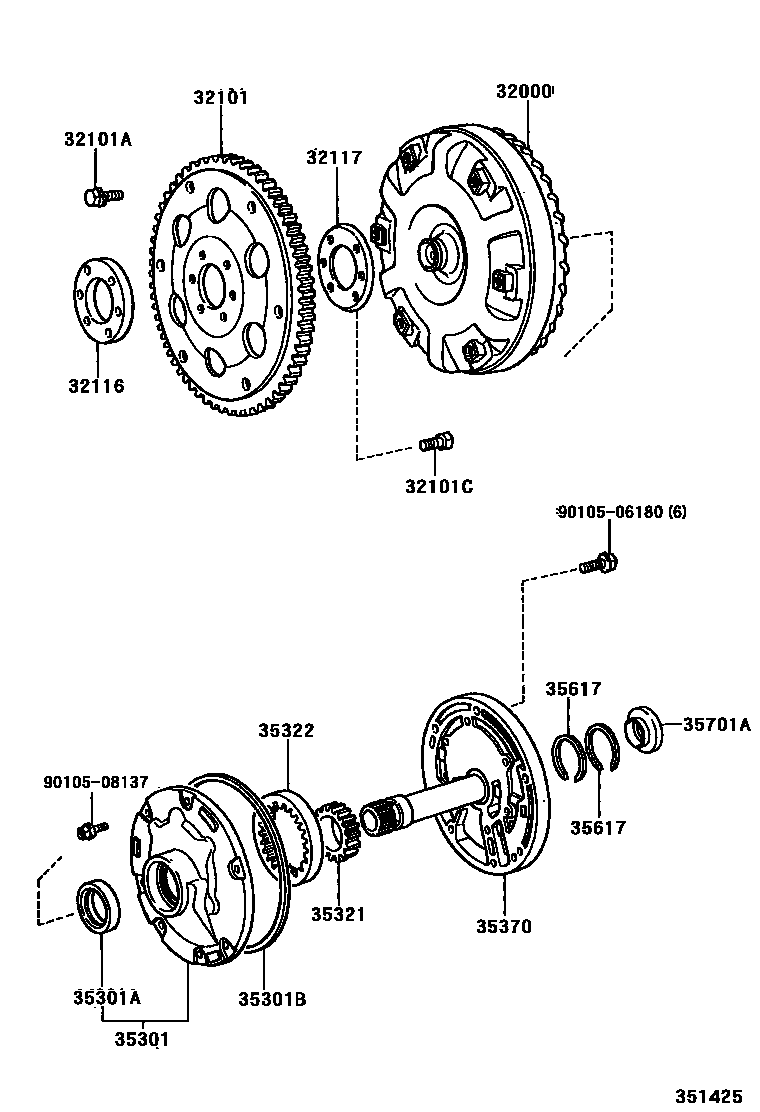

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-22051iYH53,63..ATM198708-199203

main32000-26010iLH51,61..4HC198801-198908

main32000-28011iYH61..4HC198801-198908

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-28010iYH53,61,63..ATM198708-199203

main32101-30051iLH51,61..4HC198708-198805

main32101-30052iLH51,61..4HC198805-198908

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iYH53,61,63..ATM198708-199203

*8-1.25PX12-8.4

main90119-08498×5iLH51,61,YH53,61,63..ATM198708-199203

*8-1.25PX12-8

main90119-08554iLH51,61,YH53,61,63..ATM198708-199203

*8-1.25PX12-36

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10046×6iYH53,61,63..ATM198708-199203

*10-1.25PX23-15.5

main90105-12014×8iLH51,61..4HC198805-198908

32116SPACER, DRIVE PLATE, FRONT

main32116-28010iYH53,61,63..ATM198708-199203

main32116-30020iLH51,61..4HC198708-198805

main32116-35010iLH51,61..4HC198805-198908

32117SPACER, DRIVE PLATE, REAR

main32117-20030iYH53,61,63..ATM198708-199203

main32117-30020iLH51,61..4HC198708-198805

main32117-35010iLH51,61..4HC198805-198908

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-14010iLH51,61,YH53,61,63..ATM198708-199203

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iLH51,61,YH53,61,63..ATM198708-199203

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99010iLH51,61,YH53,61,63..ATM198708-199203

35321GEAR, FRONT OIL PUMP DRIVE

main35321-14010iLH51,61,YH53,61,63..ATM198708-199203

T=17.286-17.235

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-14010iLH51,61,YH53,61,63..ATM198708-199203

T=17.286-17.235

35370SHAFT ASSY, STATOR

main35370-14012iLH51,61,YH53,61,63..ATM198708-199203

35617RING, CLUTCH DRUM OIL SEAL

main35617-16010×2iLH51,61,YH53,61,63..ATM198708-198912

main35617-32010×2iYH53..4HC198912-199203

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-25003iLH51,61,YH53,63..ATM198708-198808

9010506180

main90105-06180

9010508137

main90105-08137

16 parts on this diagram · 1 diagram in section
